ESE-23 Series

Catalog

SWITCH DETECTOR SPDT 0.01A 5V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Actuator Type	Switch Function	Voltage Rating - DC	Operating Position [x]	Operating Position [x]	Mounting Type	Electrical Life	Circuit	Operating Force	Features

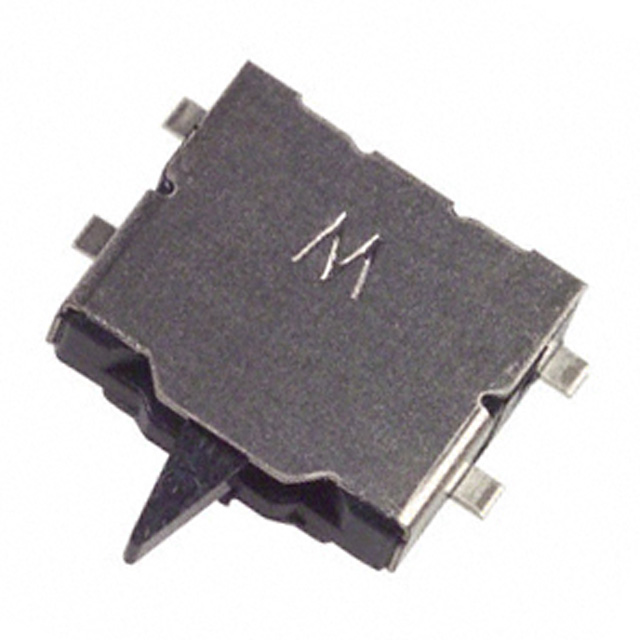

Panasonic Industrial Automation Sales ESE-23F001	-10 °C	60 °C	10 mA	SMD (SMT) Tab	Angled Toggle (Detector)	Mom-Off-Mom	5 V	2.2 mm	0.087 in	Surface Mount Right Angle	50000 Cycles	SPDT	30 gf

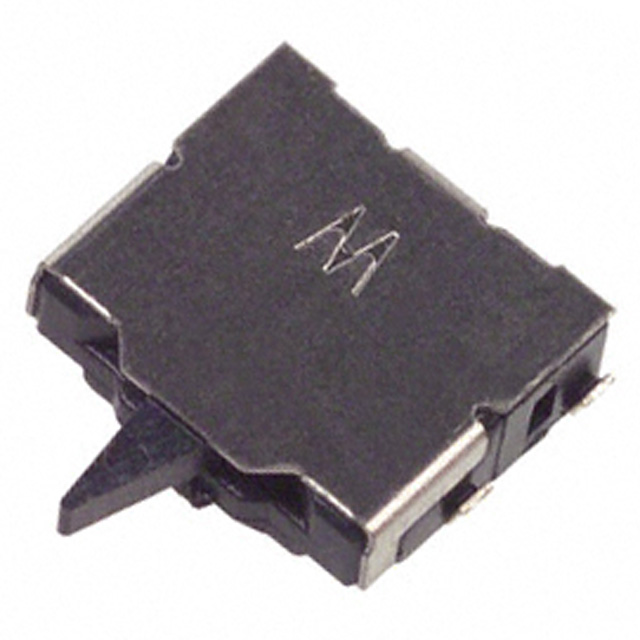

Panasonic Industrial Automation Sales ESE-23J005	-10 °C	60 °C	10 mA	J Lead	Angled Toggle (Detector)	Mom-Off-Mom	5 V	2.2 mm	0.087 in	Surface Mount Right Angle	50000 Cycles	SPDT	30 gf

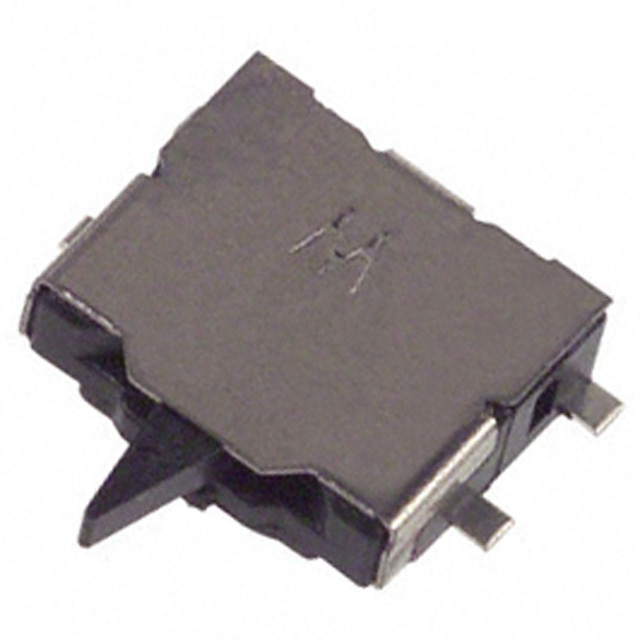

Panasonic Industrial Automation Sales ESE-23F105	-10 °C	60 °C	10 mA	SMD (SMT) Tab	Angled Toggle (Detector)	Mom-Off-Mom	5 V	2.2 mm	0.087 in	Surface Mount Right Angle	50000 Cycles	SPDT	30 gf	Board Guide
Panasonic Industrial Automation Sales ESE-23F005	-10 °C	60 °C	10 mA	SMD (SMT) Tab	Angled Toggle (Detector)	Mom-Off-Mom	5 V	2.2 mm	0.087 in	Surface Mount Right Angle	50000 Cycles	SPDT	30 gf
Panasonic Industrial Automation Sales ESE-23F101	-10 °C	60 °C	10 mA	SMD (SMT) Tab	Angled Toggle (Detector)	Mom-Off-Mom	5 V	2.2 mm	0.087 in	Surface Mount Right Angle	50000 Cycles	SPDT	30 gf	Board Guide
Panasonic Industrial Automation Sales ESE-23J105	-10 °C	60 °C	10 mA	J Lead	Angled Toggle (Detector)	Mom-Off-Mom	5 V	2.2 mm	0.087 in	Surface Mount Right Angle	50000 Cycles	SPDT	30 gf	Board Guide
