1337586 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

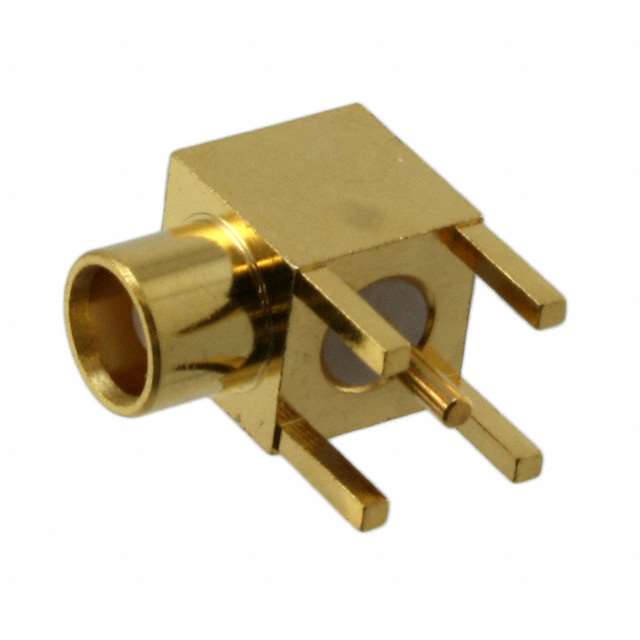

CONN MCX JACK R/A 50 OHM PCB
| Part | Dielectric Material | Voltage Rating | Body Finish | Center Contact Plating | Mating Cycles | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Contact Termination | Connector Style | Center Contact Material | Fastening Type | Connector Type | Number of Ports | Impedance | Housing Color | Shield Termination | Mounting Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | 335 V | Gold | Gold | 500 | Brass | -65 ░C | 165 °C | 0.1 dB | Solder | MCX | Phosphor Bronze | Snap-On | Female Socket Jack | 1 | 50 Ohms | Gold | Solder | Right Angle Through Hole | 6000 MHz |
