G630 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN PCI EXP FMALE 164POS 0.039

Part	Material - Insulation	Pitch	Pitch	Card Type	Termination	Read Out	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Card Thickness	Card Thickness	Color	Features	Gender	Contact Material	Number of Positions	Contact Finish	Mounting Type	Flange Feature	Flange Feature	Flange Feature

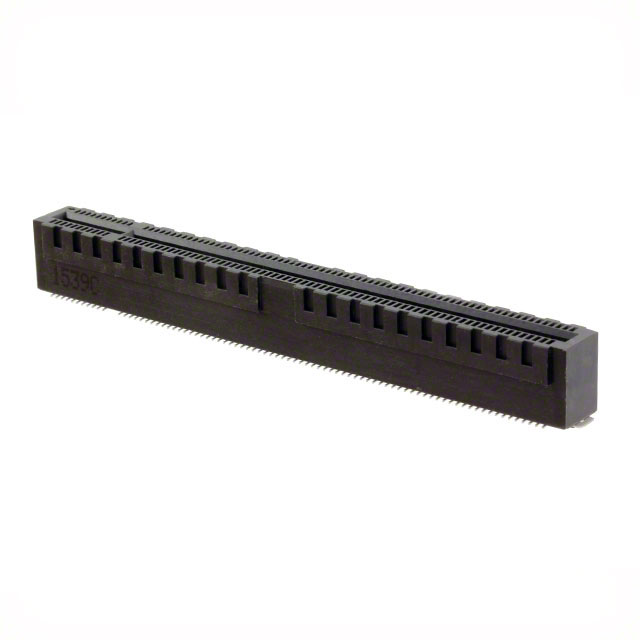

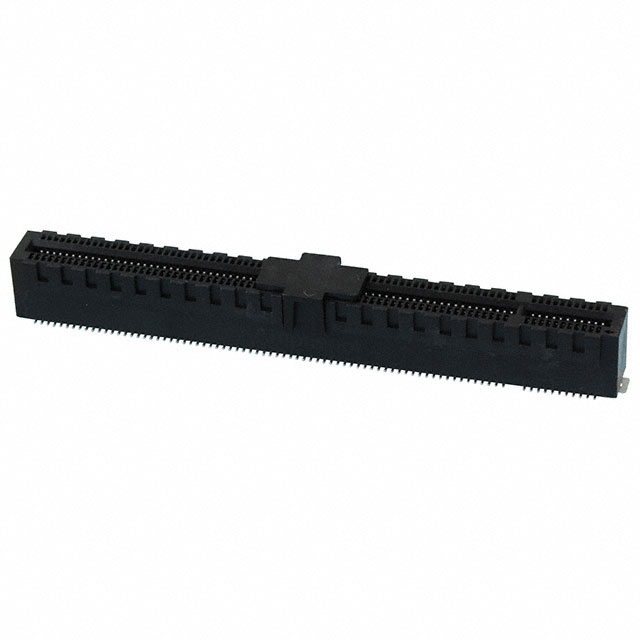

Amphenol ICC (Commercial Products) G630HAA2621EU	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in	PCI Express™	Solder	Dual	30 Áin	0.76 Ám	2	1.57 mm	0.062 in	Black	Board Guide Cap Locking Ramp	Female	Copper Alloy	164	Gold	Surface Mount
Amphenol ICC (Commercial Products) G630HAA1621EU	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in	PCI Express™	Solder	Dual	15 µin	0.38 µm	2	1.57 mm	0.062 in	Black	Board Guide Cap Locking Ramp	Female	Copper Alloy	164	Gold	Surface Mount

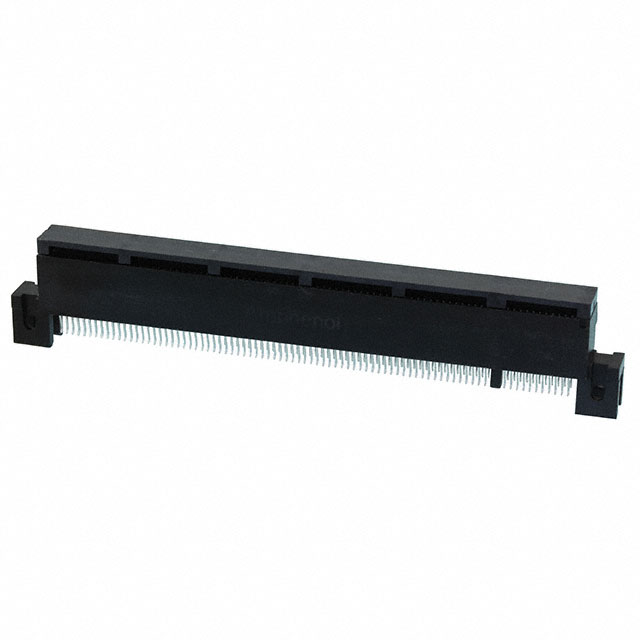

Amphenol ICC (Commercial Products) G630HAA12246EU	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in	PCI Express™	Solder	Dual	15 µin	0.38 µm	2	1.57 mm	0.062 in	Black	Card Extender Locking Ramp	Female	Copper Alloy	164	Gold	Board Edge Straddle Mount	Straddle Mount Opening Unthreaded	2 mm	0.079 "

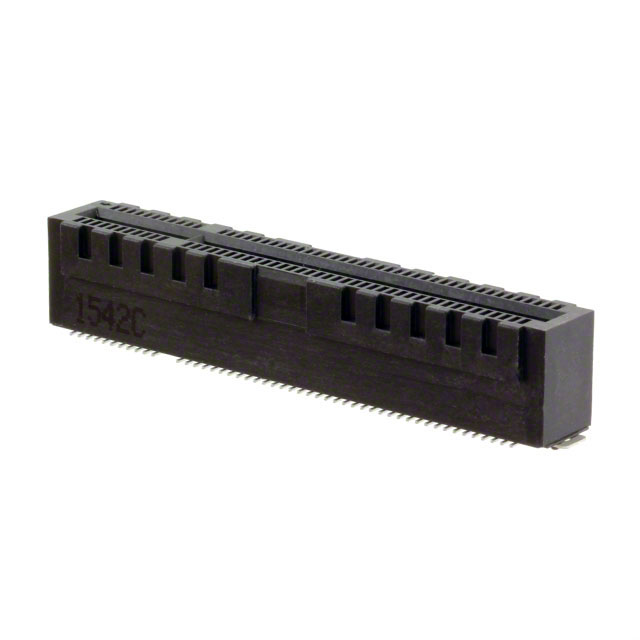

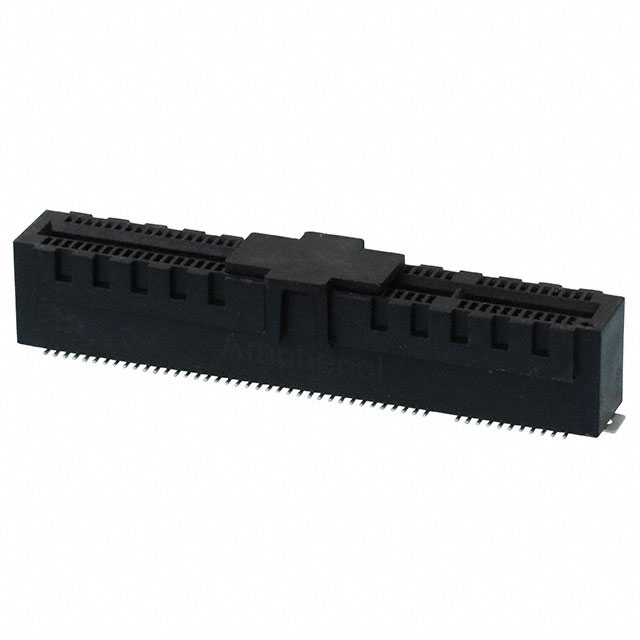

Amphenol ICC (Commercial Products) G630H982621EU	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in	PCI Express™	Solder	Dual	30 Áin	0.76 Ám	2	1.57 mm	0.062 in	Black	Locking Ramp	Female	Copper Alloy	98	Gold	Surface Mount

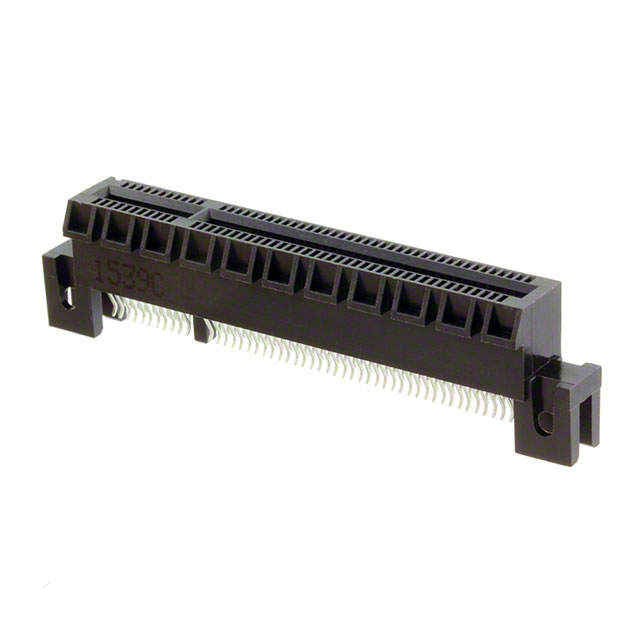

Amphenol ICC (Commercial Products) G630H981224BEU	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in	PCI Express™	Solder	Dual	15 µin	0.38 µm	2	2.36 mm	0.093 "	Black	Card Extender Locking Ramp	Female	Copper Alloy	98	Gold	Board Edge Straddle Mount	Straddle Mount Opening Unthreaded	2 mm	0.079 "
Amphenol ICC (Commercial Products) G630HAA2224AEU	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in	PCI Express™	Solder	Dual	30 Áin	0.76 Ám	2	2.36 mm	0.093 "	Black	Card Extender Locking Ramp	Female	Copper Alloy	164	Gold	Board Edge Straddle Mount	Straddle Mount Opening Unthreaded	2 mm	0.079 "
