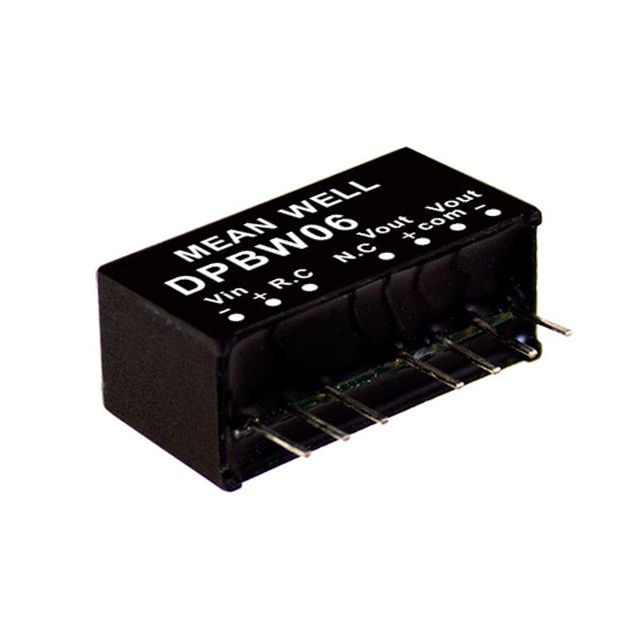

DPBW06 Series

Catalog

DC DC CONVERTER +/-5V 6W

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Current - Output (Max) [Max]	Current - Output (Max) [Min]	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output 2	Applications	Efficiency	Voltage - Isolation	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Type	Voltage - Input (Max) [Max]	Mounting Type	Package / Case	Features	Current - Output (Max)
MEAN WELL USA Inc. DPBW06F-05	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	6 W	600 mA	600 mA	2	9 V	-5 V	ITE (Commercial)	86 %	1.5 kV	Active Low Enable	-40 °C	85 °C	5 V	Isolated Module	36 V	Through Hole	8-SIP Module 7 Leads	OCP Remote On/Off SCP
MEAN WELL USA Inc. DPBW06F-15	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	6 W			2	9 V	-15 V	ITE (Commercial)	88 %	1.5 kV	Active Low Enable	-40 °C	85 °C	15 V	Isolated Module	36 V	Through Hole	8-SIP Module 7 Leads	OCP Remote On/Off SCP
MEAN WELL USA Inc. DPBW06G-12	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	6 W			2	18 V	-12 V	ITE (Commercial)	89 %	1.5 kV	Active Low Enable	-40 °C	85 °C	12 V	Isolated Module	75 V	Through Hole	8-SIP Module 7 Leads	OCP Remote On/Off SCP	250 mA
MEAN WELL USA Inc. DPBW06F-12	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	6 W			2	9 V	-12 V	ITE (Commercial)	88 %	1.5 kV	Active Low Enable	-40 °C	85 °C	12 V	Isolated Module	36 V	Through Hole	8-SIP Module 7 Leads	OCP Remote On/Off SCP	250 mA
