EC12.2201 Series

Catalog

AC POWER ENTRY MODULES EC12 CONNECTOR FILTER C20 16A M5

Part	Switch Features	Connector Type	Ingress Protection	Connector Style	Current Rating - Appliance Inlet	Current Rating - Filter	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Material Flammability Rating	Approval Agency	Filter Type	Features	Accomodates a Fuse	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Termination	Termination

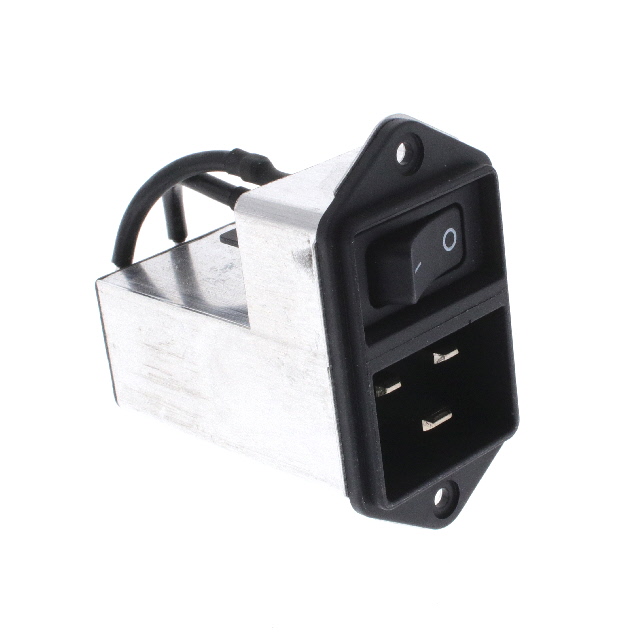

SCHURTER Inc. EC12.2201.001.21	Switch On-Off	Receptacle Male Blades - Module	IP40	IEC 320-C20	16 A	16 A	Screw	33.9 mm	48 mm	Flange Panel Mount	UL94 V-0	CQC cURus ENEC	Filtered (EMI RFI) - Commercial Medical	Shielded Terminating Cover V-Lock Notch		8 mm	0.315 in	250 VAC

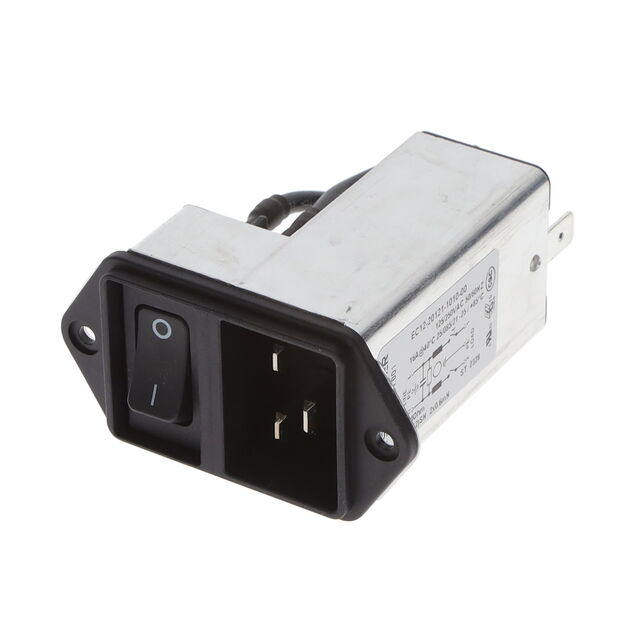

SCHURTER Inc. EC12.2201.001	Switch On-Off	Receptacle Male Blades - Module	IP40	IEC 320-C20	16 A	16 A	Quick Connect	48 mm	33.9 mm	Flange Panel Mount	UL94 V-0	CQC cURus ENEC	Filtered (EMI RFI) - Commercial Medical	Shielded				250 VAC	6.3 mm	0.25 "
