300 Series
Manufacturer: E-Switch
Beta
⌘K
ROCKER SWITCHES 5A 120VAC / 28VDC (ON)-OFF-(ON) PC MNT
| Part | Electrical Life | Actuator Marking | Voltage Rating - DC | Color - Actuator/Cap | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Actuator Type | Voltage Rating - AC | Circuit | Features | Termination Style | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | No Marking | 28 V | Black | Mom-Off-Mom | 85 °C | -30 ░C | Through Hole | Paddle | 120 V | SPDT | Epoxy Sealed Terminals | PC Pin | 5 A | |

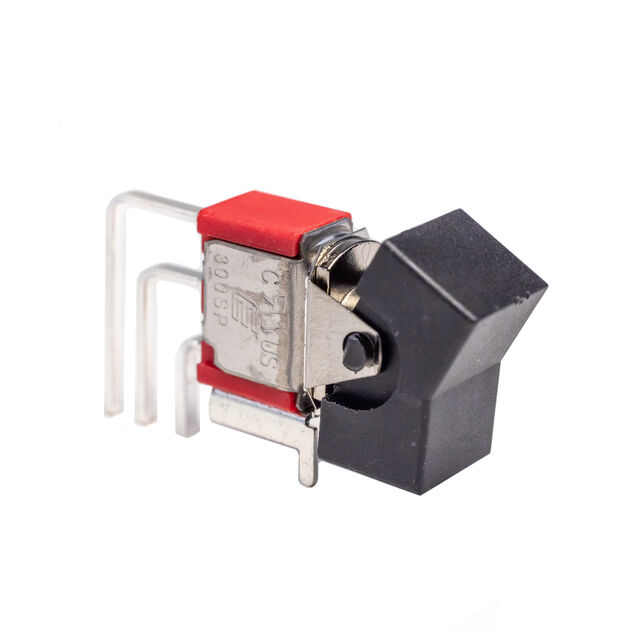

 E-Switch | No Marking | 28 V | Black | Mom-Off-Mom | 85 °C | -30 ░C | Right Angle Through Hole Vertical | Paddle | 120 V | SPDT | Epoxy Sealed Terminals | PC Pin | 5 A | |
E-Switch | No Marking | 20 V | Black | On-Mom | 85 °C | -30 ░C | Through Hole | Concave | 20 V | SPDT | Epoxy Sealed Terminals | PC Pin | 0.4 VA | |
E-Switch | No Marking | 28 V | Black | Mom-Off-Mom | 85 °C | -30 ░C | Through Hole | Paddle | 120 V | SPDT | Epoxy Sealed Terminals | PC Pin | 5 A | |
E-Switch | No Marking | 28 V | Black | Mom-Off-Mom | 85 °C | -30 ░C | Through Hole | Concave | 120 V | DPDT | Epoxy Sealed Terminals | PC Pin | 5 A | |
E-Switch | No Marking | 20 V | Black | On-On | 85 °C | -30 ░C | Through Hole | Concave | 20 V | SPDT | Epoxy Sealed Terminals | PC Pin | 0.4 VA | |
E-Switch | No Marking | 20 V | Black | Mom-Off-Mom | 85 °C | -30 ░C | Right Angle Through Hole | Concave | 20 V | SPDT | Epoxy Sealed Terminals | PC Pin | 0.4 VA | |
E-Switch | No Marking | 20 V | Black | On-Mom | 85 °C | -30 ░C | Right Angle Through Hole Vertical | Concave | 20 V | SPDT | Epoxy Sealed Terminals | PC Pin | 0.4 VA | |
E-Switch | No Marking | 20 V | Black | On-Off-On | 85 °C | -30 ░C | Through Hole | Concave | 20 V | DPDT | Epoxy Sealed Terminals | PC Pin | 0.4 VA | |
E-Switch | No Marking | 28 V | Black | On-On-On | 85 °C | -30 ░C | Through Hole | Concave | 120 V | SP3T | Jumper needed to achieve triple throw | PC Pin | 5 A |
