LHS-07 Series
Manufacturer: Adam Tech
Beta
⌘K

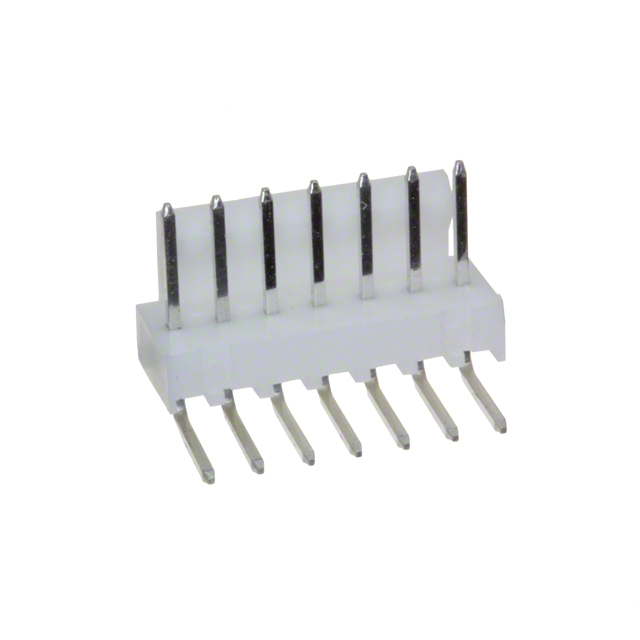

CONN HEADER R/A 7POS 2.54MM
| Part | Fastening Type | Mounting Type | Material Flammability Rating | Shrouding | Connector Type | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Contact Material | Style | Number of Positions Loaded | Contact Finish - Post | Termination | Insulation Color | Voltage Rating | Insulation Height [z] | Insulation Height [z] | Number of Rows | Contact Length - Mating | Contact Length - Mating | Contact Shape | Pitch - Mating | Pitch - Mating | Insulation Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Friction Lock | Right Angle Through Hole | UL94 V-0 | Shrouded - 1 Wall | Header | Male Pin | 85 °C | -25 °C | 0.13 " | 3.3 mm | 3 A | Brass | Board to Cable/Wire | All | Tin | Solder | White | 250 VAC | 0.252 " | 6.4 mm | 1 | 6.7 mm | 0.264 in | Square | 0.1 " | 2.54 mm | Nylon 6/6 Polyamide (PA66) | 7 |
