9LG1224 Series

Catalog

FAN AXIAL 119X38MM 24VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Material - Blade	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Fan Type	Noise	Weight [custom]	Weight [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Approval Agency	Width [y]	Air Flow	Air Flow	Power (Watts)	Termination	Static Pressure	Static Pressure	Bearing Type	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	RPM

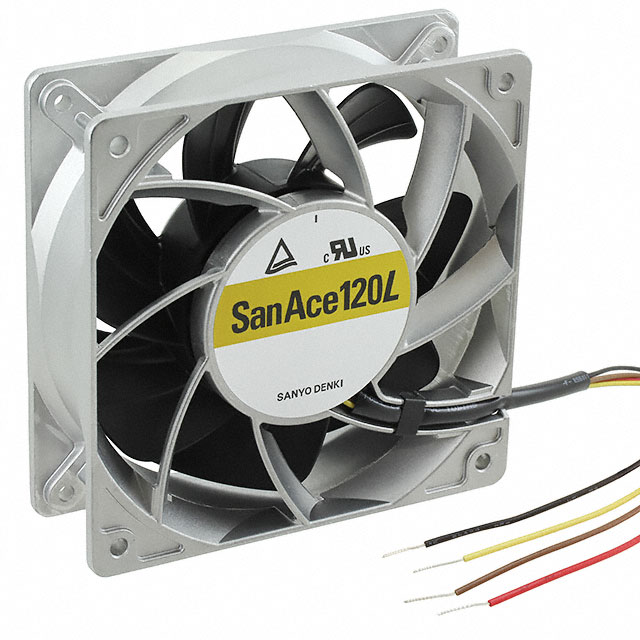

Sanyo Denki America Inc. 9LG1224P1H001	0.7 A	Aluminum	Plastic	180000 Hrs	30 V	15 VDC	24 VDC	Tubeaxial	54 dB	420.03 g	0.926 lb	-20 ░C	70 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CSA TUV UL	38 mm	4.94 m³/min	176.6 CFM	16.8 W	4 Wire Leads	0.76 in H2O	189.3 Pa	Ball	Square	119 mm	119 mm

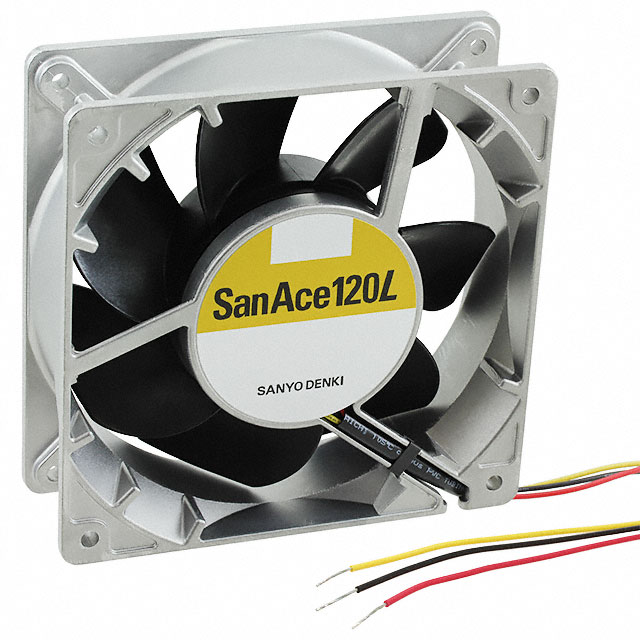

Sanyo Denki America Inc. 9LG1224M1001		Aluminum	Plastic				24 VDC	Tubeaxial						Locked Rotor Protection Speed Sensor (Tach)		38 mm			2.64 W	3 Wire Leads			Ball		120 mm		120 mm

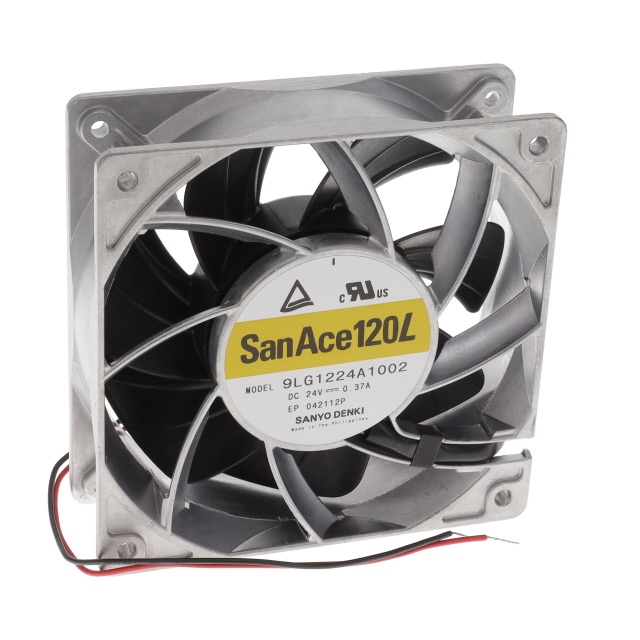

Sanyo Denki America Inc. 9LG1224A1002		Aluminum	Plastic				24 VDC	Tubeaxial								38 mm			8.88 W	2 Wire Leads			Ball		120 mm		120 mm
Sanyo Denki America Inc. 9LG1224P1S001	1.1 A	Aluminum	Plastic	180000 Hrs	30 V	15 VDC	24 VDC	Tubeaxial	58 dB(A)	420.03 g	0.926 lb	-20 ░C	70 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CSA TUV UL	38 mm	5.93 m³/min	211.8 CFM	26.4 W	4 Wire Leads	1.08 in H2O	269 Pa	Ball	Square	119 mm	119 mm		5600 RPM
Sanyo Denki America Inc. 9LG1224F1001		Aluminum	Plastic				24 VDC	Tubeaxial						Locked Rotor Protection Speed Sensor (Tach)		38 mm			4.56 W	3 Wire Leads			Ball		120 mm		120 mm
Sanyo Denki America Inc. 9LG1224G1D001	1.6 A	Aluminum	Plastic	180000 Hrs	30 V	15 VDC	24 VDC	Tubeaxial	62 dB(A)	420.03 g	0.926 lb	-20 ░C	70 °C	Locked Rotor Sensor	CSA TUV UL	38 mm	6.92 m³/min	247 CFM	38.4 W	3 Wire Leads	1.48 in H2O	368.7 Pa	Ball		120 mm		120 mm	6550 RPM
Sanyo Denki America Inc. 9LG1224F1D001		Aluminum	Plastic				24 VDC	Tubeaxial						Locked Rotor Sensor		38 mm			4.56 W	3 Wire Leads			Ball		120 mm		120 mm
Sanyo Denki America Inc. 9LG1224F1002		Aluminum	Plastic				24 VDC	Tubeaxial								38 mm			4.56 W	2 Wire Leads			Ball		120 mm		120 mm
Sanyo Denki America Inc. 9LG1224H1D001	0.7 A	Aluminum	Plastic	180000 Hrs	30 V	15 VDC	24 VDC	Tubeaxial	54 dB	420.03 g	0.926 lb	-20 ░C	70 °C	Locked Rotor Sensor	CSA TUV UL	38 mm	4.94 m³/min	176.6 CFM	16.8 W	3 Wire Leads	0.76 in H2O	189.3 Pa	Ball		120 mm		120 mm
