S Series Series

Slide Switch Phone Connectors 3.5mm Locking Blk Body Nickel Pin

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Slide Switch Phone Connectors 3.5mm Locking Blk Body Nickel Pin

Part	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Material	Termination Style	Circuit	Actuator Type	Contact Material	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Contact Timing	Contact Finish	Actuator Length [x]	Voltage Rating - AC	Mounting Type	Features
Littelfuse/Commercial Vehicle Products S201131SS03Q	4.57 mm	65 °C	-30 ░C	On-Off	Nylon 6/6 Polyamide (PA66)	Solder Lug	DPST	Screwdriver Slot	Copper	1 A 6 A	10000 Cycles	125 VDC	Not Specified	Silver	1.27 mm	125 V
Littelfuse/Commercial Vehicle Products S602031SS03Q	4.57 mm	65 °C	-30 ░C	On-On	Nylon 6/6 Polyamide (PA66)	Solder Lug	DPDT	Standard	Copper	1 A 12 A	10000 Cycles	125 VDC	Not Specified	Silver	8.51 mm	125 V
Littelfuse/Commercial Vehicle Products S701C22S207Q	4.57 mm	65 °C	-30 ░C	On-Off	Nylon 6/6 Polyamide (PA66)	Quick Connect - 0.110" (2.8mm)	SPST	Snap on Cap	Copper	15 A	10000 Cycles		Not Specified	Silver	5.08 mm	125 V	Panel Mount Snap-In	Black Actuator
Littelfuse/Commercial Vehicle Products S202031SS03Q	4.57 mm	65 °C	-30 ░C	On-On	Nylon 6/6 Polyamide (PA66)	Solder Lug	DPDT	Standard	Copper	1 A 6 A	10000 Cycles	125 VDC	Not Specified	Silver	8.51 mm	125 V
Littelfuse/Commercial Vehicle Products S202031MS04Q	4.57 mm	65 °C	-30 ░C	On-On	Nylon 6/6 Polyamide (PA66)	PC Pin	DPDT	Standard	Copper	1 A 6 A	10000 Cycles	125 VDC	Not Specified	Silver	8.51 mm	125 V	Through Hole

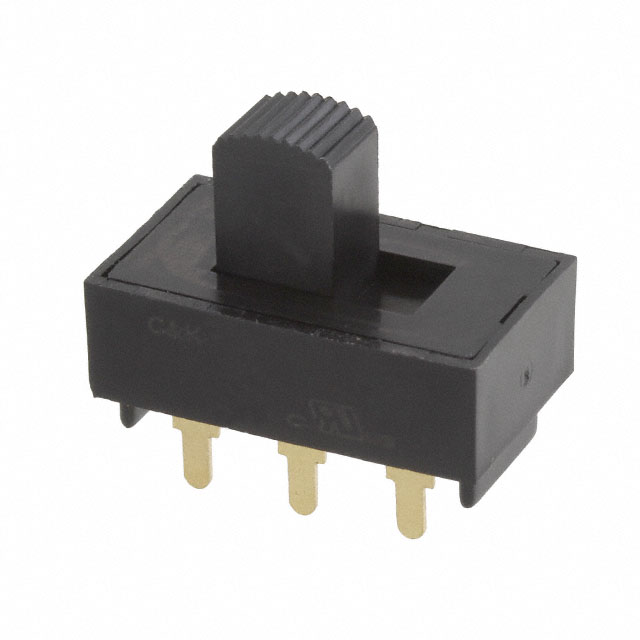

Littelfuse/Commercial Vehicle Products S202031MS02G	4.57 mm	65 °C	-30 ░C	On-On	Nylon 6/6 Polyamide (PA66)	PC Pin	DPDT	Standard	Copper	1 A 6 A	10000 Cycles	125 VDC	Not Specified	Gold	8.51 mm	125 V	Through Hole
Littelfuse/Commercial Vehicle Products S202091MS02G	4.57 mm	65 °C	-30 ░C	On-On	Nylon 6/6 Polyamide (PA66)	PC Pin	DPDT	Standard	Copper	1 A 6 A	10000 Cycles	125 VDC	Not Specified	Gold	6.35 mm	125 V	Through Hole
Littelfuse/Commercial Vehicle Products S202131MS02Q	4.57 mm	65 °C	-30 ░C	On-On (Line Voltage Selector)	Nylon 6/6 Polyamide (PA66)	PC Pin	DPDT	Screwdriver Slot	Copper	1 A 6 A	10000 Cycles	125 VDC	Not Specified	Silver	1.27 mm	125 V	Through Hole	No Marking
Littelfuse/Commercial Vehicle Products S101031SS03Q	4.57 mm	65 °C	-30 ░C	On-Off	Nylon 6/6 Polyamide (PA66)	Solder Lug	SPST	Standard	Copper	1 A 6 A	10000 Cycles	125 VDC	Not Specified	Silver	8.51 mm	125 V
Littelfuse/Commercial Vehicle Products S202091SS03Q	4.57 mm	65 °C	-30 ░C	On-On	Nylon 6/6 Polyamide (PA66)	Solder Lug	DPDT	Standard	Copper	1 A 6 A	10000 Cycles	125 VDC	Not Specified	Silver	6.35 mm	125 V

Catalog

Slide Switch Phone Connectors 3.5mm Locking Blk Body Nickel Pin

Key Features

• 6 to 15 Amps

• Enclosed housing

• PC and Snap-in panel mounting

• Reversing option

Description

Designers of portable tools, small appliances and floor care products turn to the S series switch from C&K when they need a resilient, long-lasting switch that can withstand harsh environments. The S series switch comes with enclosed housing, optional reversing option, PC or snap-in panel mounting and a range of 6 to 15 amps.
