TPS65053-Q1 Series

Configurable Integrated Power Management (PMIC) with two DC/DC converters and three LDOs

Catalog

Configurable Integrated Power Management (PMIC) with two DC/DC converters and three LDOs

Part	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Grade	Supplier Device Package	Current - Supply	Package / Case	Applications	Voltage - Output	Outputs and Type	Outputs and Type	Utilized IC / Part	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output	Supplied Contents	Frequency - Switching	Main Purpose	Regulator Topology
Texas Instruments TPS65053IRGERQ1	85 °C	-40 °C	AEC-Q100	Surface Mount	2.5 V	6 V	Automotive	24-VQFN (4x4)	1.25 mA	24-VFQFN Exposed Pad
Texas Instruments TPS65053RGETG4	85 °C	-40 °C		Surface Mount	2.5 V	6 V		24-VQFN (4x4)		24-VFQFN Exposed Pad	Mobile/OMAP™

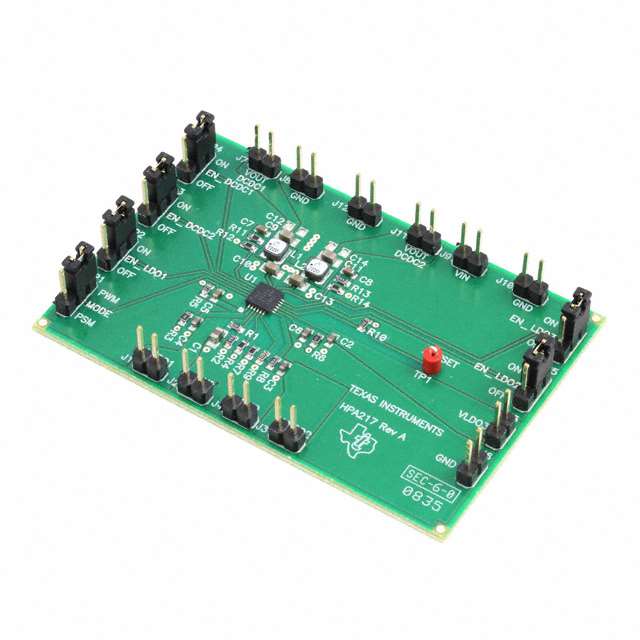

Texas Instruments TPS65053EVM-217												1.3 V 1.6 V 1.8 V 2.85 V 3.3 V	Non-Isolated	5	TPS65053	Fully Populated	6.5 V	2.5 V	1 A 200 mA 400 mA 600 mA	Board(s)	2.25 MHz	DC/DC Step Down with LDO	Buck
Texas Instruments TPS65058RGER	85 °C	-40 °C		Surface Mount	2.5 V	6 V		24-VQFN (4x4)		24-VFQFN Exposed Pad	Handheld/Mobile Devices
Texas Instruments TPS650532RGET	85 °C	-40 °C		Surface Mount	1.5 V	6 V		24-VQFN (4x4)		24-VFQFN Exposed Pad	Mobile/OMAP™

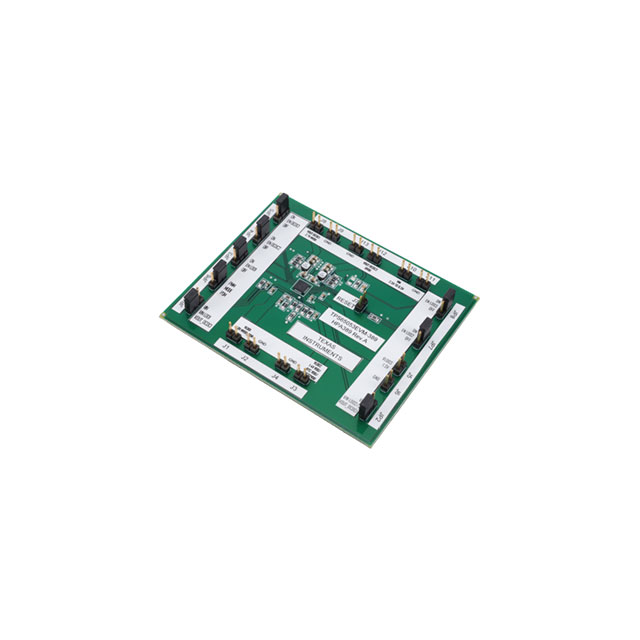

Texas Instruments TPS65053EVM-389												1.3 V 1.4 V 1.8 V 2.7 V	Non-Isolated	5	TPS65053	Fully Populated	6 V	2.5 V	1 A 200 mA 400 mA 600 mA	Board(s)	2.25 MHz	DC/DC Step Down with LDO	Buck
Texas Instruments TPS65053RGET	85 °C	-40 °C		Surface Mount	2.5 V	6 V		24-VQFN (4x4)		24-VFQFN Exposed Pad	Mobile/OMAP™
Texas Instruments TPS65058RGET	85 °C	-40 °C		Surface Mount	2.5 V	6 V		24-VQFN (4x4)		24-VFQFN Exposed Pad	Handheld/Mobile Devices
Texas Instruments TPS650532RGER	85 °C	-40 °C		Surface Mount	1.5 V	6 V		24-VQFN (4x4)		24-VFQFN Exposed Pad	Mobile/OMAP™
Texas Instruments TPS65053RGERG4	85 °C	-40 °C		Surface Mount	2.5 V	6 V		24-VQFN (4x4)		24-VFQFN Exposed Pad	Mobile/OMAP™

Catalog

Configurable Integrated Power Management (PMIC) with two DC/DC converters and three LDOs

Key Features

• Up To 95% EfficiencyOutput Current for DC-DC Converters:TPS65053: DCDC1 = 1 A; DCDC2 = 0.6 ATPS650531, TPS650532: DCDC1 = 1 A;DCDC2 = 1 ATPS65058: DCDC1 = 0.6 A; DCDC2 = 1 ATPS65053, TPS650531, TPS650532: DC-DC ConvertersExternally AdjustableTPS65058: DCDC1 Fixed at 3.3V, DCDC2 selectablebetween 1.8V and 1.2V with Dynamic VoltageScaling for Core Processor SupplyVINRange for DC-DC ConvertersFrom 2.5 V to 6 V2.25-MHz Fixed Frequency OperationPower Save Mode at Light Load Current180° Out-of-Phase OperationOutput Voltage Accuracy in PWM Mode ±1%Total Typical 32-µA Quiescent Current forBoth DC-DC Converters100% Duty Cycle for Lowest DropoutOne General-Purpose 400-mA LDOTwo General-Purpose 200-mA LDOsVINRange for LDOs from 1.5 Vto 6.5 VOutput Voltage for LDOs:TPS65053 / TPS650531 / TPS650532: VLDO1 andVLDO2 Externally Adjustable, VLDO3 = 1.3 V /1.2 V / 1.5 VTPS65058: VLDO1 = 3.3 V, VLDO2 selectablebetween 1.8V and 1.2V, VLDO2 selectablebetween 1.8V and 1.3VUp To 95% EfficiencyOutput Current for DC-DC Converters:TPS65053: DCDC1 = 1 A; DCDC2 = 0.6 ATPS650531, TPS650532: DCDC1 = 1 A;DCDC2 = 1 ATPS65058: DCDC1 = 0.6 A; DCDC2 = 1 ATPS65053, TPS650531, TPS650532: DC-DC ConvertersExternally AdjustableTPS65058: DCDC1 Fixed at 3.3V, DCDC2 selectablebetween 1.8V and 1.2V with Dynamic VoltageScaling for Core Processor SupplyVINRange for DC-DC ConvertersFrom 2.5 V to 6 V2.25-MHz Fixed Frequency OperationPower Save Mode at Light Load Current180° Out-of-Phase OperationOutput Voltage Accuracy in PWM Mode ±1%Total Typical 32-µA Quiescent Current forBoth DC-DC Converters100% Duty Cycle for Lowest DropoutOne General-Purpose 400-mA LDOTwo General-Purpose 200-mA LDOsVINRange for LDOs from 1.5 Vto 6.5 VOutput Voltage for LDOs:TPS65053 / TPS650531 / TPS650532: VLDO1 andVLDO2 Externally Adjustable, VLDO3 = 1.3 V /1.2 V / 1.5 VTPS65058: VLDO1 = 3.3 V, VLDO2 selectablebetween 1.8V and 1.2V, VLDO2 selectablebetween 1.8V and 1.3V

Description

The TPS65053-Q1 device is integrated power management IC (PMIC) for applications powered by one Li-Ion or Li-Polymer cell, which require multiple power rails. The TPS65053-Q1 device provides two highly efficient, 2.25-MHz step-down converters targeted at providing the core voltage and I/O voltage in a processor-based system. Both step-down converters enter a low power mode at light loads for maximum efficiency across the widest possible range of load currents. For low-noise applications, the devices can be forced into fixed-frequency PWM mode by pulling the MODE pin high. Both converters allow the use of small inductors and capacitors to achieve a small solution size. The TPS65053-Q1 device provides an output current of up to 1 A on the DCDC1 converter and up to 0.6 A on the DCDC2 converter. The device also integrates one 400-mA LDO and two 200-mA LDO voltage regulators, which can be turned on and off using separate enable pins on each LDO. Each LDO operates with an input voltage range from 1.5 V to 6.5 V, allowing them to be supplied from one of the step-down converters or directly from the main battery. LDO1 and LDO2 are externally adjustable, while LDO3 has a fixed output voltage of 1.3 V. The TPS65053-Q1 device is available in a small 24-pin leadless package (4-mm × 4-mm VQFN) with a 0,5-mm pitch. The TPS65053-Q1 device is integrated power management IC (PMIC) for applications powered by one Li-Ion or Li-Polymer cell, which require multiple power rails. The TPS65053-Q1 device provides two highly efficient, 2.25-MHz step-down converters targeted at providing the core voltage and I/O voltage in a processor-based system. Both step-down converters enter a low power mode at light loads for maximum efficiency across the widest possible range of load currents. For low-noise applications, the devices can be forced into fixed-frequency PWM mode by pulling the MODE pin high. Both converters allow the use of small inductors and capacitors to achieve a small solution size. The TPS65053-Q1 device provides an output current of up to 1 A on the DCDC1 converter and up to 0.6 A on the DCDC2 converter. The device also integrates one 400-mA LDO and two 200-mA LDO voltage regulators, which can be turned on and off using separate enable pins on each LDO. Each LDO operates with an input voltage range from 1.5 V to 6.5 V, allowing them to be supplied from one of the step-down converters or directly from the main battery. LDO1 and LDO2 are externally adjustable, while LDO3 has a fixed output voltage of 1.3 V. The TPS65053-Q1 device is available in a small 24-pin leadless package (4-mm × 4-mm VQFN) with a 0,5-mm pitch.
