6GK52022 Series
Manufacturer: Siemens
Beta
⌘K

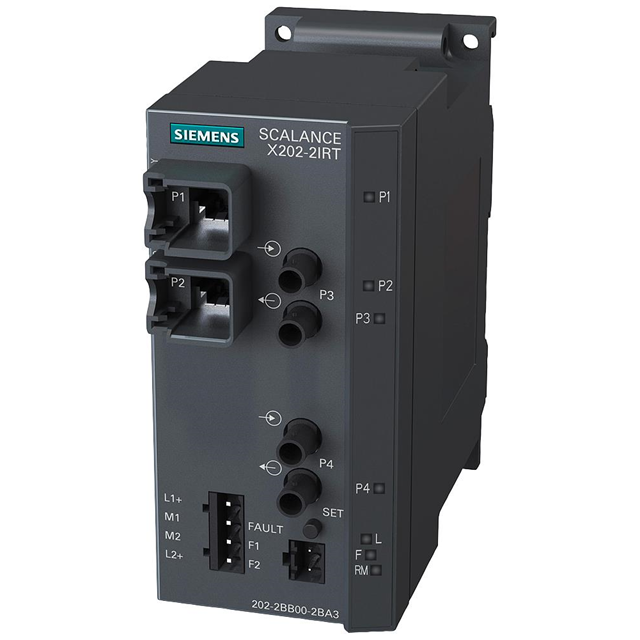

SIMATIC NET, SCALANCE X202-2IRT
| Part | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Fiber Ports | Number of Ports | Ingress Protection | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Copper Ports | Copper Type | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | DIN Rail Wall Mount | 18 VDC | 32 VDC | 1 | 3 | IP30 | RJ45 ST | 60 °C | -40 C | 2 | 10/100 | Fixed |
 Siemens | DIN Rail Wall Mount | 18 VDC | 32 VDC | 2 | 4 | IP30 | RJ45 SC | 60 °C | -25 °C | 2 | 10/100 | Fixed |
