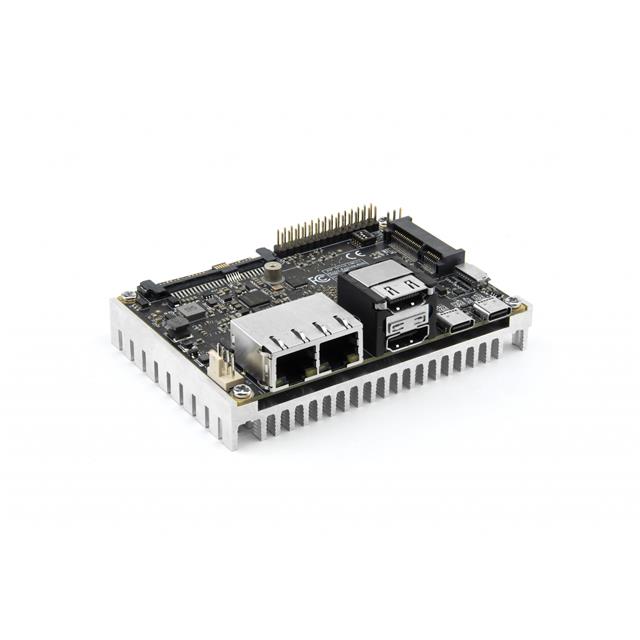

SBC-BLADE3 Series
Manufacturer: Mixtile Limited
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SBC 8 CORE 4GB RAM
| Part | Power (Watts) | Expansion Site/Bus | Size / Dimension Length | Size / Dimension Width | Ethernet Ports | Ethernet Interface | Number of Cores | Video Outputs | Cooling Type | RAM Capacity | Watchdog Timer | Operating Temperature (Max) | Operating Temperature (Min) | Speed | Core Processor | USB | Digital I/O Lines | Storage Interface | Storage Interface Version | Form Factor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mixtile Limited | 8 W | ADC CAN I2C RS-485 SPDIF UART | 3.937 in | 2.834 in | 2 | GbE | 8 | HDMI 2.1 | Heat Sink | 4 GB | Yes | 80 °C | 0 °C | 2.4 GHz | Octa-Core Cortex-A76/A55 Rockchip RK3588 | USB 3.2 Gen 1 Type-C (2) | 4 lines | eMMC eMMC 5.1 | 5.1 | Pico-ITX |
Mixtile Limited | 8 W | 3.937 in | 2.834 in | 2 | GbE | 8 | HDMI 2.1 | Heat Sink | 16 GB | Yes | 80 °C | 0 °C | 2.4 GHz | Octa-Core Cortex-A76/A55 Rockchip RK3588 | USB 3.2 Gen 1 Type-C (2) | 4 lines | eMMC eMMC 5.1 | 5.1 | Pico-ITX |
