25163 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

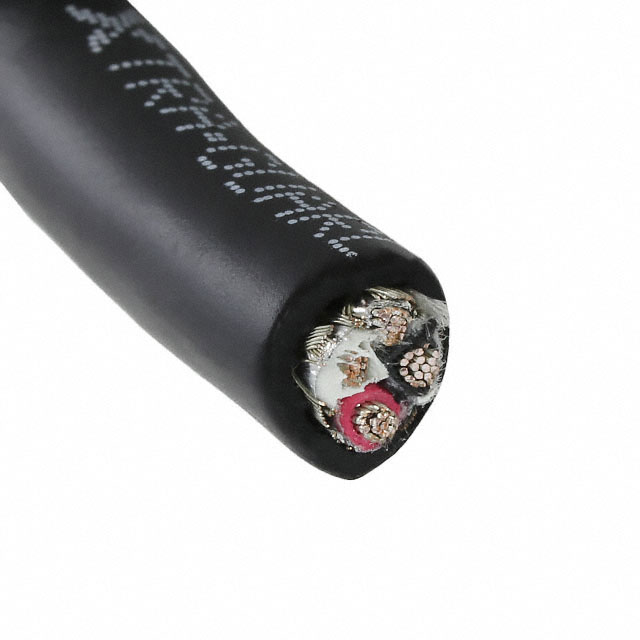

CABLE 3COND 18AWG BLK SHLD 1000'
| Part | Shield Material | Shield Coverage | Wire Gauge | Jacket Color | Voltage | Ratings | Features | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Length | Length | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 18 AWG | Black | 300 VDC | ISO 10993 UL Style 20668 | Biological Compatibility Drain Wire Rip Cord | -30 ░C | 90 °C | 6.76 mm | 0.266 in | Copper Tinned | Braid Foil | 16 | 30 AWG | Polyurethane (PU) | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Multi-Conductor | 304.8 m | 1000 ft | 3 |
