121-83 Series

Manufacturer: Preci-Dip

Catalog

CONN IC DIP SOCKET 28POS GOLD

Part	Contact Resistance	Material Flammability Rating	Current Rating (Amps)	Termination Post Length	Termination Post Length	Pitch - Post	Pitch - Post	Contact Material - Mating	Contact Material - Post [custom]	Contact Finish - Mating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Housing Material	Termination	Mounting Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Features	Type	Type	Number of Positions or Pins (Grid)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]	Type	Type [custom]	Type [custom]

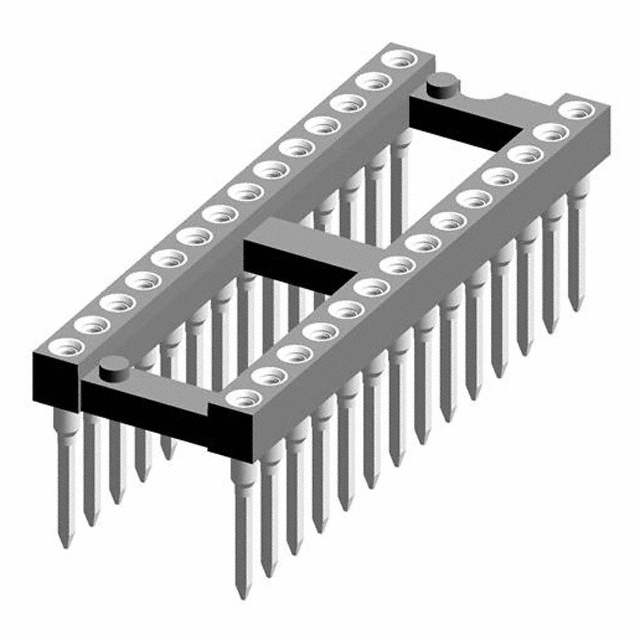

Preci-Dip 121-83-428-41-001101	10 mOhm	UL94 V-0	1 A	6.6 mm	0.26 in	0.1 in	2.54 mm	Beryllium Copper	Brass	Gold	Tin	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Through Hole	29.5 µin	0.75 µm	Open Frame	0.4 in	DIP	28	-55 C	125 °C

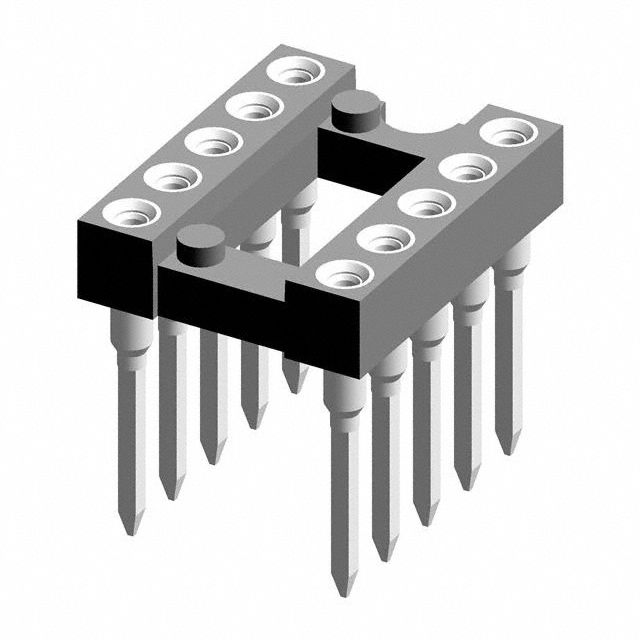

Preci-Dip 121-83-310-41-001101	10 mOhm	UL94 V-0	1 A	6.6 mm	0.26 in	0.1 in	2.54 mm	Beryllium Copper	Brass	Gold	Tin	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Through Hole	29.5 µin	0.75 µm	Open Frame	0.3 in	DIP	10	-55 C	125 °C	5	2	7.62 mm

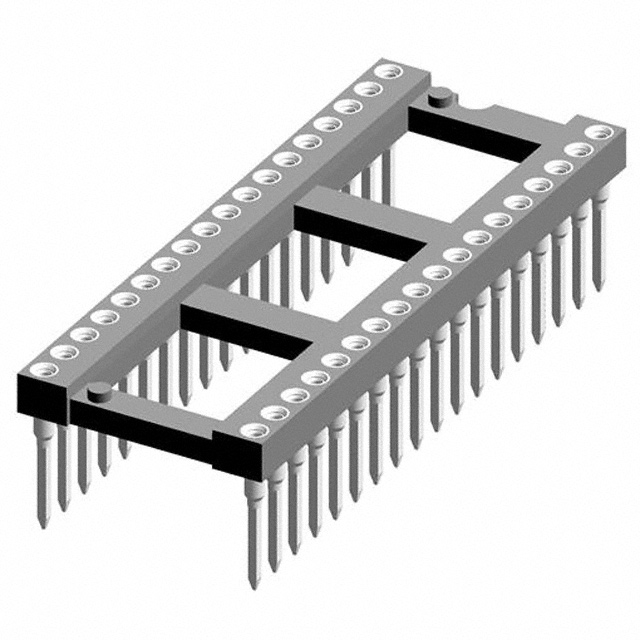

Preci-Dip 121-83-636-41-001101	10 mOhm	UL94 V-0	1 A	6.6 mm	0.26 in	0.1 in	2.54 mm	Beryllium Copper	Brass	Gold	Tin	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Through Hole	29.5 µin	0.75 µm	Open Frame		DIP	36	-55 C	125 °C				15.24 mm	0.6 in

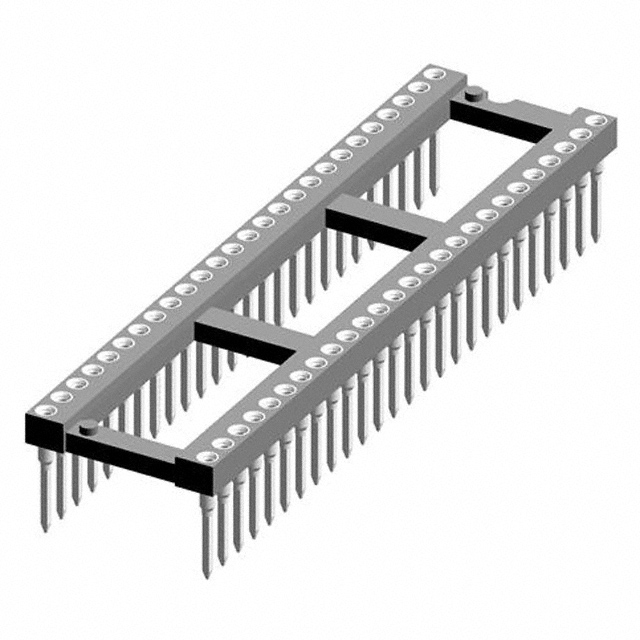

Preci-Dip 121-83-652-41-001101	10 mOhm	UL94 V-0	1 A	6.6 mm	0.26 in	0.1 in	2.54 mm	Beryllium Copper	Brass	Gold	Tin	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Through Hole	29.5 µin	0.75 µm	Open Frame		DIP		-55 C	125 °C				15.24 mm	0.6 in

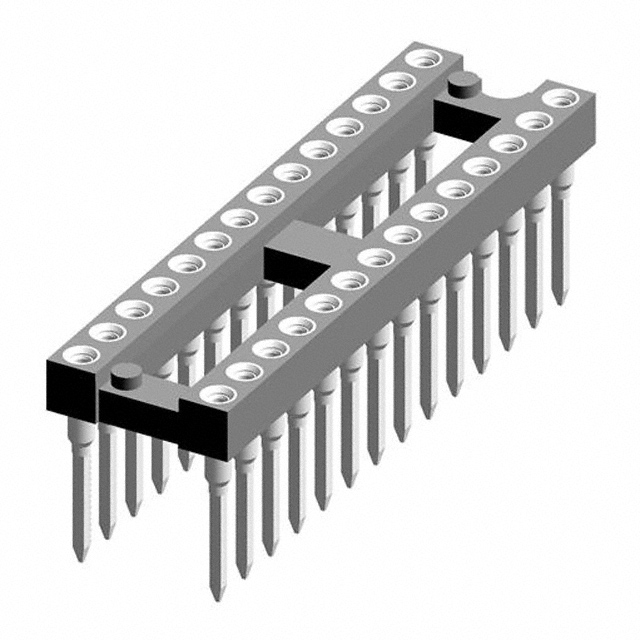

Preci-Dip 121-83-328-41-001101	10 mOhm	UL94 V-0	1 A	6.6 mm	0.26 in	0.1 in	2.54 mm	Beryllium Copper	Brass	Gold	Tin	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Through Hole	29.5 µin	0.75 µm	Open Frame	0.3 in	DIP	28	-55 C	125 °C			7.62 mm

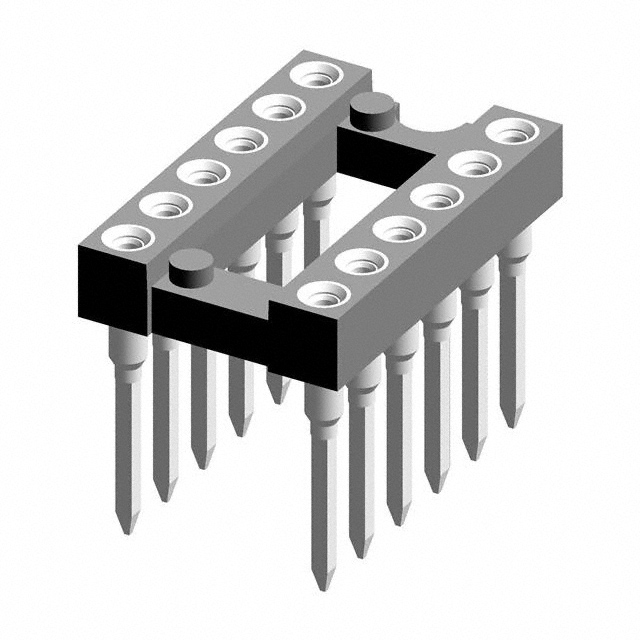

Preci-Dip 121-83-312-41-001101	10 mOhm	UL94 V-0	1 A	6.6 mm	0.26 in	0.1 in	2.54 mm	Beryllium Copper	Brass	Gold	Tin	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Through Hole	29.5 µin	0.75 µm	Open Frame	0.3 in	DIP	12	-55 C	125 °C			7.62 mm

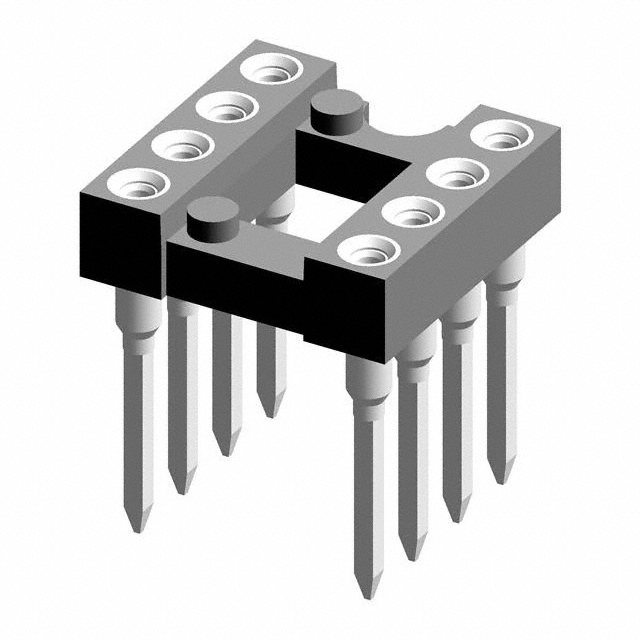

Preci-Dip 121-83-308-41-001101	10 mOhm	UL94 V-0	1 A	6.6 mm	0.26 in	0.1 in	2.54 mm	Beryllium Copper	Brass	Gold	Tin	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Through Hole	29.5 µin	0.75 µm	Open Frame	0.3 in	DIP	8	-55 C	125 °C	4	2	7.62 mm

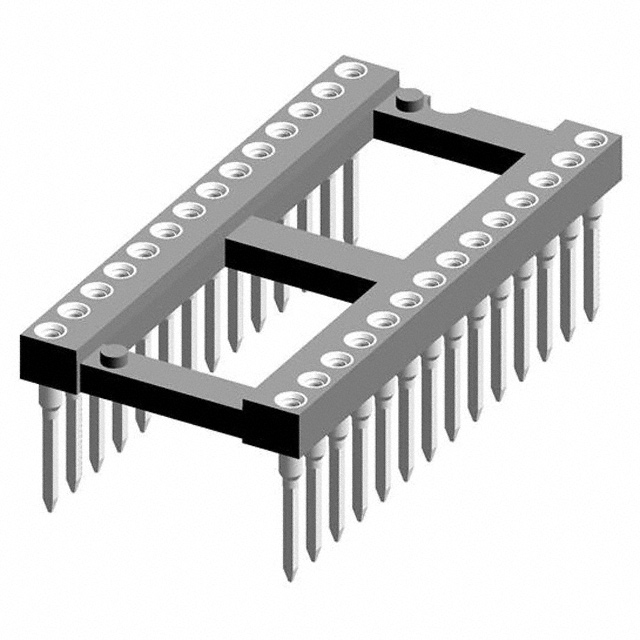

Preci-Dip 121-83-628-41-001101	10 mOhm	UL94 V-0	1 A	6.6 mm	0.26 in	0.1 in	2.54 mm	Beryllium Copper	Brass	Gold	Tin	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Through Hole	29.5 µin	0.75 µm	Open Frame		DIP	28	-55 C	125 °C				15.24 mm	0.6 in

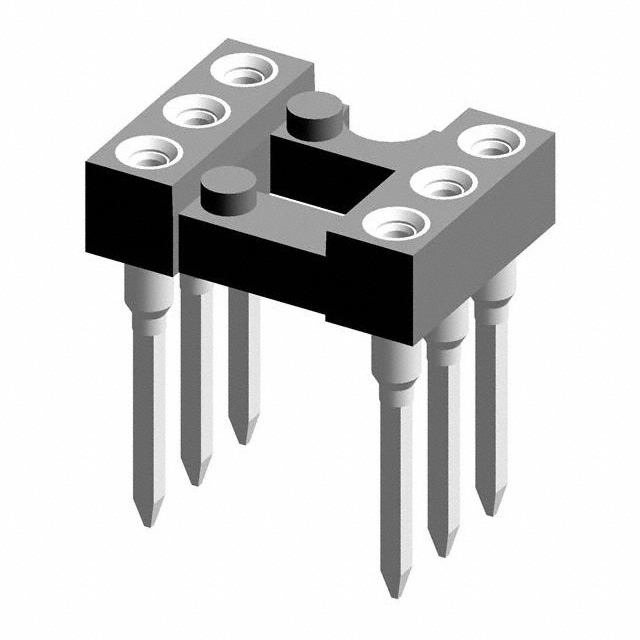

Preci-Dip 121-83-306-41-001101	10 mOhm	UL94 V-0	1 A	6.6 mm	0.26 in	0.1 in	2.54 mm	Beryllium Copper	Brass	Gold	Tin	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Through Hole	29.5 µin	0.75 µm	Open Frame	0.3 in	DIP	6	-55 C	125 °C	3 positions or pins	2	7.62 mm

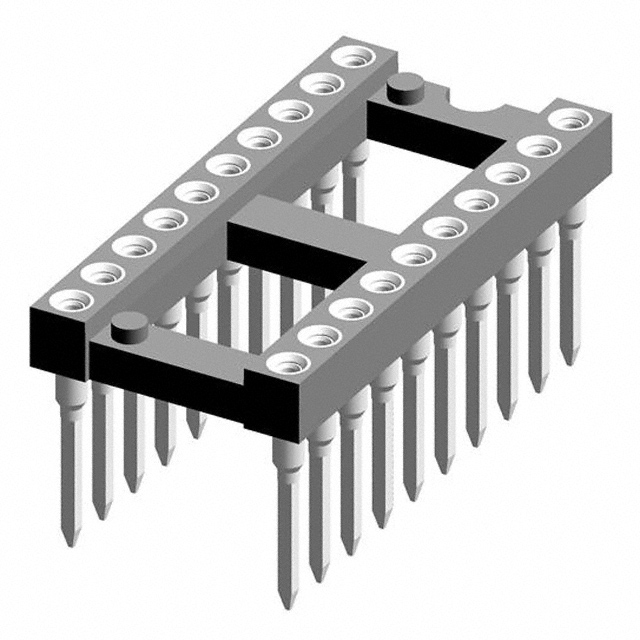

Preci-Dip 121-83-420-41-001101	10 mOhm	UL94 V-0	1 A	6.6 mm	0.26 in	0.1 in	2.54 mm	Beryllium Copper	Brass	Gold	Tin	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Through Hole	29.5 µin	0.75 µm	Open Frame	0.4 in	DIP	20	-55 C	125 °C
