8369-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

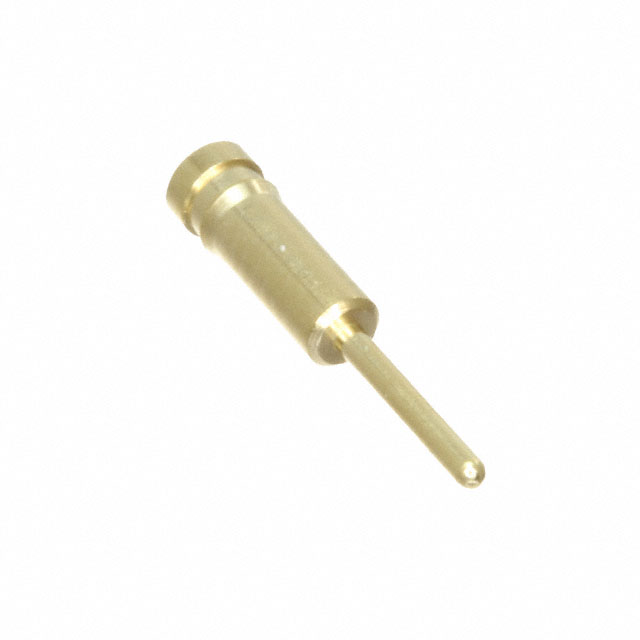

RECEPTACLE WITH A STANDARD TAIL
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Socket Depth | Socket Depth | Flange Diameter [diameter] | Flange Diameter [diameter] | Tail Diameter [diameter] | Tail Diameter [diameter] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Material | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Tail Type | Length - Overall [x] | Length - Overall [x] | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.22 in | 5.59 mm | 0.09 in | 2.29 mm | 0.03 in | 0.76 mm | 1.63 mm | 0.064 in | Beryllium Copper | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | Standard Tail | 12.07 mm | 0.475 in | 30 Áin | 0.76 Ám | 2.13 mm | 0.084 in | Press-Fit |
