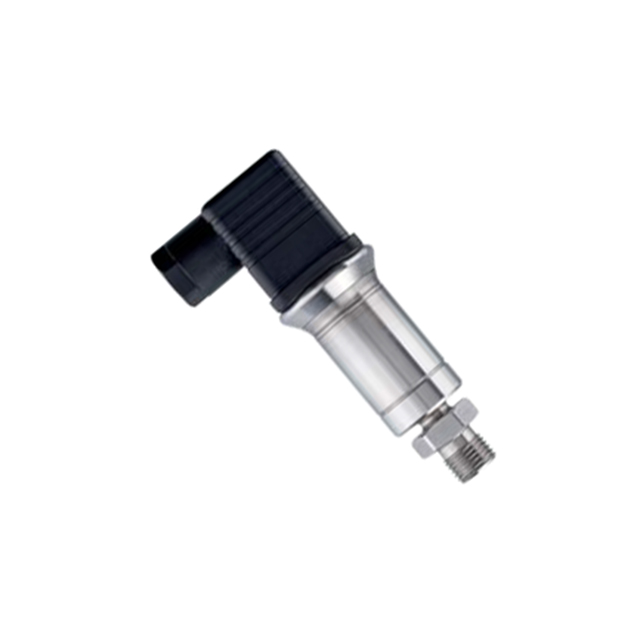

IPSL-G0750 Series
Manufacturer: Sensata Technologies
Beta
⌘K
PRESSURE TRANS. 0-750MBARG 1/4"
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Accuracy | Operating Pressure [x] | Operating Pressure [x] | Maximum Pressure | Maximum Pressure | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Output Type | Output [Max] | Output [Min] | Pressure Type | Port Style | Applications | Features | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata Technologies | 9 V | 32 VDC | 0.25 % | 75 kPa | 10.88 PSI | 500 kPa | 72.52 PSI | -20 C | 80 C | Connector | Analog Current | 20 mA | 4 mA | Vented Gauge | Threaded | Industrial Automation | Amplified Output Temperature Compensated | Cylinder Threaded - M12 |
 Sensata Technologies | 9 V | 32 VDC | 0.25 % | 75 kPa | 10.88 PSI | 500 kPa | 72.52 PSI | -20 C | 80 C | Connector | Analog Voltage | 4.5 V | 0.5 V | Vented Gauge | Threaded | Industrial Automation | Amplified Output Temperature Compensated | Cylinder |
