M80-753 Series

Catalog

CONN HEADER VERT 8POS 2MM

Part	Mated Stacking Heights	Number of Positions Loaded	Number of Rows [custom]	Insulation Material	Connector Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Fastening Type	Insulation Color	Pitch - Mating	Pitch - Mating	Style	Voltage Rating	Contact Finish - Mating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Termination	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Shrouding	Number of Positions	Contact Material	Contact Shape	Current Rating (Amps)	Material Flammability Rating	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Finish - Post	Number of Positions [custom]
Harwin Inc. M80-7530845	7.23 mm 7.85 mm 10.2 mm 13.51 mm	All	2	Polyphenylene Sulfide (PPS) Glass Filled	Header	29.5 µin	0.75 µm	Latch Lock	Black	0.079 "	2 mm	Board to Board Cable	800 V	Gold	Male Pin	-55 C	125 °C	2 mm	0.079 in	Through Hole	Solder	4.5 mm	0.177 in	0.219 in	5.56 mm	Shrouded - 4 Wall	8	Phosphor Bronze	Circular	2.2 A	UL94 V-0
Harwin Inc. M80-7531042	7.23 mm 7.85 mm 10.2 mm 13.51 mm	All	2	Polyphenylene Sulfide (PPS) Glass Filled	Header	29.5 µin	0.75 µm	Latch Lock	Black	0.079 "	2 mm	Board to Board Cable	800 V	Gold	Male Pin	-55 C	125 °C	2 mm	0.079 in	Through Hole	Solder	4.5 mm	0.177 in	0.219 in	5.56 mm	Shrouded - 4 Wall	10	Phosphor Bronze	Circular	2.2 A	UL94 V-0	118.1 µin	3 µm	Tin
Harwin Inc. M80-7530445	7.23 mm 7.85 mm 10.2 mm 13.51 mm	All	2	Polyphenylene Sulfide (PPS) Glass Filled	Header	29.5 µin	0.75 µm	Latch Lock	Black	0.079 "	2 mm	Board to Board Cable	800 V	Gold	Male Pin	-55 C	125 °C	2 mm	0.079 in	Through Hole	Solder	4.5 mm	0.177 in	0.219 in	5.56 mm	Shrouded - 4 Wall	4	Phosphor Bronze	Circular	2.2 A	UL94 V-0

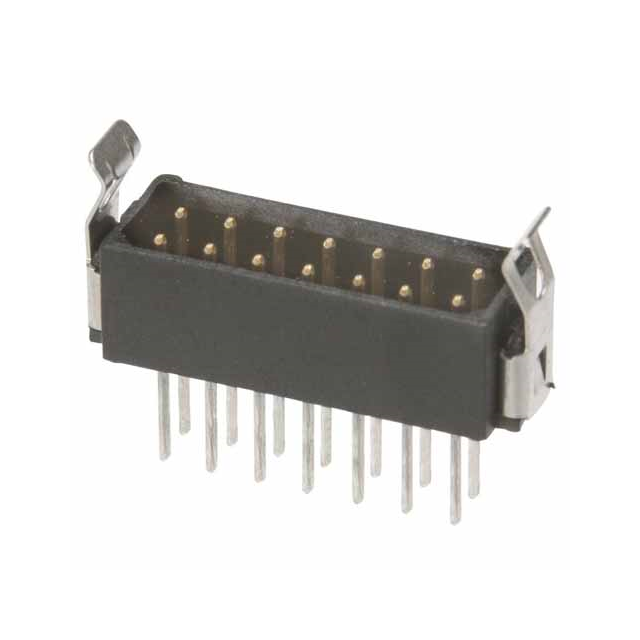

Harwin Inc. M80-7530442	7.23 mm 7.85 mm 10.2 mm 13.51 mm	All	2	Polyphenylene Sulfide (PPS) Glass Filled	Header	29.5 µin	0.75 µm	Latch Lock	Black	0.079 "	2 mm	Board to Board Cable	800 V	Gold	Male Pin	-55 C	125 °C	2 mm	0.079 in	Through Hole	Solder	4.5 mm	0.177 in	0.219 in	5.56 mm	Shrouded - 4 Wall	4	Phosphor Bronze	Circular	2.2 A	UL94 V-0	118.1 µin	3 µm	Tin
Harwin Inc. M80-7533442	7.23 mm 7.85 mm 10.2 mm 13.51 mm	All	2	Polyphenylene Sulfide (PPS) Glass Filled	Header	29.5 µin	0.75 µm	Latch Lock	Black	0.079 "	2 mm	Board to Board Cable	800 V	Gold	Male Pin	-55 C	125 °C	2 mm	0.079 in	Through Hole	Solder	4.5 mm	0.177 in	0.219 in	5.56 mm	Shrouded - 4 Wall		Phosphor Bronze	Circular	2.2 A	UL94 V-0	118.1 µin	3 µm	Tin	34
Harwin Inc. M80-7532642	7.23 mm 7.85 mm 10.2 mm 13.51 mm	All	2	Polyphenylene Sulfide (PPS) Glass Filled	Header	29.5 µin	0.75 µm	Latch Lock	Black	0.079 "	2 mm	Board to Board Cable	800 V	Gold	Male Pin	-55 C	125 °C	2 mm	0.079 in	Through Hole	Solder	4.5 mm	0.177 in	0.219 in	5.56 mm	Shrouded - 4 Wall	26	Phosphor Bronze	Circular	2.2 A	UL94 V-0	118.1 µin	3 µm	Tin
Harwin Inc. M80-7531242	7.23 mm 7.85 mm 10.2 mm 13.51 mm	All	2	Polyphenylene Sulfide (PPS) Glass Filled	Header	29.5 µin	0.75 µm	Latch Lock	Black	0.079 "	2 mm	Board to Board Cable	800 V	Gold	Male Pin	-55 C	125 °C	2 mm	0.079 in	Through Hole	Solder	4.5 mm	0.177 in	0.219 in	5.56 mm	Shrouded - 4 Wall	12	Phosphor Bronze	Circular	2.2 A	UL94 V-0	118.1 µin	3 µm	Tin
