PFB Series

Ferrite Beads 1206 600Ohms SMT FERRITE CHIP BEAD

Catalog

Ferrite Beads 1206 600Ohms SMT FERRITE CHIP BEAD

Part	Height (Max) [z]	Height (Max) [z]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Impedance @ Frequency	Package / Case	Filter Type	DC Resistance (DCR) (Max) [Max]	Number of Lines	Current Rating (Max) [Max]

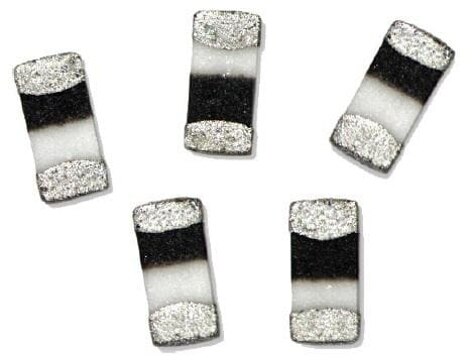

Pulse Electronics PE-0805PFB331ST	1.05 mm	0.041 in	Surface Mount	2 mm	1.25 mm	0.049 "	0.079 in	-40 C	105 ░C	330 Ohms	0805	Power Line	100 mOhm	1	1.5 A
Pulse Electronics PE-1206PFB601ST	1.05 mm	0.041 in	Surface Mount	3.2 mm	1.6 mm	0.063 "	0.126 "	-40 C	105 ░C	600 Ohms	1206 (3216 Metric)	Power Line	100 mOhm	1	2 A

Ferrite Beads 1206 600Ohms SMT FERRITE CHIP BEAD
