NIV2161 Series

Low Capacitance ESD Protection for Automotive High Speed Data Lines

Catalog

Low Capacitance ESD Protection for Automotive High Speed Data Lines

Part	Voltage - Breakdown (Min) [Min]	Qualification	Package / Case	Power Line Protection	Type	Applications	Unidirectional Channels	Mounting Type	Grade	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)

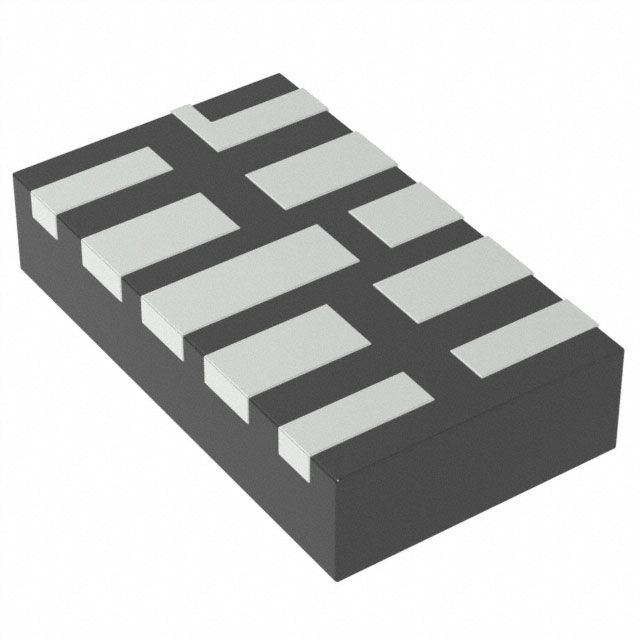

ON Semiconductor NIV2161MTTAG	16.5 V	AEC-Q101	10-WDFN		Zener	HDMI	2	Surface Mount	Automotive	0.65 pF	26 V	10-WDFN (3.5x2)	-55 °C	150 °C	5 V

Catalog

Low Capacitance ESD Protection for Automotive High Speed Data Lines

Key Features

• Low Capacitance (0.65 pF Typical, I/O to GND)

• Diode Capacitance Matching Between I/O’s: 1% Typical

• Optimized Layout

• Protection for the Following IEC Standards: IEC 61000−4−2 (Level 4)

• Low ESD Clamping Voltage

• Short-to-battery and short-to-GND Protection

Description

The NIS/NIV2161 is designed to protect high speed data lines from ESD as well as short to vehicle battery situations. The ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines while the low RDS(on) FET limits distortion on the signal lines.The flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines such as USB and LVDS protocols.
