PPPC082 Series

Catalog

CONN HDR 16POS 0.1 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Fastening Type	Contact Finish Thickness - Mating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Color	Material Flammability Rating	Contact Type	Contact Finish - Post	Number of Positions	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows [custom]	Termination	Voltage Rating	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post

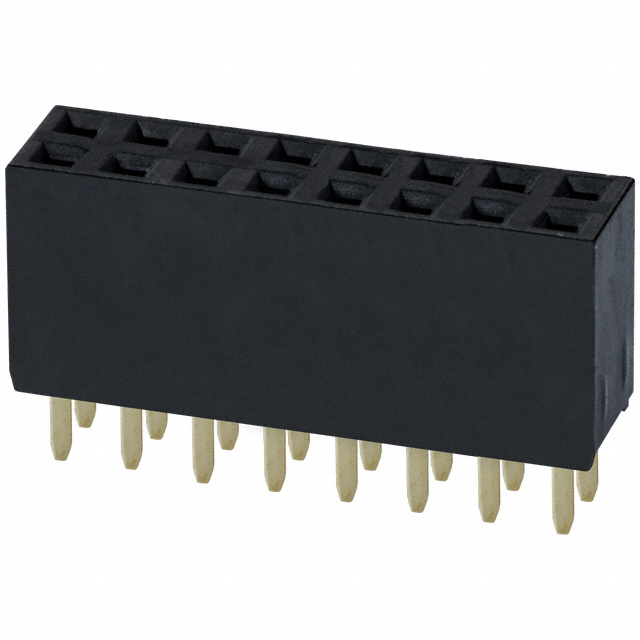

Sullins Connector Solutions PPPC082LFBN	Square	Polyester	Phosphor Bronze	Flash	0.126 "	3.2 mm	All	Push-Pull	Flash	3 A	0.1 "	2.54 mm	Gold	Black	UL94 V-0	Female Socket	Gold	16	Through Hole	-40 C	105 ░C	Header	2	Solder	250 V	0.335 "	8.51 mm	0.1 in	2.54 mm

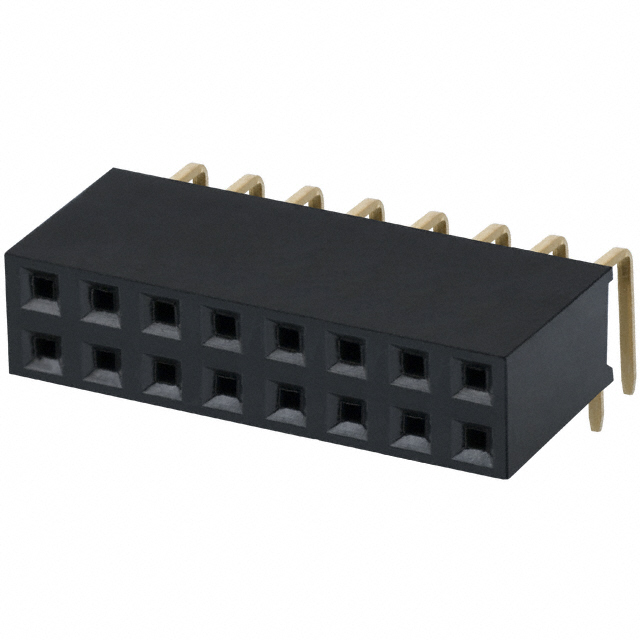

Sullins Connector Solutions PPPC082LJBN	Square	Polyester	Phosphor Bronze	Flash			All	Push-Pull	Flash	3 A	0.1 "	2.54 mm	Gold	Black	UL94 V-0	Female Socket	Gold	16	Right Angle Through Hole	-40 C	105 ░C	Header	2	Solder	250 V			0.1 in	2.54 mm	0.2 in	5.08 mm	0.124 in	3.15 mm
Sullins Connector Solutions PPPC082KFMS	Square	Polyester	Phosphor Bronze	Flash			All	Push-Pull	Flash	3 A	0.1 "	2.54 mm	Gold	Black	UL94 V-0	Female Socket	Gold	16	Surface Mount	-40 C	125 °C	Header	2	Solder	250 V		7.6 mm	0.1 in	2.54 mm	0.299 "
