RT8575 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K
IC LED DRV RGLTR PWM 16WDFN
| Part | Voltage - Output | Package / Case | Dimming | Voltage - Supply (Max) [Max] | Applications | Current - Output / Channel | Supplier Device Package | Internal Switch(s) | Operating Temperature [Max] | Operating Temperature [Min] | Topology | Type | Frequency | Mounting Type | Voltage - Supply (Min) [Min] | Number of Outputs | Supplied Contents | Contents | Utilized IC / Part | Features | Outputs and Type | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

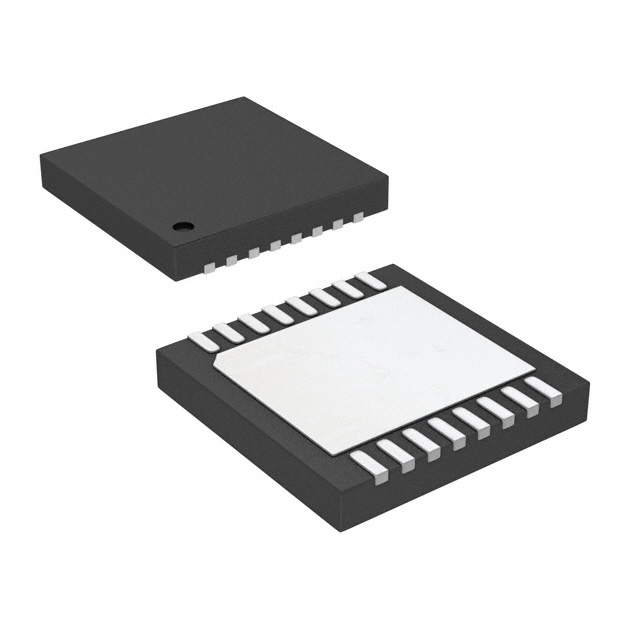

 Richtek USA Inc. | 60 V | 16-WFDFN Exposed Pad | PWM | 24 V | Backlight | 150 mA | 16-WDFN (5x5) | 85 C | -40 ¯C | Step-Up (Boost) | DC DC Regulator | 280 kHz | Surface Mount | 4.2 V | 4 | ||||||||
 Richtek USA Inc. | 60 V | 120 mA | Board(s) | Board(s) | RT8575 | Dimmable | 4 Non-Isolated Outputs | 12 V | 24 V |
