500913 Series

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, J-Bend Series, 1.80 or 2.30mm Mated Height, 4.20mm Mated Width, 50 Circuits

Manufacturer: Molex

Catalog

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, J-Bend Series, 1.80 or 2.30mm Mated Height, 4.20mm Mated Width, 50 Circuits

Part	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions	Contact Finish	Mated Stacking Heights	Mounting Type	Height Above Board	Height Above Board [z]	Connector Type

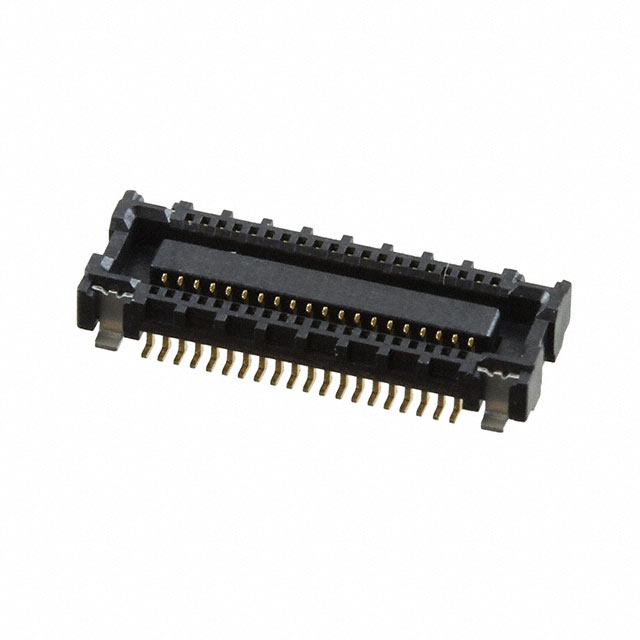

Molex 5009130402	0.016 in	0.4 mm	2	8 çin	0.203 çm	Solder Retention	40	Gold	1.8 mm	Surface Mount	1.6 mm	0.063 in	Center Strip Contacts Receptacle

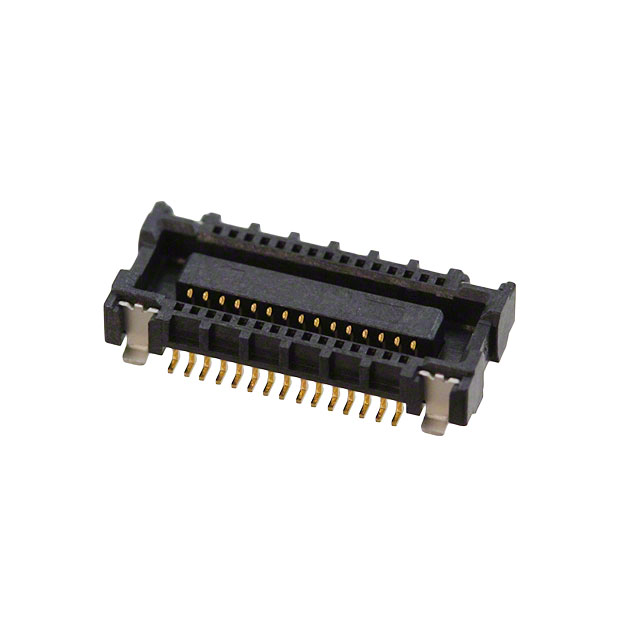

Molex 5009130302	0.016 in	0.4 mm	2	8 çin	0.203 çm	Solder Retention	30	Gold	1.8 mm	Surface Mount	1.6 mm	0.063 in	Center Strip Contacts Receptacle

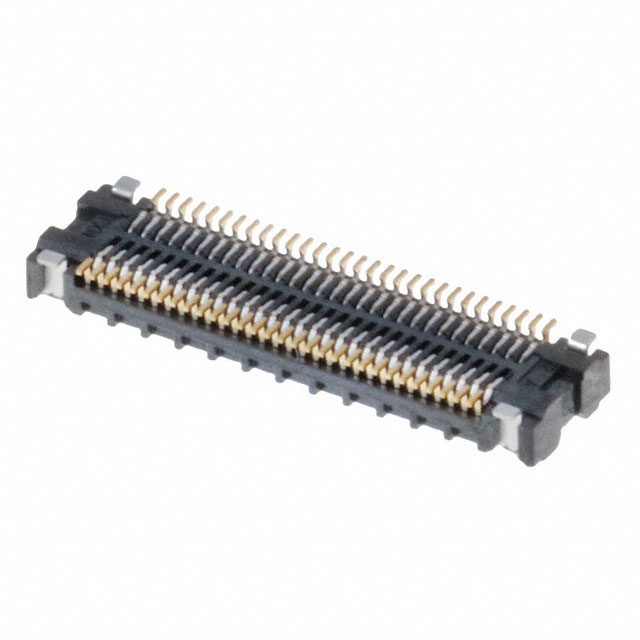

Molex 5009130602	0.016 in	0.4 mm	2	8 çin	0.203 çm	Solder Retention	60	Gold	1.8 mm	Surface Mount	1.6 mm	0.063 in	Center Strip Contacts Receptacle

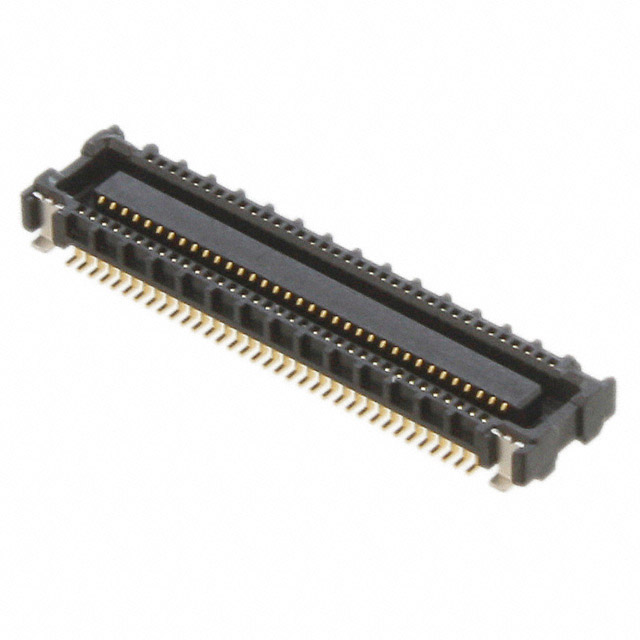

Molex 5009130702	0.016 in	0.4 mm	2	8 çin	0.203 çm	Solder Retention	70	Gold	1.8 mm	Surface Mount	1.6 mm	0.063 in	Center Strip Contacts Receptacle

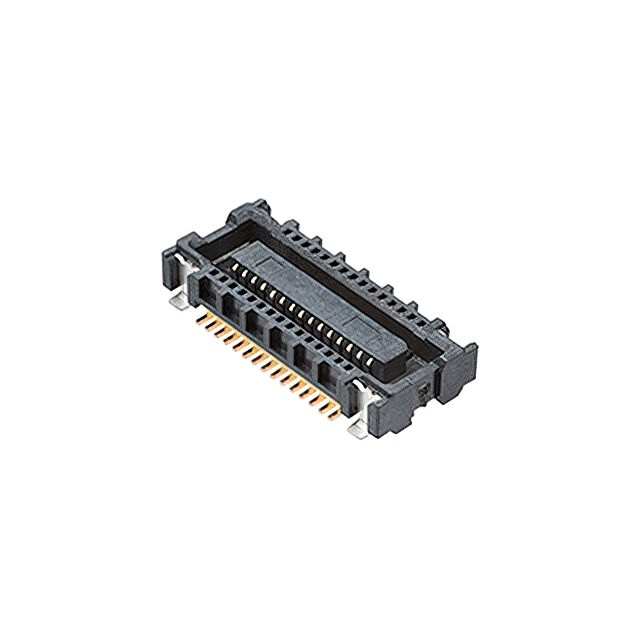

Molex 5009131002	0.016 in	0.4 mm	2	8 çin	0.203 çm	Solder Retention	100	Gold	1.8 mm	Surface Mount	1.6 mm	0.063 in	Center Strip Contacts Receptacle
