0878-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

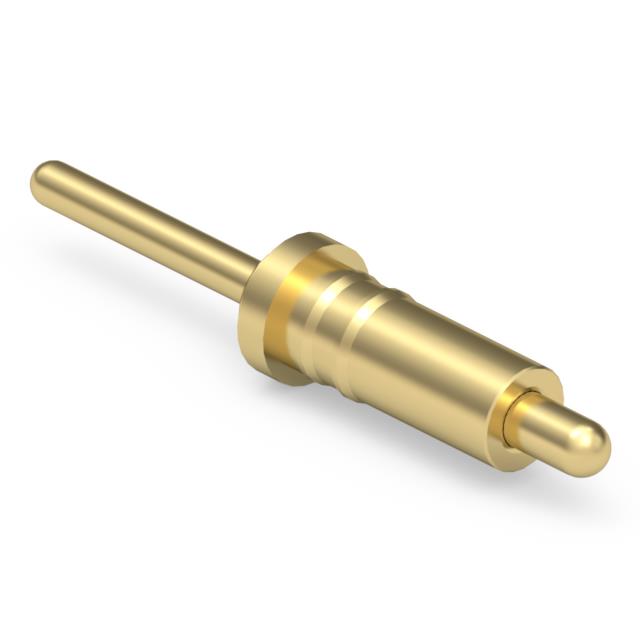

SPRING-LOADED POWER PIN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Type | Operating Force - Initial | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Mounting Type | Recommended Working Height | Recommended Working Height | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Mid Compression | Contact Finish | Minimum Working Height | Minimum Working Height | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Brass Alloy | Sleeve & Plunger (Pogo Pins) | 25 gf | 3.18 mm | 0.125 in | 0.378 in | 9.6 mm | 9.6 A | Through Hole | 0.333 in | 8.46 mm | 1.27 mm | 0.05 in | 120 gf | Gold | 7.32 mm | 0.288 in | 20 µin | 0.51 µm | 1000000 |
