G5A-237 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 1A 9V
| Part | Must Release Voltage | Must Operate Voltage | Operate Time | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Coil Type | Approval Agency | Contact Form | Contact Rating (Current) | Release Time | Contact Material | Coil Current | Coil Resistance | Termination Style | Coil Voltage | Relay Type | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 0.9 VDC | 6.3 VDC | 5 ms | -40 °C | 70 °C | Through Hole | Non Latching | UL | DPDT (2 Form C) | 1 A | 5 ms | Gold (Au) Silver (Ag) | 22.2 mA | 405 Ohms | PC Pin | 9 VDC | General Purpose | 125 VAC 125 VDC |
 Omron Electronics Inc-EMC Div | 1.2 VDC | 8.4 VDC | 5 ms | -40 °C | 70 °C | Through Hole | Non Latching | UL | DPDT (2 Form C) | 1 A | 5 ms | Gold (Au) Silver (Ag) | 16.7 mA | 720 Ohms | PC Pin | 12 VDC | General Purpose | 125 VAC 125 VDC |

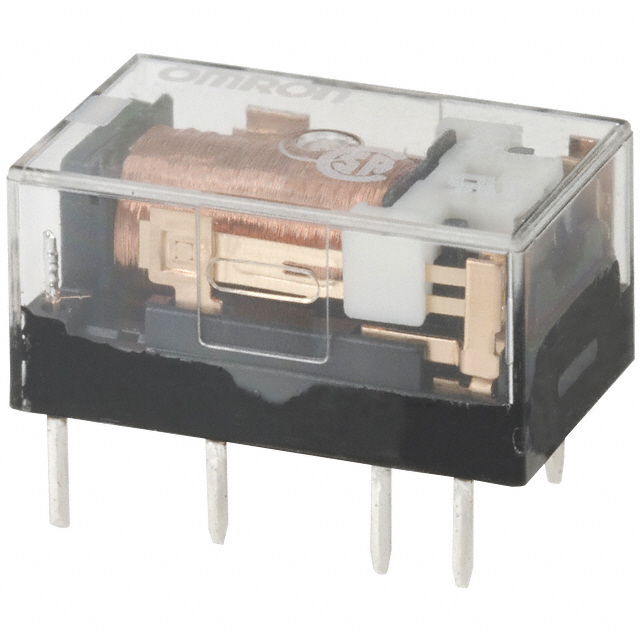

 Omron Electronics Inc-EMC Div | 2.4 VDC | 16.8 VDC | 5 ms | -40 °C | 70 °C | Through Hole | Non Latching | UL | DPDT (2 Form C) | 1 A | 5 ms | Gold (Au) Silver (Ag) | 8.3 mA | 2.88 kOhms | PC Pin | 24 VDC | General Purpose | 125 VAC 125 VDC |

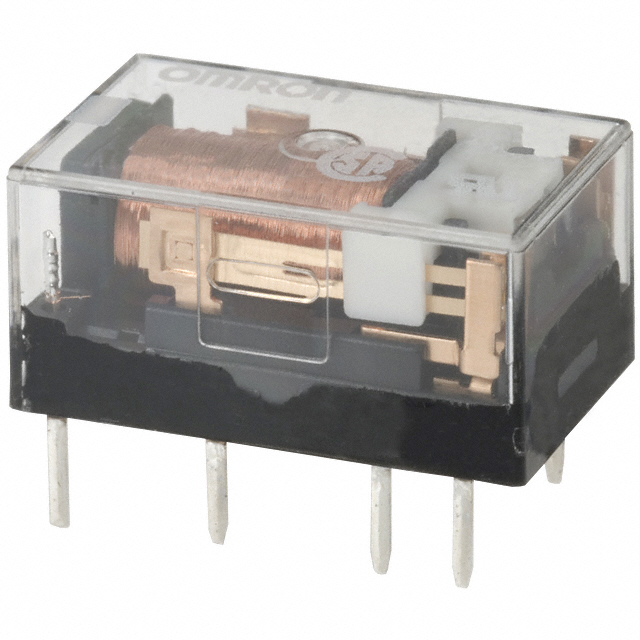

 Omron Electronics Inc-EMC Div | 0.5 VDC | 3.5 VDC | 5 ms | -40 °C | 70 °C | Through Hole | Non Latching | UL | DPDT (2 Form C) | 1 A | 5 ms | Gold (Au) Silver (Ag) | 40 mA | 125 Ohms | PC Pin | 5 VDC | General Purpose | 125 VAC 125 VDC |
