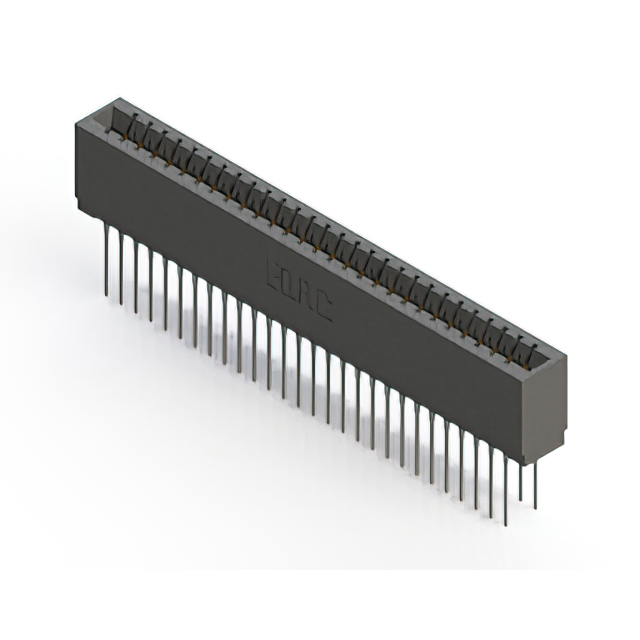

746-056 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 56POS 0.125

Part	Material - Insulation	Termination Rows	Color	Number of Positions	Gender	Mounting Type	Number of Positions/Bay/Row	Pitch	Pitch	Termination	Card Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Read Out	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 746-056-527-101	Polyester Thermoplastic	1	Black	56	Female	Through Hole	56	3.18 mm	0.125 in	Press-Fit	Non Specified - Single Edge	Copper Alloy	-40 C	105 ░C	1	Single	30 Áin	0.76 Ám	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-056-527-206	Polyester Thermoplastic		Black	56	Female	Through Hole	28	3.18 mm	0.125 in	Press-Fit	Non Specified - Dual Edge	Copper Alloy	-40 C	105 ░C		Dual	30 Áin	0.76 Ám	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	2
EDAC Inc. 746-056-520-106	Polyester Thermoplastic	1	Black	56	Female	Through Hole	56	3.18 mm	0.125 in	Press-Fit	Non Specified - Single Edge	Copper Alloy	-40 C	105 ░C	1	Single	30 Áin	0.76 Ám	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-056-541-501	Polyester Thermoplastic	1	Black	56	Female	Through Hole	56	3.18 mm	0.125 in	Press-Fit Wire Wrap	Non Specified - Single Edge	Copper Alloy	-40 C	105 ░C	1	Single	30 Áin	0.76 Ám	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-056-541-506	Polyester Thermoplastic	1	Black	56	Female	Through Hole	56	3.18 mm	0.125 in	Press-Fit Wire Wrap	Non Specified - Single Edge	Copper Alloy	-40 C	105 ░C	1	Single	30 Áin	0.76 Ám	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-056-520-606	Polyester Thermoplastic		Black	56	Female	Through Hole	28	3.18 mm	0.125 in	Press-Fit	Non Specified - Dual Edge	Copper Alloy	-40 C	105 ░C		Dual	30 Áin	0.76 Ám	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	2
EDAC Inc. 746-056-527-601	Polyester Thermoplastic		Black	56	Female	Through Hole	28	3.18 mm	0.125 in	Press-Fit	Non Specified - Dual Edge	Copper Alloy	-40 C	105 ░C		Dual	30 Áin	0.76 Ám	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	2
EDAC Inc. 746-056-545-101	Polyester Thermoplastic	1	Black	56	Female	Through Hole	56	3.18 mm	0.125 in	Press-Fit Wire Wrap	Non Specified - Single Edge	Copper Alloy	-40 C	105 ░C	1	Single	30 Áin	0.76 Ám	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-056-541-101	Polyester Thermoplastic	1	Black	56	Female	Through Hole	56	3.18 mm	0.125 in	Press-Fit Wire Wrap	Non Specified - Single Edge	Copper Alloy	-40 C	105 ░C	1	Single	30 Áin	0.76 Ám	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-056-541-106	Polyester Thermoplastic	1	Black	56	Female	Through Hole	56	3.18 mm	0.125 in	Press-Fit Wire Wrap	Non Specified - Single Edge	Copper Alloy	-40 C	105 ░C	1	Single	30 Áin	0.76 Ám	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
