V7-1A2 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

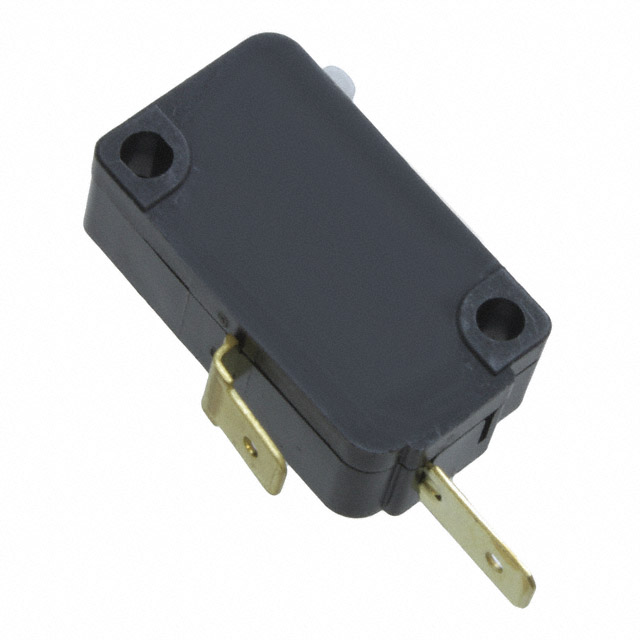

MICROSWITCH, MINIATURE, PIN PLUNGER, SPST-NO, QUICK CONNECT, 5 A
| Part | Operating Force | Voltage Rating - AC | Termination Style | Mounting Type | Overtravel [custom] | Overtravel [custom] | Current Rating (Amps) | Switch Function | Differential Travel [x] | Differential Travel [x] | Electrical Life | Mechanical Life | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Release Force | Circuit | Operating Position | Operating Position | Pretravel | Pretravel | Differential Travel | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 150 gf | 125 V | Quick Connect | Chassis Mount | 1.27 mm | 0.05 " | 5 A | Off-Mom | 0.01 in | 0.25 mm | 100000 Cycles | 10000000 Cycles | Round (Pin Plunger) | 85 °C | -25 °C | 25 gf | SPST-NO | 14.7 mm | 0.579 in | 1.2 mm | 0.047 in | ||
 Honeywell Sensing and Productivity Solutions | 11 gf | 125 V | Quick Connect | Chassis Mount | 1.73 mm | 0.068 " | 5 A | Off-Mom | 100000 Cycles | 10000000 Cycles | 85 °C | -40 C | SPST-NO | 16 mm | 0.63 in | 1.3 mm | 0.051 in | 0.012 in | 0.3 mm |
