HDSP-390 Series

Catalog

DISPLAY 7-SEG 0.8" SGL RED 18DIP

Part	Power Dissipation (Max) [Max]	Number of Characters	Common Pin	Color	Display Type	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Package / Case	Millicandela Rating	Current - Test	Voltage - Forward (Vf) (Typ)	Number of Characters

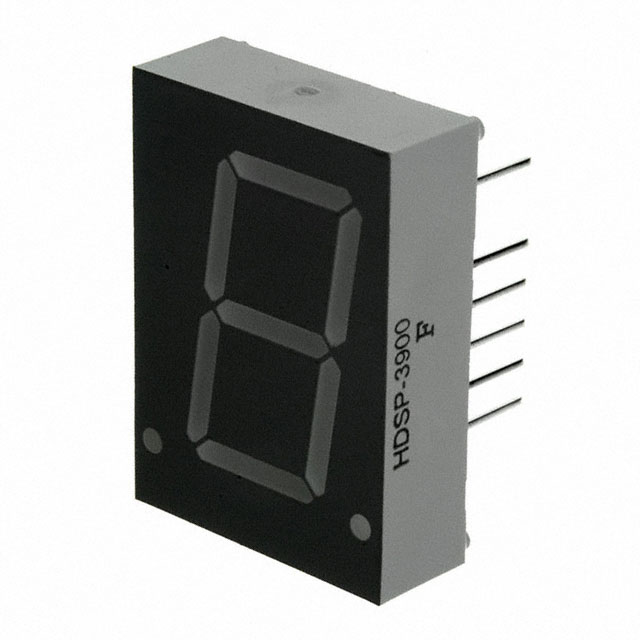

Broadcom Limited HDSP-3900	105 mW	1	Common Anode	Red	7-Segment	0.8 in	20.32 mm	635 nm	0.786 " 19.96 mm	0.33 " 8.38 mm	1.09 " 27.69 mm	0.6 in 12 Leads 15.24 mm	18-DIP	7 mcd	100 mA	2.6 V
Broadcom Limited HDSP-3905	105 mW	1	Common Cathode	Red	7-Segment	0.8 in	20.32 mm	635 nm	0.786 " 19.96 mm	0.33 " 8.38 mm	1.09 " 27.69 mm		18-DIP	7 mcd	100 mA	2.6 V

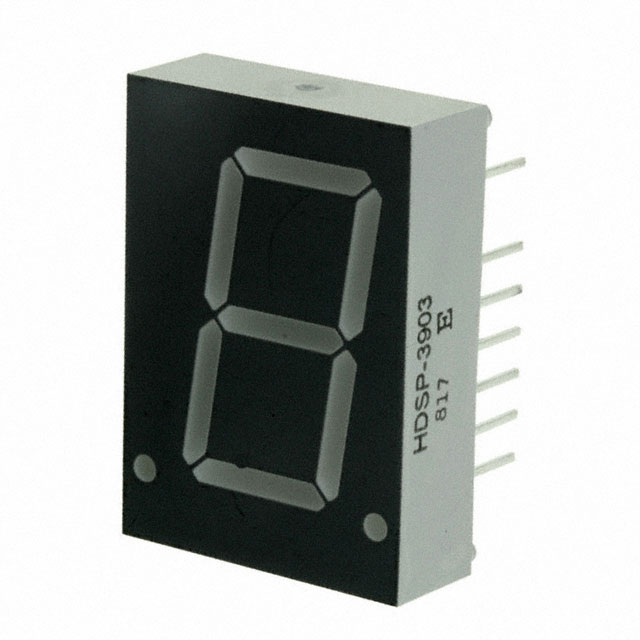

Broadcom Limited HDSP-3903	105 mW	1	Common Cathode	Red	7-Segment	0.8 in	20.32 mm	635 nm	0.786 " 19.96 mm	0.33 " 8.38 mm	1.09 " 27.69 mm		18-DIP	7 mcd	100 mA	2.6 V
Broadcom Limited HDSP-3906	105 mW		Universal	Red	7-Segment	0.8 in	20.32 mm	635 nm	0.786 " 19.96 mm	0.33 " 8.38 mm	1.09 " 27.69 mm		18-DIP (0.600" 15.24mm) 14 Leads	7 mcd	100 mA	2.6 V	+/-1
