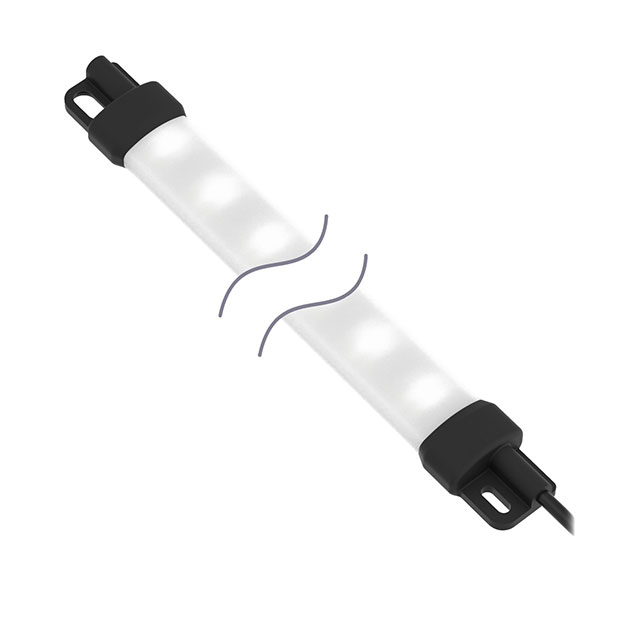

WLS15XDW Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K
WORK LIGHT STRIP 1200MM
| Part | Luminous Flux | Ingress Protection | Termination Style | Housing Material | Length | Length | Profile (W x H) [y] | Profile (W x H) [x] | Profile (W x H) [x] | Profile (W x H) [y] | Voltage - Supply [Max] | Voltage - Supply [Min] | Features | Lens Type | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Color | Approval Agency | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | 1400 lm | IP66 IP67 | Cable with Connector (M12) | Aluminum (Al) | 1200 mm | 47.24 in | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 24 V | 12 VDC | Dimmable | Diffused Flat | 60 °C | -40 C | Cool White | CE cULus | ||
BANNER ENGINEERING | 175 lm | IP66 IP67 | Cable Leads | Aluminum (Al) | 220 mm | 8.66 in | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 24 V | 12 VDC | Dimmable | Diffused Flat | 60 °C | -40 C | Cool White | CE cULus | ||
BANNER ENGINEERING | 525 lm | IP66 IP67 | Cable with Connector (M12) | Aluminum (Al) | 50 cm | 19.69 in | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 24 V | 12 VDC | Dimmable | Diffused Flat | 60 °C | -40 C | Cool White | CE cULus | ||
BANNER ENGINEERING | 1050 lm | IP66 IP67 | Cable with Connector (M12) | Aluminum (Al) | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 24 V | 12 VDC | Dimmable | Diffused Flat | 60 °C | -40 C | Cool White | CE cULus | 36.22 in | 920 mm | ||
BANNER ENGINEERING | 175 lm | IP66 IP67 | Cable with Connector (M12) | Aluminum (Al) | 220 mm | 8.66 in | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 24 V | 12 VDC | Dimmable | Diffused Flat | 60 °C | -40 C | Cool White | CE cULus | ||
 BANNER ENGINEERING | 350 lm | IP66 IP67 | Cable Leads | Aluminum (Al) | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 24 V | 12 VDC | Dimmable | Diffused Flat | 60 °C | -40 C | Cool White | CE cULus | 14.17 in | 360 mm | ||
 BANNER ENGINEERING | 175 lm | IP66 IP67 | Cable with Connector (Deutsch DTM) | Aluminum (Al) | 220 mm | 8.66 in | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 24 V | 12 VDC | Dimmable | Diffused Flat | 60 °C | -40 C | Cool White | CE cULus | ||
BANNER ENGINEERING | 700 lm | IP66 IP67 | Cable with Connector (M12) | Aluminum (Al) | 640 mm | 25.2 in | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 24 V | 12 VDC | Dimmable | Diffused Flat | 60 °C | -40 C | Cool White | CE cULus | ||
BANNER ENGINEERING | 525 lm | IP66 IP67 | Cable Leads | Aluminum (Al) | 50 cm | 19.69 in | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 24 V | 12 VDC | Dimmable | Diffused Flat | 60 °C | -40 C | Cool White | CE cULus |
