09370240 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 2 LEVER, 24B

Part	Ingress Protection	Size	Lock Location	Style	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Material	Housing Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Thread Size	Features

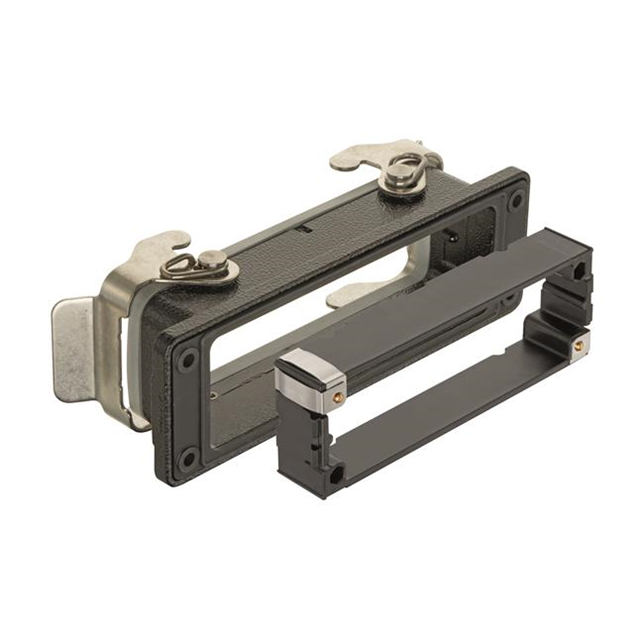

HARTING 09370240391	IP66 - Dust Tight Water Resistant	24 B	Locking Clip (2) on Base Bottom	Bottom Entry	Powder Coated	125 °C	-40 C	Base - Panel Mount	Aluminum Die Cast	Black	55 mm	145.6 mm	34.4 mm	1.354 in	2.165 in	5.732 in

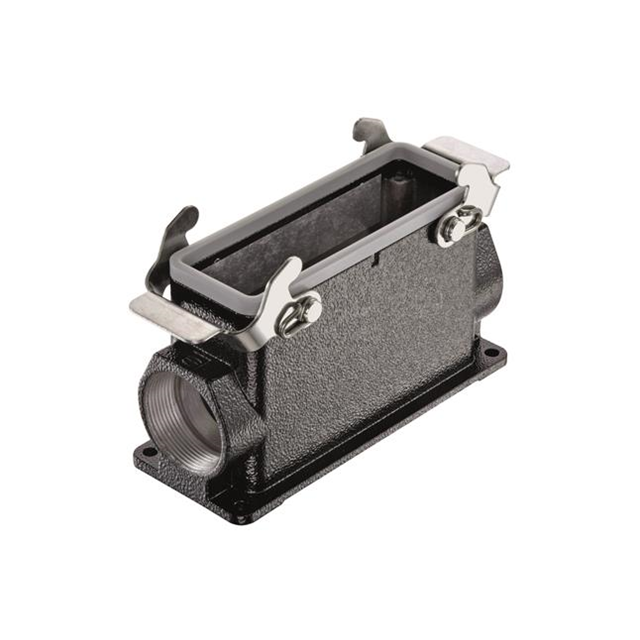

HARTING 09370240271	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (2) on Base Bottom	Side Entry	Powder Coated	125 °C	-40 C	Base - Box Mount	Aluminum Die Cast	Black	57 mm	144 mm	80.8 mm	3.181 in	2.244 "	5.669 in	PG29	Feed Through

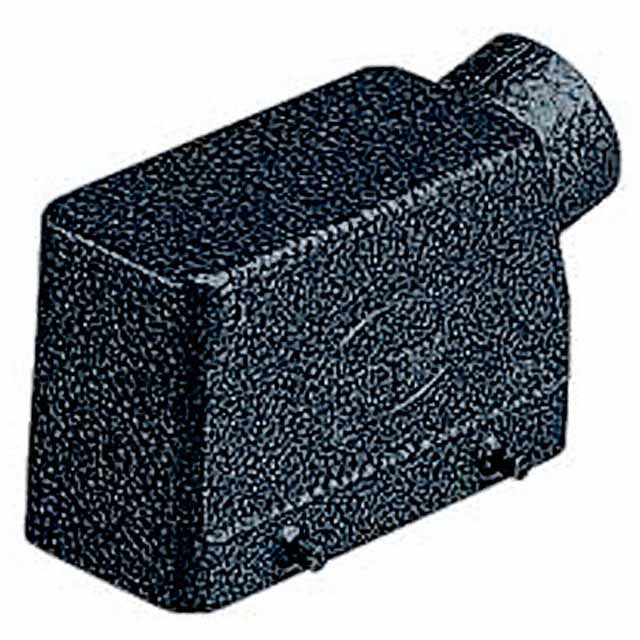

HARTING 09370240521	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (2) on Base Bottom	Side Entry	Epoxy Powder Paint	125 °C	-40 C	Hood	Aluminum Die Cast	Black	43 mm	120 mm	76 mm	2.992 in	1.693 "	4.724 in	PG29
HARTING 09370240480		24 B	Locking Clip (1) on Hood	Top Entry				Hood			43 mm	120 mm	76 mm	2.992 in	1.693 "	4.724 in	PG21
HARTING 09370240381	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (1) on Hood	Bottom Entry	Powder Coated	125 °C	-40 C	Base - Panel Mount	Aluminum Die Cast	Black
HARTING 09370240397	IP66 - Dust Tight Water Resistant	24 B	Locking Clip (1) on Base Bottom	Bottom Entry	Powder Coated	125 °C	-40 C	Base - Panel Mount	Aluminum Die Cast	Black	55 mm	145.6 mm	34.4 mm	1.354 in	2.165 in	5.732 in
HARTING 09370240398	IP66 - Dust Tight Water Resistant	24 B	Locking Clip (1) on Base Bottom	Bottom Entry	Powder Coated	125 °C	-40 C	Base - Panel Mount	Aluminum Die Cast	Black	55 mm	145.6 mm	34.4 mm	1.354 in	2.165 in	5.732 in
