D25S23 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

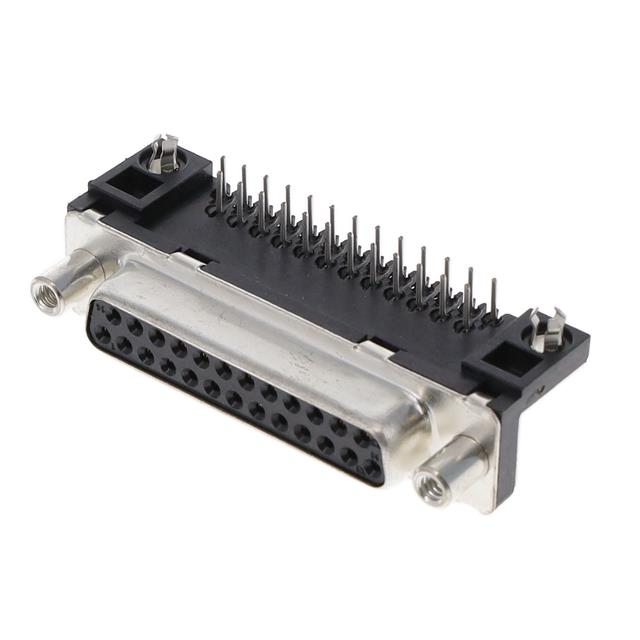

DSUB R/A STB 25POS SOCKET
| Part | Contact Type | Voltage Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Contact Finish Thickness | Connector Type | Connector Style | Flange Feature | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Finish | Number of Rows | Contact Material | Color | Termination | Mounting Type | Features | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Signal | 300 VDC | B DB | 3 | UL94 V-0 | Flash | Receptacle Female Sockets | D-Sub | Female Screwlock (4-40) Mating Side | 5 A | -55 °C | 125 °C | Polyester | Gold | 2 | Phosphor Bronze | Black | Solder | Through Hole Right Angle | Board Lock Mounting Brackets | 0.409 in | 10.39 mm | ||
 Amphenol ICC (FCI) | Signal | 300 VDC | B DB | 3 | UL94 V-0 | Flash | Receptacle Female Sockets | D-Sub | Female Screwlock (4-40) Mating Side | 5 A | -55 °C | 125 °C | Polyester | Gold | 2 | Phosphor Bronze | Black | Solder | Through Hole Right Angle | Board Lock Mounting Brackets | 0.409 in | 10.4 mm | ||
Amphenol ICC (FCI) | Signal | 300 VDC | B DB | 3 | UL94 V-0 | Receptacle Female Sockets | D-Sub | Housing/Shell (M3) | 5 A | -55 °C | 125 °C | Polyester | Gold | 2 | Phosphor Bronze | Black | Solder | Through Hole Right Angle | Board Lock Mounting Brackets | 0.409 in | 10.39 mm | 0.76 Ám | 30 Áin | |
Amphenol ICC (FCI) | Signal | 300 VDC | B DB | 3 | UL94 V-0 | Receptacle Female Sockets | D-Sub | Housing/Shell (4-40) | 5 A | -55 °C | 125 °C | Polyester | Gold | 2 | Phosphor Bronze | Black | Solder | Through Hole Right Angle | Board Lock Mounting Brackets | 0.409 in | 10.39 mm | 0.76 Ám | 30 Áin |
