EFB1548 Series

Catalog

FAN AXIAL 172X50.8MM 48VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Features	Bearing Type	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Termination	Static Pressure	Static Pressure	Fan Type	Approval Agency	Noise	Power (Watts)	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Width [y]	Voltage - Rated	Air Flow	Air Flow
Delta Electronics EFB1548VHG-TP14	490 mA	Aluminum	36 VDC	60 V	Plastic	80000 Hrs	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	Rectangular/Rounded	150 mm	172 mm	4 Wire Leads	0.937 in H2O	233.4 Pa	Tubeaxial	CE CSA UL VDE	60 dB(A)	23.52 W	861.8 g	1.9 lbs	70 °C	-10 °C	4000 RPM	50.8 mm	48 VDC	302.3 CFM	8.46 m³/min

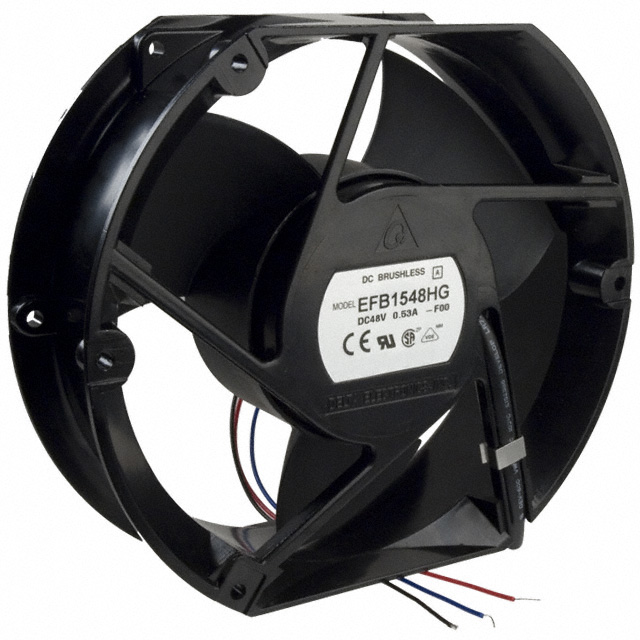

Delta Electronics EFB1548HG-F00	0.31 A	Aluminum	24 VDC	60 V	Plastic	80000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	Ball	Rectangular/Rounded	150 mm	172 mm	3 Wire Leads	0.689 in H2O	171.6 Pa	Tubeaxial	CE CSA UL VDE	55 dB(A)	14.88 W	861.8 g	1.9 lbs	70 °C	-10 °C	3350 RPM	50.8 mm	48 VDC	251.8 CFM	7.05 m³/min
Delta Electronics EFB1548HHG-R00	0.38 A	Aluminum	24 VDC	60 V	Plastic	80000 Hrs	Locked Rotor Sensor	Ball	Rectangular/Rounded	150 mm	172 mm	3 Wire Leads			Tubeaxial	CE CSA UL VDE	57.5 dB	18.24 W	861.8 g	1.9 lbs	70 °C	-10 °C	3700 RPM	50.8 mm	48 VDC	279.7 CFM	7.83 m³/min
Delta Electronics EFB1548HHG-F00	0.38 A	Aluminum	24 VDC	60 V	Plastic	80000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	Ball	Rectangular/Rounded	150 mm	172 mm	3 Wire Leads			Tubeaxial	CE CSA UL VDE	57.5 dB	18.24 W	861.8 g	1.9 lbs	70 °C	-10 °C	3700 RPM	50.8 mm	48 VDC	279.7 CFM	7.83 m³/min

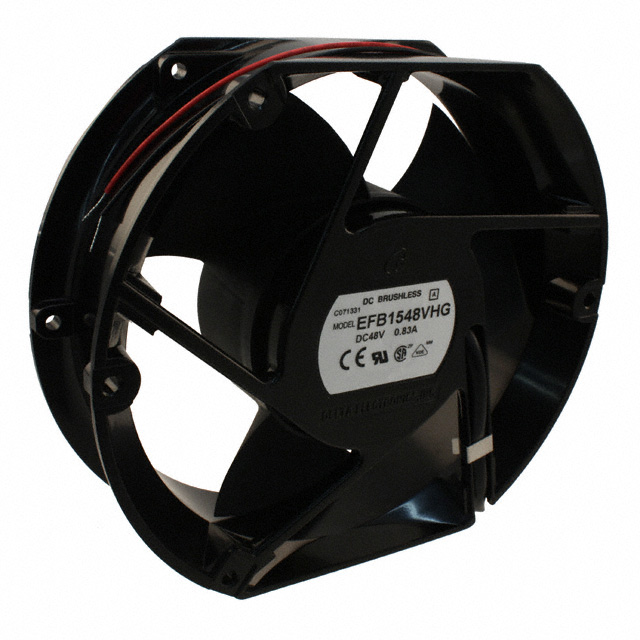

Delta Electronics EFB1548VHG	490 mA	Aluminum	24 VDC	60 V	Plastic	80000 Hrs		Ball	Rectangular/Rounded	150 mm	172 mm	2 Wire Leads	0.937 in H2O	233.4 Pa	Tubeaxial	CE CSA UL VDE	60 dB(A)	23.52 W	861.8 g	1.9 lbs	70 °C	-10 °C	4000 RPM	50.8 mm	48 VDC	302.3 CFM	8.46 m³/min

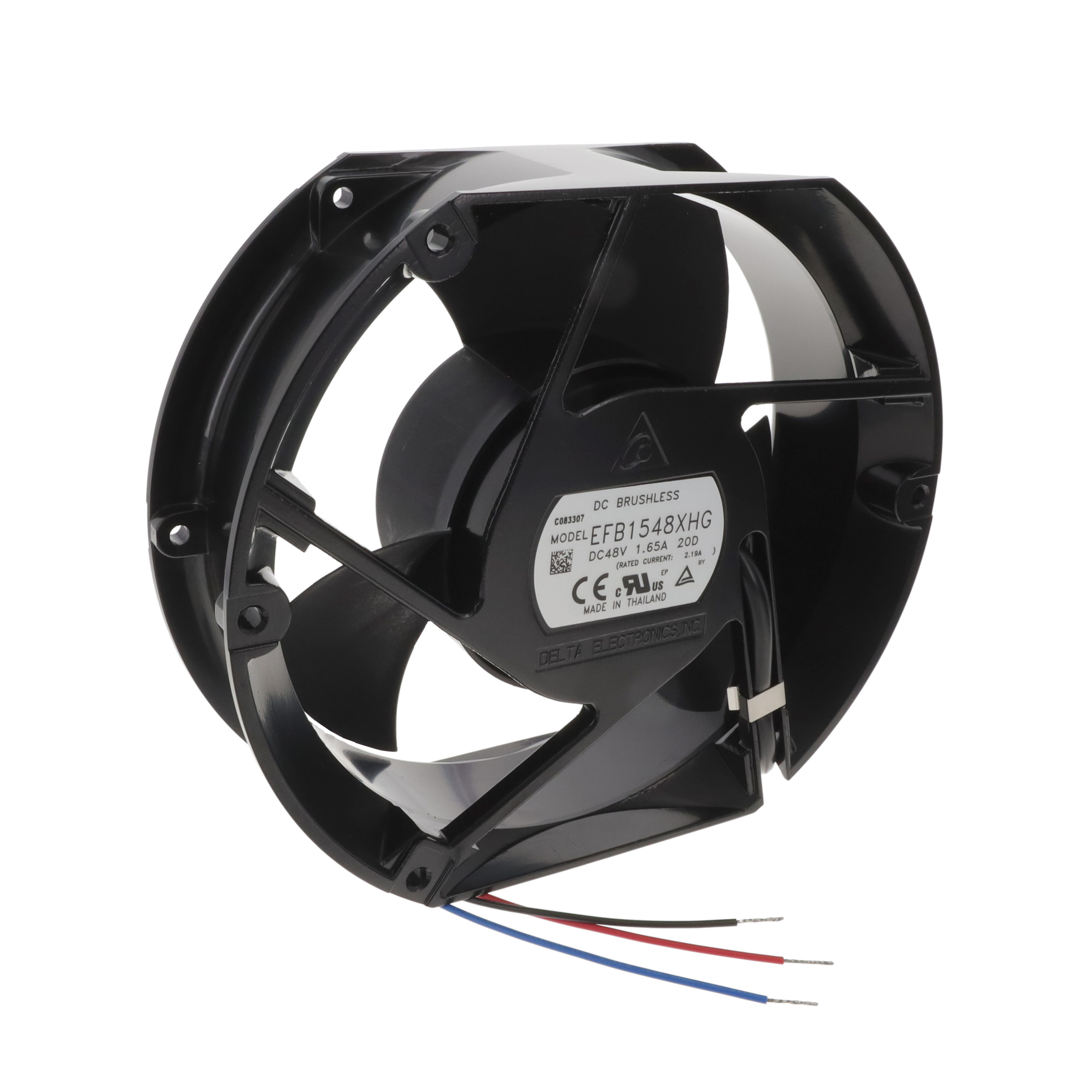

Delta Electronics EFB1548XHG20D	1.38 A	Aluminum	24 VDC	60 V	Plastic	80000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	Ball	Rectangular/Rounded	150 mm	172 mm	3 Wire Leads	2.085 in H2O	519.3 Pa	Tubeaxial	CE cURus TUV	73 dB(A)	66.2 W	861.8 g	1.9 lbs	70 °C	-10 °C	6000 RPM	50.8 mm	48 VDC	435.4 CFM	12.19 m³/min
