SA36-11 Series

Catalog

DISPLAY 7SEG 0.36" SGL GRN 10DIP

Part	Millicandela Rating	Current - Test	Voltage - Forward (Vf) (Typ)	Number of Characters	Common Pin	Color	Digit/Alpha Size	Digit/Alpha Size	Display Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Wavelength - Peak	Package / Case	Package / Case	Package / Case	Power Dissipation (Max) [Max]

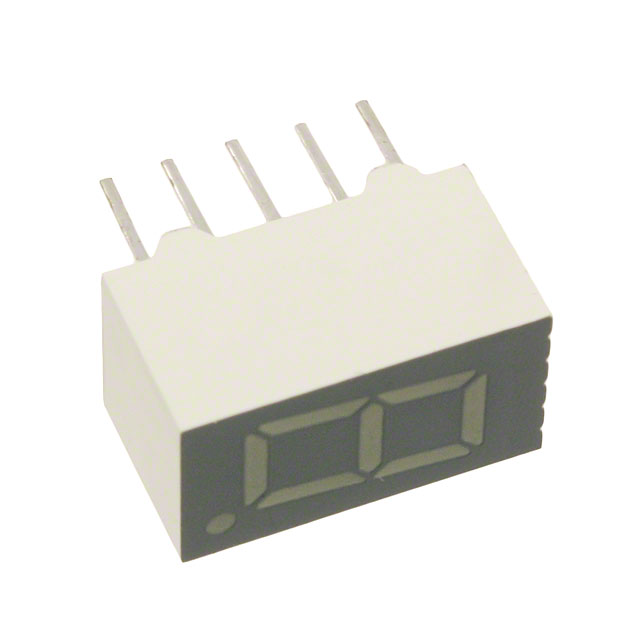

Kingbright SA36-11GWA	3.5 mcd	20 mA	2.2 V	1	Common Anode	Green	9.14 mm	0.36 in	7-Segment	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	565 nm	10-DIP	0.2 in	5.08 mm	62.5 mW
Kingbright SA36-11CGKWA	11 mcd	20 mA	2.1 V	1	Common Anode	Green	9.14 mm	0.36 in	7-Segment	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm		10-DIP	0.2 in	5.08 mm	75 mw

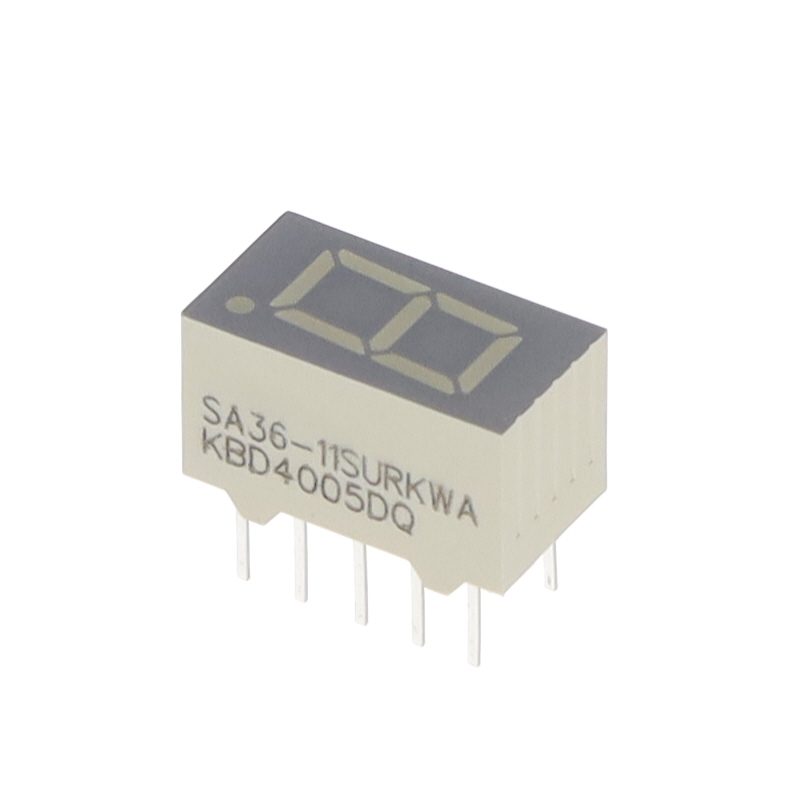

Kingbright SA36-11SURKWA	28 mcd	20 mA	1.95 V	1	Common Anode	Red	9.14 mm	0.36 in	7-Segment	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	645 nm	10-DIP	0.2 in	5.08 mm	75 mw
Kingbright SA36-11SRWA	10 mcd	20 mA	1.85 V	1	Common Anode	Red	9.14 mm	0.36 in	7-Segment	14 mm	8.5 mm 8.75 mm	0.551 in	0.335 in 0.344 "	0.295 in	7.5 mm	660 nm	10-DIP	0.2 in	5.08 mm	75 mw

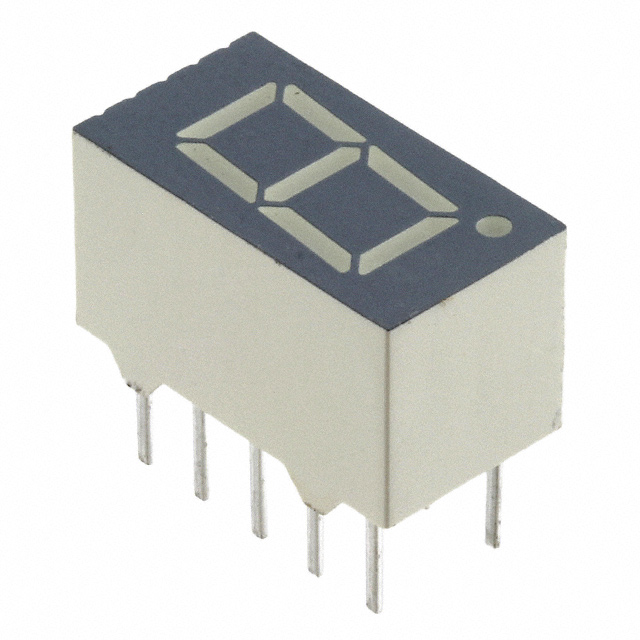

Kingbright SA36-11EWA	2.1 mcd	20 mA	2 V	1	Common Anode	Red	9.14 mm	0.36 in	7-Segment	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	627 nm	10-DIP	0.2 in	5.08 mm	75 mw
Kingbright SA36-11YWA	2.6 mcd	20 mA	2.1 V	1	Common Anode	Yellow	9.14 mm	0.36 in	7-Segment	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	590 nm	10-DIP	0.2 in	5.08 mm	75 mw
Kingbright SA36-11SYKWA	45 mcd	20 mA	2 V	1	Common Anode	Yellow	9.14 mm	0.36 in	7-Segment	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	590 nm	10-DIP	0.2 in	5.08 mm	75 mw
