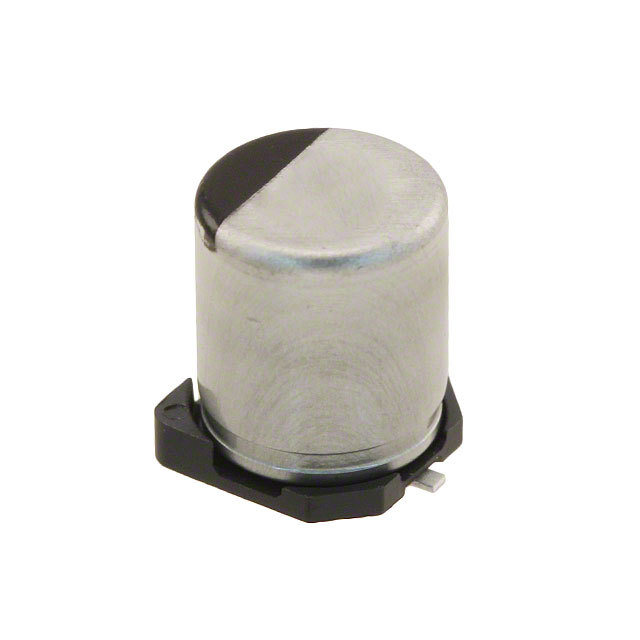

EEH-ZC Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM HYB 150UF 20% 25V SMD

Part	Mounting Type	Package / Case	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Lifetime @ Temp.	Type	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Features	Capacitance	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales EEH-ZC1E151V	Surface Mount	Radial Can - SMD	27 mOhms	0.315 "	8 mm	25 VDC	0.327 "	8.3 mm	0.327 in	8.3 mm	0.425 in	10.8 mm	240 mA	1.6 A	4000 Hrs	Hybrid	AEC-Q200	-55 °C	125 °C	Automotive	Anti-Vibration	150 µF	20 %
Panasonic Industrial Automation Sales EEH-ZC1H220V	Surface Mount	Radial Can - SMD	80 mOhm	0.248 in	6.3 mm	50 VDC	0.26 in	6.6 mm	0.26 in	6.6 mm		6.4 mm	75 mA	750 mA	4000 Hrs	Hybrid	AEC-Q200	-55 °C	125 °C	Automotive	Anti-Vibration	22 µF	20 %	0.252 "
Panasonic Industrial Automation Sales EEH-ZC1V271V	Surface Mount	Radial Can - SMD	20 mOhms	0.394 in	10 mm	35 V	0.406 in	10.3 mm	0.406 "	10.3 mm	0.425 in	10.8 mm	300 mA	2 A	4000 Hrs	Hybrid	AEC-Q200	-55 °C	125 °C	Automotive	Anti-Vibration	270 µF	20 %
Panasonic Industrial Automation Sales EEH-ZC1E330R	Surface Mount	Radial Can - SMD	80 mOhm	0.197 "	5 mm	25 VDC	0.209 in	5.3 mm	0.209 in	5.3 mm			55 mA	550 mA	4000 Hrs	Hybrid	AEC-Q200	-55 °C	125 °C	Automotive		33 ÁF	20 %	0.24 in	6.1 mm
Panasonic Industrial Automation Sales EEH-ZC1E560P	Surface Mount	Radial Can - SMD	50 mOhms	0.248 in	6.3 mm	25 VDC	0.26 in	6.6 mm	0.26 in	6.6 mm			135 mA	900 mA	4000 Hrs	Hybrid	AEC-Q200	-55 °C	125 °C	Automotive		56 µF	20 %	0.24 in	6.1 mm
Panasonic Industrial Automation Sales EEH-ZC1E101XV	Surface Mount	Radial Can - SMD	30 mOhms	0.248 in	6.3 mm	25 VDC	0.26 in	6.6 mm	0.26 in	6.6 mm			210 mA	1.4 A	4000 Hrs	Hybrid	AEC-Q200	-55 °C	125 °C	Automotive	Anti-Vibration	100 µF	20 %	0.327 in	8.3 mm
Panasonic Industrial Automation Sales EEH-ZC1V221P	Surface Mount	Radial Can - SMD	20 mOhms	0.394 in	10 mm	35 V	0.406 in	10.3 mm	0.406 "	10.3 mm	0.413 in	10.5 mm	300 mA	2 A	4000 Hrs	Hybrid	AEC-Q200	-55 °C	125 °C	Automotive		220 µF	20 %
Panasonic Industrial Automation Sales EEH-ZC1V100R	Surface Mount	Radial Can - SMD	100 mOhms	0.197 "	5 mm	35 V	0.209 in	5.3 mm	0.209 in	5.3 mm			55 mA	550 mA	4000 Hrs	Hybrid	AEC-Q200	-55 °C	125 °C	Automotive		10 µF	20 %	0.24 in	6.1 mm
Panasonic Industrial Automation Sales EEH-ZC1V330V	Surface Mount	Radial Can - SMD	60 mOhms	0.248 in	6.3 mm	35 V	0.26 in	6.6 mm	0.26 in	6.6 mm		6.4 mm	90 mA	900 mA	4000 Hrs	Hybrid	AEC-Q200	-55 °C	125 °C	Automotive	Anti-Vibration	33 ÁF	20 %	0.252 "
Panasonic Industrial Automation Sales EEH-ZC1V470V	Surface Mount	Radial Can - SMD	60 mOhms	0.248 in	6.3 mm	35 V	0.26 in	6.6 mm	0.26 in	6.6 mm		6.4 mm	135 mA	900 mA	4000 Hrs	Hybrid	AEC-Q200	-55 °C	125 °C	Automotive	Anti-Vibration	47 µF	20 %	0.252 "
