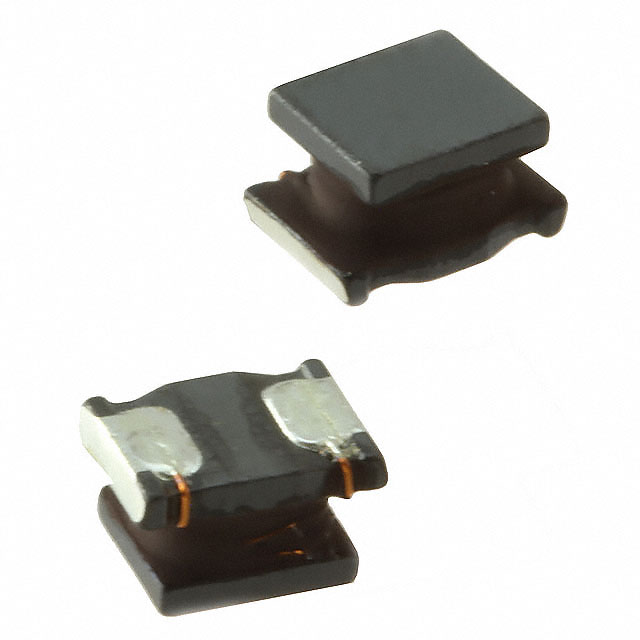

LQH43CN Series

Manufacturer: Murata Power Solutions Inc.

Catalog

GENERAL PURPOSE INDUCTOR, 2.7UH, 20%, 1 ELEMENT, FERRITE-CORE, SMD, 1812, CHIP, 1812

Part	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Inductance Frequency - Test	Supplier Device Package	Supplier Device Package	Current Rating (Amps)	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Inductance	Shielding	Type	Tolerance
Murata Power Solutions Inc. LQH43CN2R7M33L	69 mOhm	50 MHz	1 MHz	1812	4532 Metric	1.8 A	Surface Mount	1812 (4532 Metric)	3.2 mm	0.177 in	4.5 mm	0.126 "	85 °C	-40 °C	Ferrite	2.7 µH	Unshielded	Drum Core Wirewound	20 %
Murata Power Solutions Inc. LQH43CN2R2M33L	61 mOhm	60 MHz	1 MHz	1812	4532 Metric	2.1 A	Surface Mount	1812 (4532 Metric)	3.2 mm	0.177 in	4.5 mm	0.126 "	85 °C	-40 °C	Ferrite	2.2 µH	Unshielded	Drum Core Wirewound	20 %
Murata Power Solutions Inc. LQH43CN331K03L		3.6 MHz	1 MHz			100 mA	Surface Mount	1812 (4532 Metric)	3.2 mm	0.177 in	4.5 mm	0.126 "	85 °C	-40 °C	Ferrite	330 µH	Unshielded	Drum Core Wirewound	10 %
Murata Power Solutions Inc. LQH43CN101K03L	2.2 Ohm	6.8 MHz	1 MHz				Surface Mount	1812 (4532 Metric)	3.2 mm	0.177 in	4.5 mm	0.126 "	85 °C	-40 °C	Ferrite	100 µH	Unshielded	Drum Core Wirewound	10 %
Murata Power Solutions Inc. LQH43CN1R0M03L	80 mOhm	100 MHz	1 MHz			1.08 A	Surface Mount	1812 (4532 Metric)	3.2 mm	0.177 in	4.5 mm	0.126 "	85 °C	-40 °C	Ferrite	1 µH	Unshielded	Drum Core Wirewound	20 %
Murata Power Solutions Inc. LQH43CN100K03L	240 mOhm	23 MHz	1 MHz			650 mA	Surface Mount	1812 (4532 Metric)	3.2 mm	0.177 in	4.5 mm	0.126 "	85 °C	-40 °C	Ferrite	10 µH	Unshielded	Drum Core Wirewound	10 %
Murata Power Solutions Inc. LQH43CN3R3M03L	130 mOhm	47 MHz	1 MHz			800 mA	Surface Mount	1812 (4532 Metric)	3.2 mm	0.177 in	4.5 mm	0.126 "	85 °C	-40 °C	Ferrite	3.3 µH	Unshielded	Drum Core Wirewound	20 %
Murata Power Solutions Inc. LQH43CN4R7M03L	150 mOhm	35 MHz	1 MHz			750 mA	Surface Mount	1812 (4532 Metric)	3.2 mm	0.177 in	4.5 mm	0.126 "	85 °C	-40 °C	Ferrite	4.7 ÁH	Unshielded	Drum Core Wirewound	20 %
Murata Power Solutions Inc. LQH43CNR82M33L	35 mOhm	130 MHz	1 MHz	1812	4532 Metric	2.8 A	Surface Mount	1812 (4532 Metric)	3.2 mm	0.177 in	4.5 mm	0.126 "	85 °C	-40 °C	Ferrite	820 nH	Unshielded	Drum Core Wirewound	20 %
Murata Power Solutions Inc. LQH43CN1R5M33L	47 mOhm	80 MHz	1 MHz	1812	4532 Metric	2.45 A	Surface Mount	1812 (4532 Metric)	3.2 mm	0.177 in	4.5 mm	0.126 "	85 °C	-40 °C	Ferrite	1.5 µH	Unshielded	Drum Core Wirewound	20 %
