Tf20 Series Series

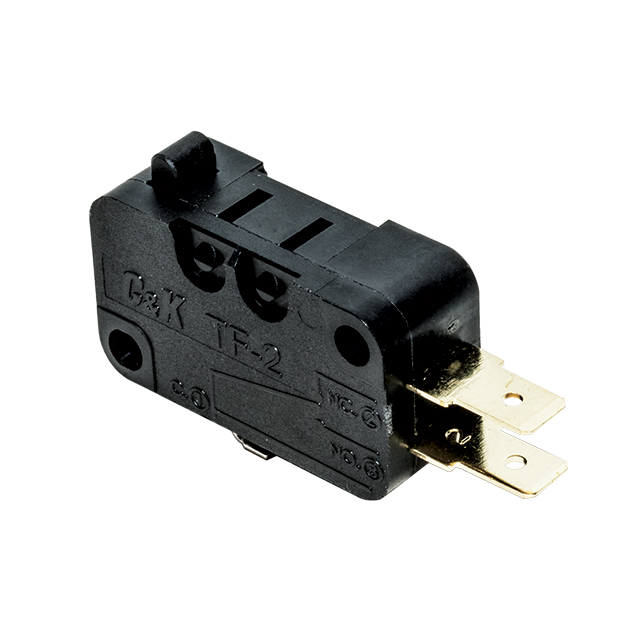

Mid Size Snap-acting Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Mid Size Snap-acting Switch

Part	Operating Force	Current Rating (Amps)	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Release Force	Actuator Type	Termination Style	Voltage Rating - AC	Switch Function	Pretravel	Pretravel	Electrical Life	Operating Position	Operating Position	Differential Travel	Differential Travel	Overtravel	Overtravel	Mounting Type	Differential Travel	Operating Position [custom]
Littelfuse/Commercial Vehicle Products TF2EEH8VA155AC	180 gf	6 A	SPDT	85 °C	-40 °C	25 gf	Lever Roller	Quick Connect - 0.250" (6.3mm)	125 V	On-Mom	4.2 mm	0.165 in	10000 Cycles	20.7 mm	0.815 in	0.049 "	1.25 mm	1.6 mm	0.063 in	Chassis Mount
Littelfuse/Commercial Vehicle Products TF2CHK6SP0040C	75 gf	10 A	SPDT	85 °C	-40 °C	14 gf	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	125 V	On-Mom	1.72 mm	0.068 in	10000 Cycles	14.7 mm	0.579 in		0.4 mm	0.79 mm	0.031 in	Chassis Mount	0.016 "
Littelfuse/Commercial Vehicle Products TF2CFH8SP004AC		6 A	SPDT	85 °C	-40 °C	7 gf	Round (Pin Plunger)	Quick Connect - 0.250" (6.3mm)	125 V	On-Mom	1.72 mm	0.068 in	10000 Cycles	14.7 mm	0.579 in		0.4 mm	0.79 mm	0.031 in	Chassis Mount	0.016 "

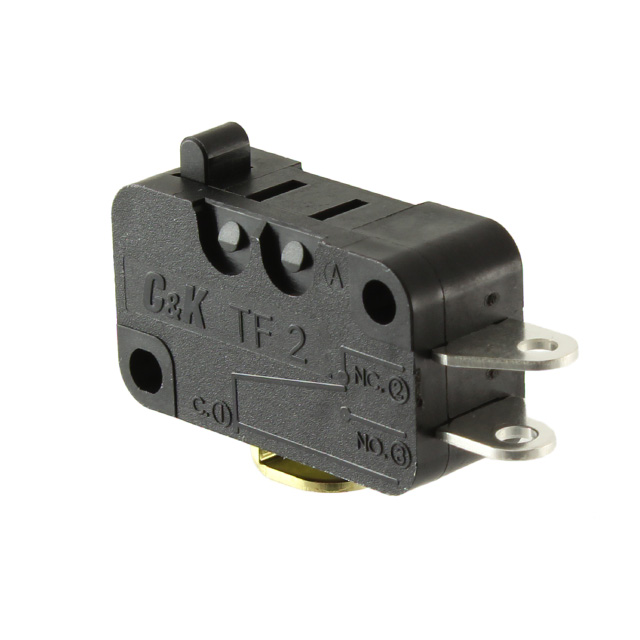

Littelfuse/Commercial Vehicle Products TF2CFF5SP0010C		100 mA	SPDT	85 °C	-40 °C	7 gf	Round (Pin Plunger)	Solder Lug	125 V	On-Mom	1.72 mm	0.068 in	10000 Cycles	14.7 mm	0.579 in		0.4 mm	0.79 mm	0.031 in	Chassis Mount	0.016 "
Littelfuse/Commercial Vehicle Products TF2EEK6VA155AC	180 gf	10 A	SPDT	85 °C	-40 °C	25 gf	Lever Roller	Quick Connect - 0.250" (6.3mm)	125 V	On-Mom	4.2 mm	0.165 in	10000 Cycles	20.7 mm	0.815 in	0.049 "	1.25 mm	1.6 mm	0.063 in	Chassis Mount

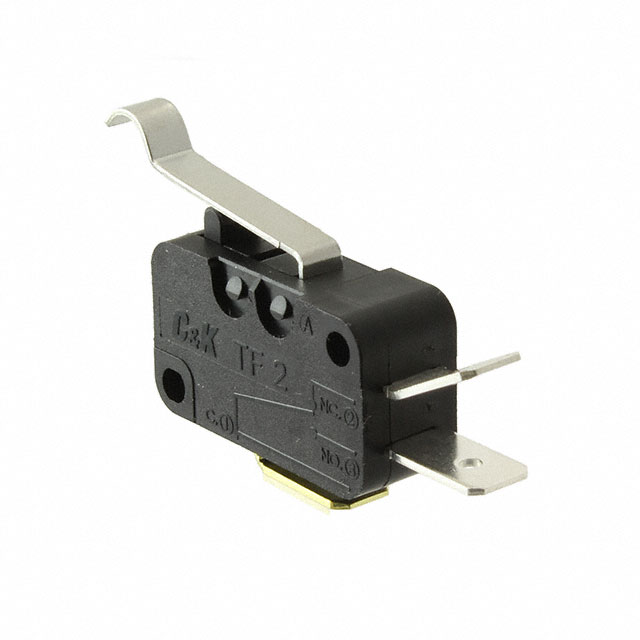

Littelfuse/Commercial Vehicle Products TF2CFF5ST144AC	28 gf	100 mA	SPDT	85 °C	-40 °C	3 gf	Lever Simulated Roller	Quick Connect - 0.250" (6.3mm)	125 V	On-Mom	5.5 mm	0.218 in	10000 Cycles	18.7 mm			1.1 mm	1.4 mm	0.055 in	Chassis Mount	0.045 in	0.738 in

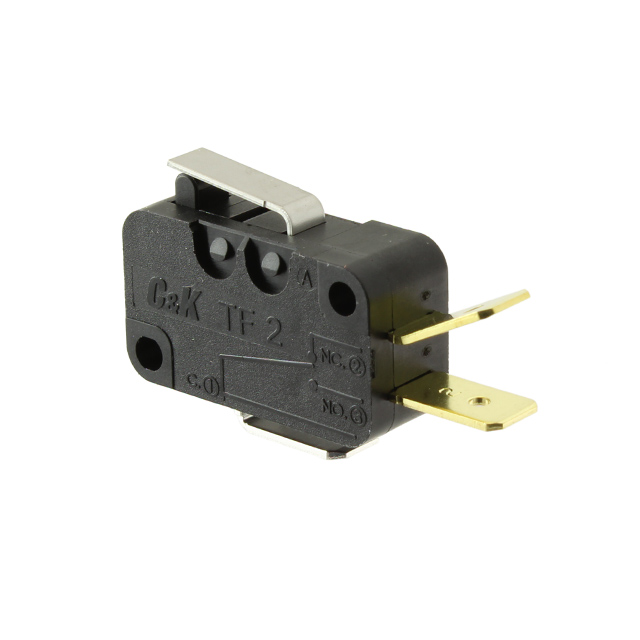

Littelfuse/Commercial Vehicle Products TF2CFH8ST104AC		6 A	SPDT	85 °C	-40 °C	6 gf	Lever Straight	Quick Connect - 0.250" (6.3mm)	125 V	On-Mom	2.8 mm	0.11 in	10000 Cycles	15.3 mm	0.602 "		0.5 mm	0.6 mm	0.025 "	Chassis Mount	0.02 in
Littelfuse/Commercial Vehicle Products TF2CFH8SP0010C		6 A	SPDT	85 °C	-40 °C	7 gf	Round (Pin Plunger)	Solder Lug	125 V	On-Mom	1.72 mm	0.068 in	10000 Cycles	14.7 mm	0.579 in		0.4 mm	0.79 mm	0.031 in	Chassis Mount	0.016 "
Littelfuse/Commercial Vehicle Products TF2CHK6SP0060C	75 gf	10 A	SPDT	85 °C	-40 °C	14 gf	Round (Pin Plunger)	Screw Terminal	125 V	On-Mom	1.72 mm	0.068 in	10000 Cycles	14.7 mm	0.579 in		0.4 mm	0.79 mm	0.031 in	Chassis Mount	0.016 "
Littelfuse/Commercial Vehicle Products TF2CHK6ST154AC	50 gf	10 A	SPDT	85 °C	-40 °C	7 gf	Lever Straight	Quick Connect - 0.250" (6.3mm)	125 V	On-Mom	3.6 mm	0.14 in	10000 Cycles	15.2 mm	0.6 in		0.76 mm	1.3 mm	0.051 in	Chassis Mount	0.03 in

Catalog

Mid Size Snap-acting Switch

Key Features

• Broad range of operating forces

• Ratings up to 10 A

• Wide variety of actuator styles

Description

Designers of motor controls, thermostatics and portable tools turn to C&K’s TF2 series because of its reputation for long-lasting performance. The TF2 series is a mid size snap-acting switch that features a broad range of operating forces, a wide variety of actuator styles and ratings of up to 10A.
