122-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC DIP SOCKET 18POS GOLD

Part	Current Rating (Amps)	Termination Post Length	Termination Post Length	Contact Material - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Features	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Type	Type	Type	Contact Material - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid)	Contact Finish - Mating	Housing Material	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Type [custom]	Type [custom]
Mill-Max Manufacturing Corp. 122-13-318-41-001000	3 A	9.4 mm	0.37 in	Beryllium Copper	Through Hole	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	10 Áin	0.25 çm	Gold	7.62 mm	0.3 in	DIP	Brass Alloy	0.76 Ám	30 Áin	18	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester

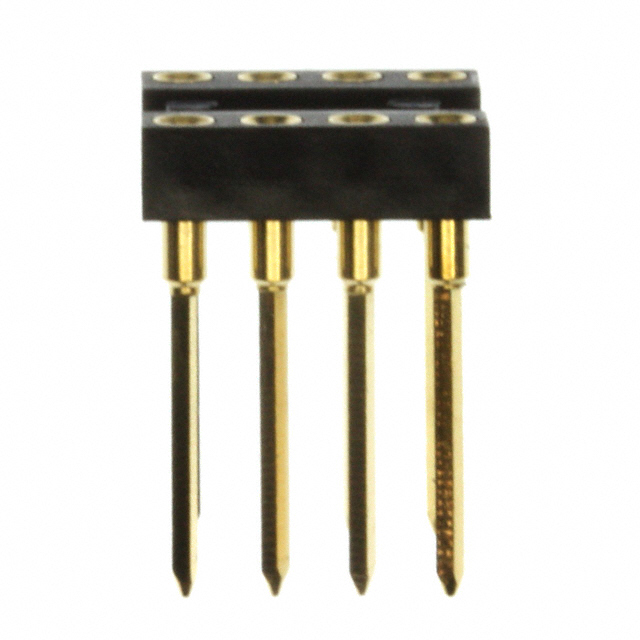

Mill-Max Manufacturing Corp. 122-13-308-41-001000	3 A	9.4 mm	0.37 in	Beryllium Copper	Through Hole	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	10 Áin	0.25 çm	Gold	7.62 mm	0.3 in	DIP	Brass Alloy	0.76 Ám	30 Áin	8	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	4
Mill-Max Manufacturing Corp. 122-13-632-41-001000	3 A	9.4 mm	0.37 in	Beryllium Copper	Through Hole	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	10 Áin	0.25 çm	Gold			DIP	Brass Alloy	0.76 Ám	30 Áin	32	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 122-13-320-41-801000	3 A	9.4 mm	0.37 in	Beryllium Copper	Through Hole	0.1 "	2.54 mm	Decoupling Capacitor Open Frame	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	10 Áin	0.25 çm	Gold	7.62 mm	0.3 in	DIP	Brass Alloy	0.76 Ám	30 Áin	20	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
Mill-Max Manufacturing Corp. 122-13-420-41-001000	3 A	9.4 mm	0.37 in	Beryllium Copper	Through Hole	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	10 Áin	0.25 çm	Gold		0.4 in	DIP	Brass Alloy	0.76 Ám	30 Áin	20	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
Mill-Max Manufacturing Corp. 122-13-314-41-801000	3 A	9.4 mm	0.37 in	Beryllium Copper	Through Hole	0.1 "	2.54 mm	Decoupling Capacitor Open Frame	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	10 Áin	0.25 çm	Gold	7.62 mm	0.3 in	DIP	Brass Alloy	0.76 Ám	30 Áin	14	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
Mill-Max Manufacturing Corp. 122-13-652-41-001000	3 A	9.4 mm	0.37 in	Beryllium Copper	Through Hole	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	10 Áin	0.25 çm	Gold			DIP	Brass Alloy	0.76 Ám	30 Áin		Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 122-13-624-41-001000	3 A	9.4 mm	0.37 in	Beryllium Copper	Through Hole	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	10 Áin	0.25 çm	Gold			DIP	Brass Alloy	0.76 Ám	30 Áin	24	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	12	2	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 122-13-428-41-001000	3 A	9.4 mm	0.37 in	Beryllium Copper	Through Hole	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	10 Áin	0.25 çm	Gold		0.4 in	DIP	Brass Alloy	0.76 Ám	30 Áin	28	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
Mill-Max Manufacturing Corp. 122-13-310-41-001000	3 A	9.4 mm	0.37 in	Beryllium Copper	Through Hole	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	10 Áin	0.25 çm	Gold	7.62 mm	0.3 in	DIP	Brass Alloy	0.76 Ám	30 Áin	10	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	5
