SHCS03 Series
Manufacturer: Altech Corporation
Beta
⌘K

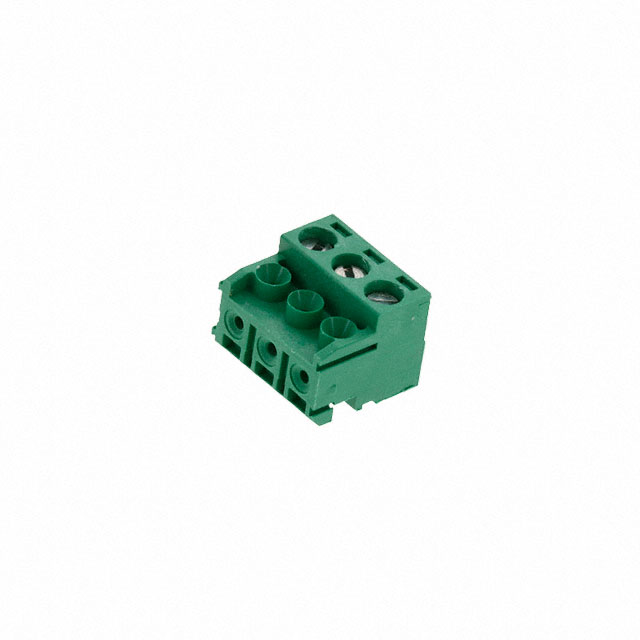

TERM BLOCK PLUG 3POS 5MM
| Part | Torque - Screw | Contact Material | Material Flammability Rating | Wire Strip Length | Insulation Height | Housing Material | Wire Gauge or Range - mm² (Maximum) | Wire Gauge or Range - mm² (Minimum) | Screw Size | Positions Per Level | Termination Style | Number of Positions | Contact Mating Finish | Current - UL | Mounting Type | Voltage - UL | Voltage - IEC | Color | Type | Number of Levels | Operating Temperature (Min) | Operating Temperature (Max) | Pitch | Plug Wire Entry Options | Current - IEC | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | 0.51 Nm | Copper | UL94 V-0 | 7 mm | 0.453 in | Nylon PA Polyamide | 4 mm² | 0.25 mm² | M3 | 3 | Screw - Rising Cage Clamp | 3 | Nickel | 15 A | Free Hanging (In-Line) | 300 V | 250 V | Green | Plug for Unshrouded Header | 1 | -30 °C | 105 °C | 0.197 in | 180° 90° | 15 A | 30 AWG | 14 AWG |
