BZV03/Z Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

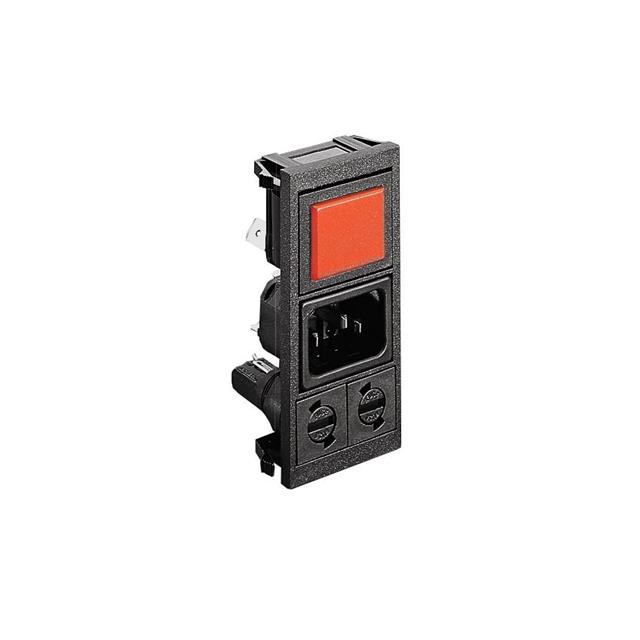

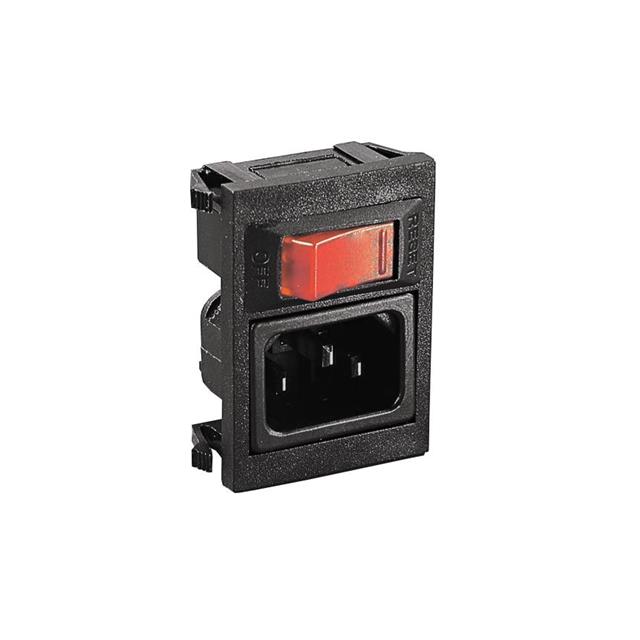

POWER ENTRY MODULE UNFILTERED M 3 POS SWITCH ST 1 PORT
| Part | Switch Features | Connector Style | Filter Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Accomodates a Fuse | Current Rating - Appliance Inlet | Voltage Rating - Appliance Inlet | Material Flammability Rating | Mounting Type | Connector Type | Approval Agency | Termination | Termination | Termination | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Fuse Holder, Drawer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Switch On-Off | IEC 320-C14 | Unfiltered - Commercial | 34.4 mm | 76.5 mm | 10 A | 250 VAC | UL94 V-0 | Panel Mount Snap-In | Receptacle Male Blades - Module | CSA ENEC UL VDE | 6.3 mm | Quick Connect | 0.25 " | 0.118 in | 3 mm | 1 mm | 0.039 in | Twin Fused | |
 BULGIN LIMITED | Switch On-Off | IEC 320-C14 | Unfiltered - Commercial | 34.4 mm | 76.5 mm | 10 A | 250 VAC | UL94 V-0 | Panel Mount Snap-In | Receptacle Male Blades - Module | CSA ENEC UL VDE | 6.3 mm | Quick Connect | 0.25 " | 0.118 in | 3 mm | 1 mm | 0.039 in | Twin Fused | |
 BULGIN LIMITED | IEC 320-C14 | Unfiltered - Commercial | 34.4 mm | 48.4 mm | 10 A | 250 VAC | UL94 V-0 | Panel Mount Snap-In | Receptacle Male Blades - Module | CSA ENEC UL VDE | 6.3 mm | Quick Connect | 0.25 " | 0.118 in | 3 mm | 1 mm | 0.039 in | Twin Fused | ||
 BULGIN LIMITED | Switch On-Off | IEC 320-C14 | Unfiltered - Commercial | 34.4 mm | 48.4 mm | 10 A | 250 VAC | UL94 V-0 | Panel Mount Snap-In | Receptacle Male Blades - Module | CSA ENEC UL VDE | 6.3 mm | Quick Connect | 0.25 " | 0.118 in | 3 mm | 1 mm | 0.039 in | ||
BULGIN LIMITED | Illuminated Switch On-Off | IEC 320-C14 | Unfiltered - Commercial | 34.4 mm | 76.5 mm | 10 A | 250 VAC | UL94 V-0 | Panel Mount Snap-In | Receptacle Male Blades - Module | CSA ENEC UL VDE | 6.3 mm | Quick Connect | 0.25 " | 0.118 in | 3 mm | 1 mm | 0.039 in | Twin Fused | |
BULGIN LIMITED | Switch On-Off | IEC 320-C14 | Unfiltered - Commercial | 34.4 mm | 48.4 mm | 10 A | 250 VAC | UL94 V-0 | Panel Mount Snap-In | Receptacle Male Blades - Module | CSA ENEC UL VDE | 6.3 mm | Quick Connect | 0.25 " | 0.118 in | 3 mm | 1 mm | 0.039 in | ||
BULGIN LIMITED | Switch On-Off | IEC 320-C14 | Unfiltered - Commercial | 34.4 mm | 76.5 mm | 10 A | 250 VAC | UL94 V-0 | Panel Mount Snap-In | Receptacle Male Blades - Module | CSA ENEC UL VDE | 6.3 mm | Quick Connect | 0.25 " | 0.118 in | 3 mm | 1 mm | 0.039 in | Twin Fused |
