MCDV Series

Catalog

PLUGGABLE TERMINAL BLOCKS 13 POS 3.81MM PITCH THROUGH HOLE HEADER

Part	Termination Style	Color	Type	Mounting Type	Voltage - IEC	Number of Positions	Number of Levels	Positions Per Level	Header Orientation	Current - UL	Current - IEC	Contact Mating Finish	Pitch	Pitch	Voltage - UL	Features	Insulation Height	Insulation Height [z]	Contact Tail Length [x]	Contact Tail Length [x]	Housing Material	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Insulation Height [z]

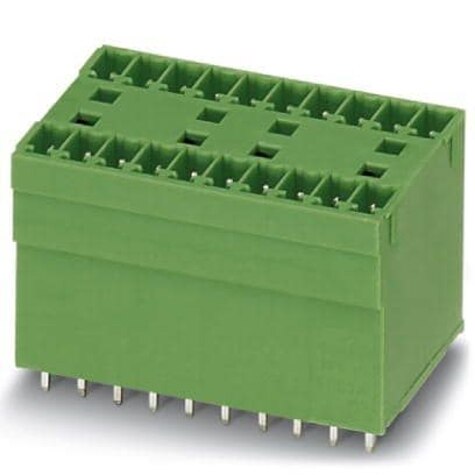

Phoenix Contact 1847848	Solder	Green	Header Male Pins Shrouded (4 Side)	Through Hole	320 V	26	2	13	Vertical	8 A	8 A	Tin	3.81 mm	0.15 in	300 V
Phoenix Contact 1830499	Solder	Green	Header Male Pins Shrouded (4 Side)	Through Hole	320 V	22	2	11	Vertical	8 A	8 A	Tin	3.81 mm	0.15 in	300 V
Phoenix Contact 1830347	Solder	Green	Header Male Pins Shrouded (4 Side)	Through Hole	320 V	22	2	11	Vertical	8 A	8 A	Tin	3.81 mm	0.15 in	300 V	Mating Flange
Phoenix Contact 1842801	Solder	Green	Header Male Pins Shrouded (4 Side)	Through Hole	320 V	12	2	6	Vertical	8 A	8 A	Tin	3.81 mm	0.15 in	300 V	Mating Flange	21.89 mm	0.862 in	3.4 mm	0.134 in	Polyamide (PA) Nylon	UL94 V-0
Phoenix Contact 1830376	Solder	Green	Header Male Pins Shrouded (4 Side)	Through Hole	320 V	28	2	14	Vertical	8 A	8 A	Tin	3.81 mm	0.15 in	300 V	Mating Flange
Phoenix Contact 1918298	Solder	Black	Header Male Pins Shrouded (4 Side)	Through Hole	160 V	12	2	6	Vertical	8 A	8 A	Tin	3.81 mm	0.15 in	300 V	Mating Flange	21.89 mm	0.862 in	3.4 mm	0.134 in	Polyamide (PA) Nylon
Phoenix Contact 1842872	Solder	Green	Header Male Pins Shrouded (4 Side)	Through Hole	320 V	26	2	13	Vertical	8 A	8 A	Tin	3.81 mm	0.15 in	300 V	Mating Flange	21.89 mm	0.862 in	3.4 mm	0.134 in	Polyamide (PA) Nylon	UL94 V-0

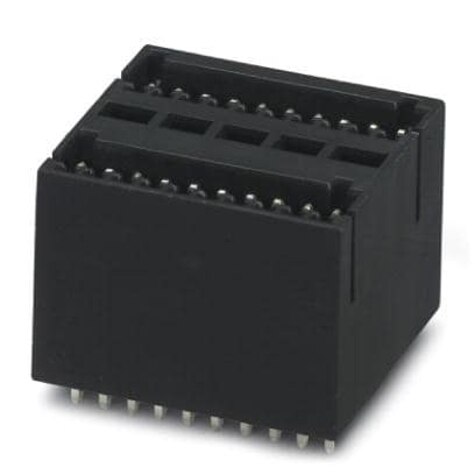

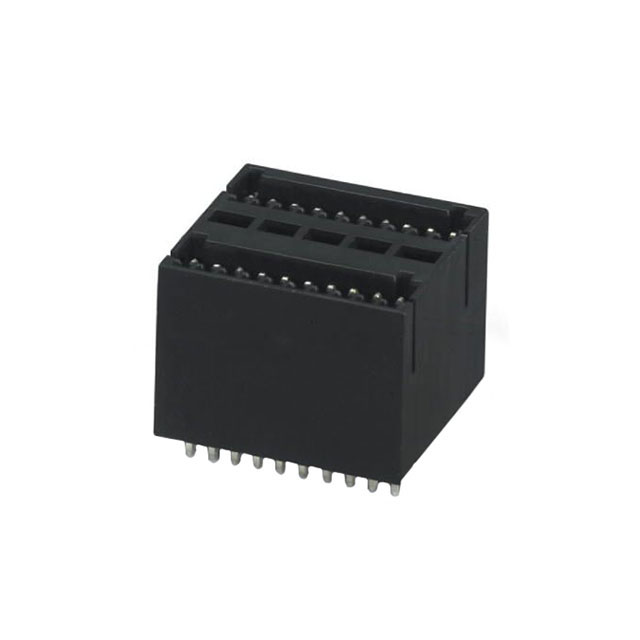

Phoenix Contact 1961326	Solder	Black	Header Male Pins Shrouded (4 Side)	Through Hole	160 V	20	2	10	Vertical		4 A	Tin	2.5 mm	0.098 in				0.689 in			Polyamide (PA) Nylon	UL94 V-0	0.138 in	3.5 mm	17.5 mm
Phoenix Contact 1842843	Solder	Green	Header Male Pins Shrouded (4 Side)	Through Hole	320 V	20	2	10	Vertical	8 A	8 A	Tin	3.81 mm	0.15 in	300 V	Mating Flange	21.89 mm	0.862 in	3.4 mm	0.134 in	Polyamide (PA) Nylon	UL94 V-0
Phoenix Contact 1830538	Solder	Green	Header Male Pins Shrouded (4 Side)	Through Hole	320 V	30	2	15	Vertical	8 A	8 A	Tin	3.81 mm	0.15 in	300 V		21.89 mm	0.862 in	3.4 mm	0.134 in	Polyamide (PA) Nylon	UL94 V-0
