1761607 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC LOW PRO HDR 24P RA LAT

Part	Mounting Type	Material Flammability Rating	Current Rating (Amps)	Contact Type	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Color	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Operating Temperature [Min]	Operating Temperature [Max]	Features	Termination	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Finish - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Material	Voltage Rating	Insulation Height	Insulation Height	Number of Rows	Contact Shape	Number of Positions Loaded	Connector Type	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post
TE Connectivity Raychem Cable Protection 2-1761607-8	Through Hole Right Angle	UL94 V-0	1 A	Male Pin	0.102 in	2.6 mm	24	Blue	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Cable/Wire	-65 ░C	105 ░C	Keying Slot	Solder	6.02 mm	0.237 in	Shrouded - 4 Wall	Tin	Gold or Gold-Palladium	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT)	Phosphor Bronze	250 VAC	0.362 in	9.2 mm	2	Square	All	Header	Latch Lock/Eject Hooks Long	2.54 µm	100 µin
TE Connectivity Raychem Cable Protection 2-1761607-2	Through Hole Right Angle	UL94 V-0	1 A	Male Pin	0.102 in	2.6 mm	8	Blue	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Cable/Wire	-65 ░C	105 ░C	Keying Slot	Solder	6.02 mm	0.237 in	Shrouded - 4 Wall	Tin	Gold or Gold-Palladium	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT)	Phosphor Bronze	250 VAC	0.362 in	9.2 mm	2	Square	All	Header	Latch Lock/Eject Hooks Long	2.54 µm	100 µin
TE Connectivity Raychem Cable Protection 3-1761607-1	Through Hole Right Angle	UL94 V-0	1 A	Male Pin	0.102 in	2.6 mm	34	Blue	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Cable/Wire	-65 ░C	105 ░C	Keying Slot	Solder	6.02 mm	0.237 in	Shrouded - 4 Wall	Tin	Gold or Gold-Palladium	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT)	Phosphor Bronze	250 VAC	0.362 in	9.2 mm	2	Square	All	Header	Latch Lock/Eject Hooks Long	2.54 µm	100 µin

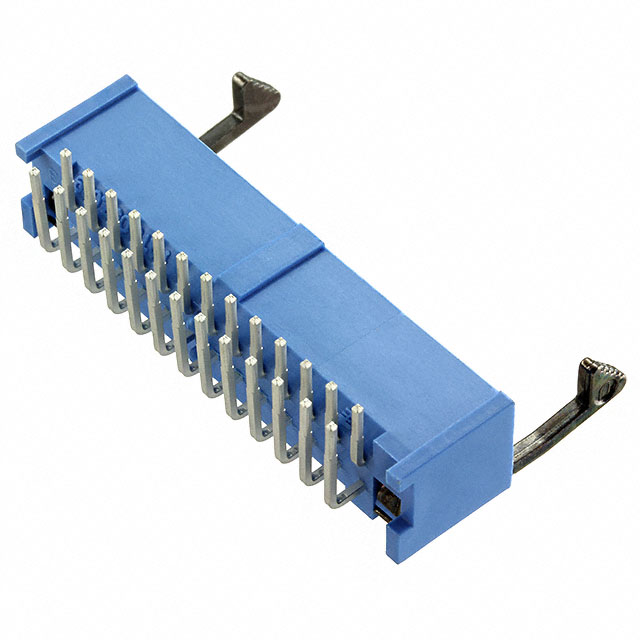

TE Connectivity Raychem Cable Protection 2-1761607-9	Through Hole Right Angle	UL94 V-0	1 A	Male Pin	0.102 in	2.6 mm	26	Blue	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Cable/Wire	-65 ░C	105 ░C	Keying Slot	Solder	6.02 mm	0.237 in	Shrouded - 4 Wall	Tin	Gold or Gold-Palladium	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT)	Phosphor Bronze	250 VAC	0.362 in	9.2 mm	2	Square	All	Header	Latch Lock/Eject Hooks Long	2.54 µm	100 µin
TE Connectivity Raychem Cable Protection 3-1761607-7	Through Hole Right Angle	UL94 V-0	1 A	Male Pin	0.102 in	2.6 mm	64	Blue	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Cable/Wire	-65 ░C	105 ░C	Keying Slot	Solder	6.02 mm	0.237 in	Shrouded - 4 Wall	Tin	Gold or Gold-Palladium	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT)	Phosphor Bronze	250 VAC	0.362 in	9.2 mm	2	Square	All	Header	Latch Lock/Eject Hooks Long	2.54 µm	100 µin

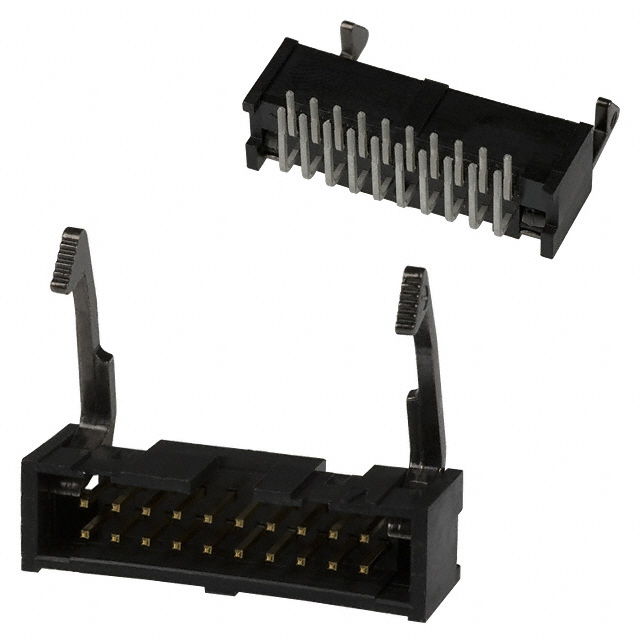

TE Connectivity Raychem Cable Protection 1761607-7	Through Hole Right Angle	UL94 V-0	1 A	Male Pin	0.102 in	2.6 mm	20	Black	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Cable/Wire	-65 ░C	105 ░C	Keying Slot	Solder	6.02 mm	0.237 in	Shrouded - 4 Wall	Tin	Gold or Gold-Palladium	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT)	Phosphor Bronze	250 VAC	0.362 in	9.2 mm	2	Square	All	Header	Latch Lock/Eject Hooks Long	2.54 µm	100 µin
TE Connectivity Raychem Cable Protection 2-1761607-5	Through Hole Right Angle	UL94 V-0	1 A	Male Pin	0.102 in	2.6 mm	14	Blue	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Cable/Wire	-65 ░C	105 ░C	Keying Slot	Solder	6.02 mm	0.237 in	Shrouded - 4 Wall	Tin	Gold or Gold-Palladium	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT)	Phosphor Bronze	250 VAC	0.362 in	9.2 mm	2	Square	All	Header	Latch Lock/Eject Hooks Long	2.54 µm	100 µin

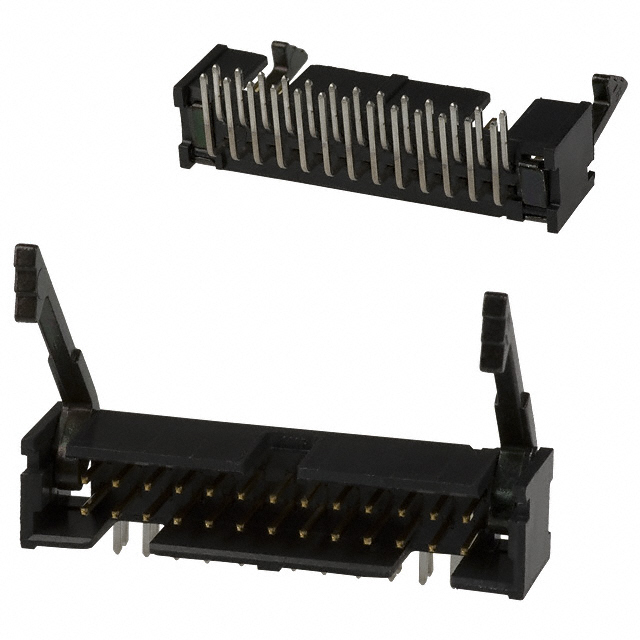

TE Connectivity Raychem Cable Protection 1761607-9	Through Hole Right Angle	UL94 V-0	1 A	Male Pin	0.102 in	2.6 mm	26	Black	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Cable/Wire	-65 ░C	105 ░C	Keying Slot	Solder	6.02 mm	0.237 in	Shrouded - 4 Wall	Tin	Gold or Gold-Palladium	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT)	Phosphor Bronze	250 VAC	0.362 in	9.2 mm	2	Square	All	Header	Latch Lock/Eject Hooks Long	2.54 µm	100 µin

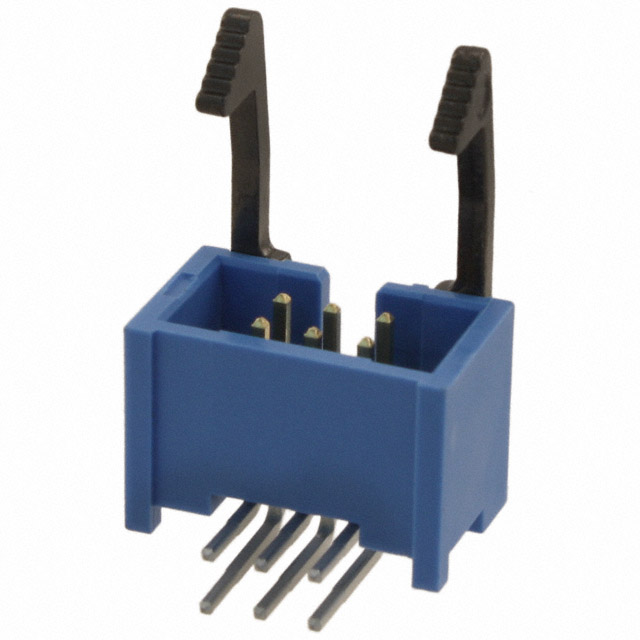

TE Connectivity Raychem Cable Protection 2-1761607-1	Through Hole Right Angle	UL94 V-0	1 A	Male Pin	0.102 in	2.6 mm	6	Blue	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Cable/Wire	-65 ░C	105 ░C	Keying Slot	Solder	6.02 mm	0.237 in	Shrouded - 4 Wall	Tin	Gold or Gold-Palladium	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT)	Phosphor Bronze	250 VAC	0.362 in	9.2 mm	2	Square	All	Header	Latch Lock/Eject Hooks Long	2.54 µm	100 µin
TE Connectivity Raychem Cable Protection 3-1761607-6	Through Hole Right Angle	UL94 V-0	1 A	Male Pin	0.102 in	2.6 mm	60	Blue	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Cable/Wire	-65 ░C	105 ░C	Keying Slot	Solder	6.02 mm	0.237 in	Shrouded - 4 Wall	Tin	Gold or Gold-Palladium	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT)	Phosphor Bronze	250 VAC	0.362 in	9.2 mm	2	Square	All	Header	Latch Lock/Eject Hooks Long	2.54 µm	100 µin
