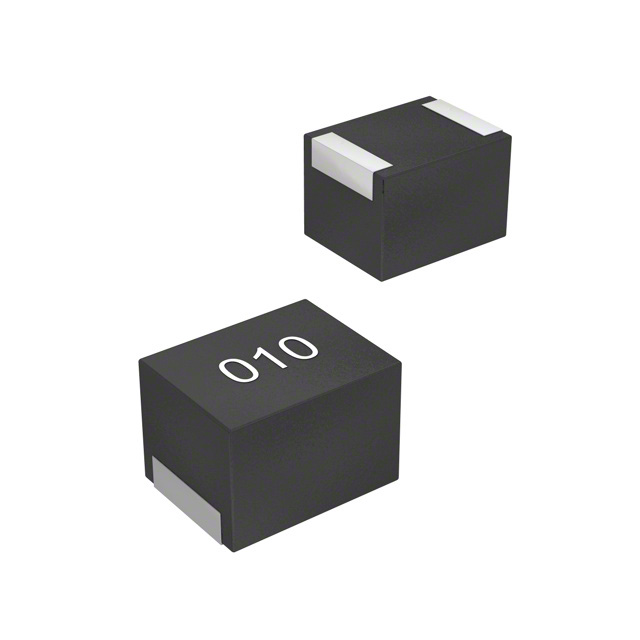

CMH322522 Series

Catalog

INDUCTOR RF CHIP SHIELDED WIREWOUND 3.3UH 10% 7.96MHZ 30Q-FACTOR FERRITE 0.26A 1.2OHM DCR 1210 T/R

Part	Inductance Frequency - Test	Supplier Device Package	Frequency - Self Resonant	Package / Case	Package / Case	Inductance	Material - Core	Q @ Freq	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Current Rating (Amps)	Mounting Type	DC Resistance (DCR) [Max]	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. CMH322522-3R3KL	7.96 MHz	1210	55 MHz	1210	3225 Metric	3.3 µH	Ferrite	7.96 MHz 30	2.4 mm	0.094 in	Shielded	0.26 A	Surface Mount	1.2 Ohm	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	-55 C	125 °C	10 %
Bourns Inc. CMH322522-8R2KL	7.96 MHz	1210	30 MHz	1210	3225 Metric	8.2 µH	Ferrite	7.96 MHz 30	2.4 mm	0.094 in	Shielded	0.17 A	Surface Mount	2 Ohm	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	-55 C	125 °C	10 %
Bourns Inc. CMH322522-R68ML	25.2 MHz	1210	160 MHz	1210	3225 Metric	0.68 µH	Ferrite		2.4 mm	0.094 in	Shielded	0.45 A	Surface Mount		Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	-55 C	125 °C	20 %	30	25.2 MHz
Bourns Inc. CMH322522-820KL	2.52 MHz	1210	10 MHz	1210	3225 Metric	82 µH	Ferrite	2.52 MHz 30	2.4 mm	0.094 in	Shielded	45 mA	Surface Mount	10 Ohm	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	-55 C	125 °C	10 %
Bourns Inc. CMH322522-270KL	2.52 MHz	1210	18 MHz	1210	3225 Metric	27 µH	Ferrite	2.52 MHz 30	2.4 mm	0.094 in	Shielded	80 mA	Surface Mount	5 Ohm	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	-55 C	125 °C	10 %
Bourns Inc. CMH322522-181KL	0.796 MHz	1210	6 MHz	1210	3225 Metric	180 µH	Ferrite		2.4 mm	0.094 in	Shielded	60 mA	Surface Mount	17 Ohm	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	-55 C	125 °C	10 %	20		796 kHz
Bourns Inc. CMH322522-R47ML	25.2 MHz	1210	220 MHz	1210	3225 Metric	470 nH	Ferrite		2.4 mm	0.094 in	Shielded	0.45 A	Surface Mount	500 mOhm	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	-55 C	125 °C	20 %	30	25.2 MHz
Bourns Inc. CMH322522-2R7KL	7.96 MHz	1210		1210	3225 Metric	2.7 µH	Ferrite	7.96 MHz 30	2.4 mm	0.094 in	Shielded	0.29 A	Surface Mount	1.1 Ohm	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	-55 C	125 °C	10 %
Bourns Inc. CMH322522-100KL	2.52 MHz	1210	28 MHz	1210	3225 Metric	10 µH	Ferrite	2.52 MHz 30	2.4 mm	0.094 in	Shielded	150 mA	Surface Mount	2.1 Ohm	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	-55 C	125 °C	10 %
Bourns Inc. CMH322522-1R5KL	7.96 MHz	1210	85 MHz	1210	3225 Metric	1.5 µH	Ferrite	7.96 MHz 30	2.4 mm	0.094 in	Shielded	0.37 A	Surface Mount	850 mOhm	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	-55 C	125 °C	10 %
