DFE2MCAH Series

Catalog

INDUCTOR, 1UH, SHIELDED, 2.4A ROHS COMPLIANT: YES

Part	Package / Case	Current - Saturation (Isat)	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Tolerance	Inductance	Current Rating (Amps)	Material - Core	Shielding	Inductance Frequency - Test	Type	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type

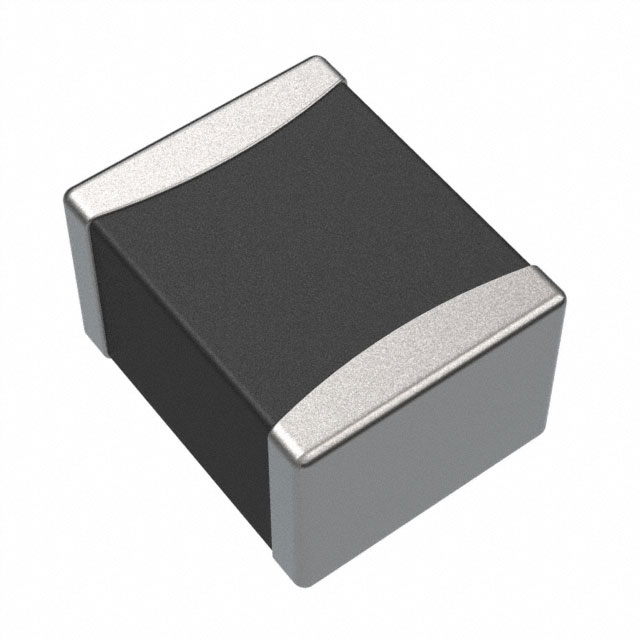

Murata Electronics DFE2MCAH1R0MJ0L	0806 (2016 Metric)	2.5 A	-40 C	150 °C	0806	1.6 mm	0.079 in	0.063 "	2 mm	AEC-Q200	20 %	1 µH	2.4 A	Metal	Shielded	1 MHz	Drum Core Wirewound	68 mOhm	1.2 mm	0.047 "	Surface Mount
Murata Electronics DFE2MCAHR24MJ0L	0806 (2016 Metric)	5 A	-40 C	150 °C	0806	1.6 mm	0.079 in	0.063 "	2 mm	AEC-Q200	20 %	240 nH	4.2 A	Metal	Shielded	1 MHz	Drum Core Wirewound	25 mOhm	1.2 mm	0.047 "	Surface Mount
Murata Electronics DFE2MCAHR15MJ0L	0806 (2016 Metric)	6.1 A	-40 C	150 °C	0806	1.6 mm	0.079 in	0.063 "	2 mm	AEC-Q200	20 %	150 nH	4.8 A	Metal	Shielded	1 MHz	Drum Core Wirewound	21 mOhm	1.2 mm	0.047 "	Surface Mount
Murata Electronics DFE2MCAHR68MJ0L	0806 (2016 Metric)	3.1 A	-40 C	150 °C	0806	1.6 mm	0.079 in	0.063 "	2 mm	AEC-Q200	20 %	0.68 µH	3 A	Metal	Shielded	1 MHz	Drum Core Wirewound	42 mOhm	1.2 mm	0.047 "	Surface Mount
Murata Electronics DFE2MCAH2R2MJ0L	0806 (2016 Metric)	1.7 A	-40 C	150 °C	0806	1.6 mm	0.079 in	0.063 "	2 mm	AEC-Q200	20 %	2.2 µH	1.4 A	Metal	Shielded	1 MHz	Drum Core Wirewound	169 mOhm	1.2 mm	0.047 "	Surface Mount
