32952 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

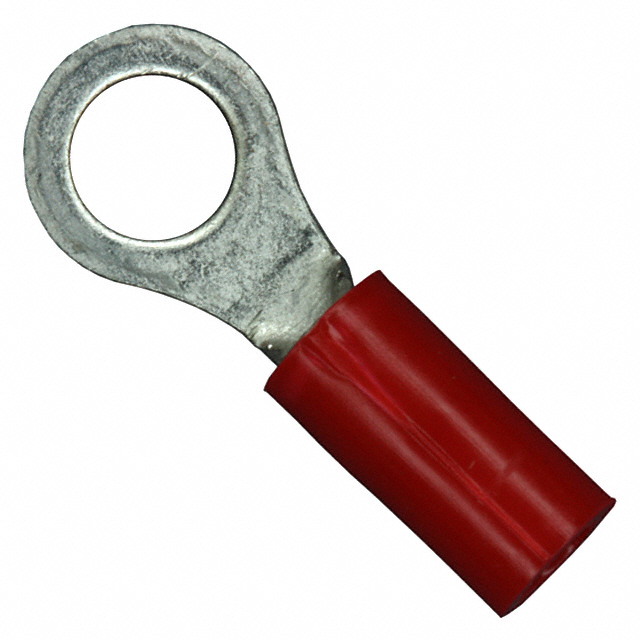

CONN RING CIRC 16-22AWG #10
| Part | Terminal Type | Contact Material | Features | Wire Gauge [Max] | Wire Gauge [Min] | Material - Insulation | Stud/Tab Size | Thickness | Thickness | Contact Finish | Insulation | Length - Overall | Length - Overall [x] | Width - Outer Edges [y] | Width - Outer Edges [y] | Termination | Mounting Type | Color | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Circular | Copper | Serrated Termination | 22 AWG | 16 AWG | Poly-Vinyl Chloride (PVC) | 10 Stud | 0.031 in | 0.79 mm | Tin | Insulated | 21.74 mm | 0.856 " | 7.92 mm | 0.312 in | Crimp | Free Hanging (In-Line) | Red | 2.03 mm | 3.18 mm | 0.125 " | 0.08 in |
