QYW09225024 Series
Manufacturer: YS TECH USA
Beta
⌘K

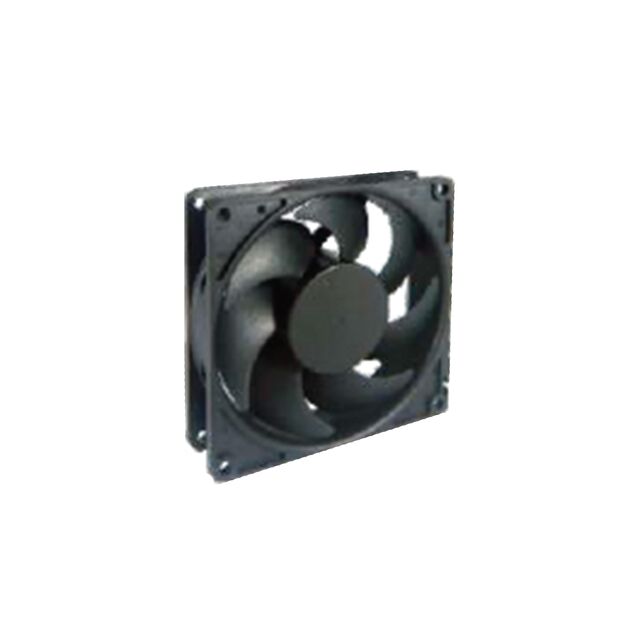

FAN AXIAL 92X25MM 24VDC WIRE
| Part | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Current Rating (Amps) | Material - Blade | Fan Type | Voltage - Rated | Power (Watts) | Width [y] | Bearing Type | Size / Dimension [y] | Size / Dimension [x] | Noise | Termination | Static Pressure | Static Pressure | Air Flow | Air Flow | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YS TECH USA | 26.4 VDC | 12 VDC | 80000 Hrs | 45 mA | Polybutylene Terephthalate (PBT) | Tubeaxial | 24 VDC | 1.08 W | 25 mm | Ball | 92 mm | 92 mm | 16.7 dB(A) | 2 Wire Leads | 0.083 in H2O | 20.6 Pa | 25.9 CFM | 0.725 m³/min | 2000 RPM |
YS TECH USA | 26.4 VDC | 12 VDC | 75000 Hrs | 100 mA | Polybutylene Terephthalate (PBT) | Tubeaxial | 24 VDC | 2.4 W | 25 mm | Ball | 92 mm | 92 mm | 35 dB | 2 Wire Leads | 0.272 in H2O | 67.7 Pa | 50.3 CFM | 1.41 mł/min | 4000 RPM |
