GW12RB Series

Catalog

ROCKER SWITCH, NON ILLUMINATED, SPDT, ON-NONE-ON, WHITE, THROUGH HOLE, 100 MA

Part	Mechanical Life	Electrical Life	Color - Actuator/Cap	Mounting Type	Voltage Rating - DC	Features	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Termination Style	Actuator Type	Current Rating (Amps)	Circuit	Actuator Marking	Approval Agency

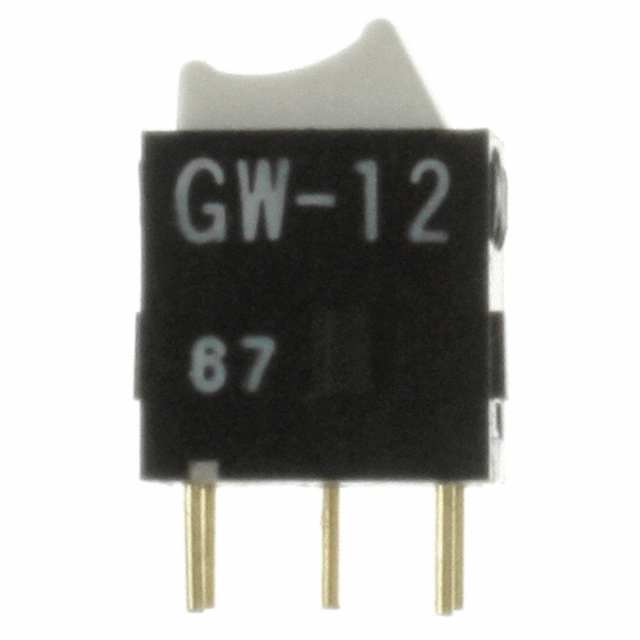

NKK Switches GW12RBP	50000 Cycles	50000 Cycles	White	Through Hole	28 V	Sealed - Flux Protection	28 V	85 °C	-30 ░C	On-On	PC Pin	Concave (Curved)	0.4 VA	SPDT	No Marking	CSA UL
NKK Switches GW12RBH	50000 Cycles	50000 Cycles	White	Right Angle Through Hole	28 V	Sealed - Flux Protection	28 V	85 °C	-30 ░C	On-On	PC Pin	Concave (Curved)	0.4 VA	SPDT	No Marking	CSA UL
NKK Switches GW12RBV	50000 Cycles	50000 Cycles	White	Right Angle Through Hole Vertical	28 V	Sealed - Flux Protection	28 V	85 °C	-30 ░C	On-On	PC Pin	Concave (Curved)	0.4 VA	SPDT	No Marking	CSA UL
