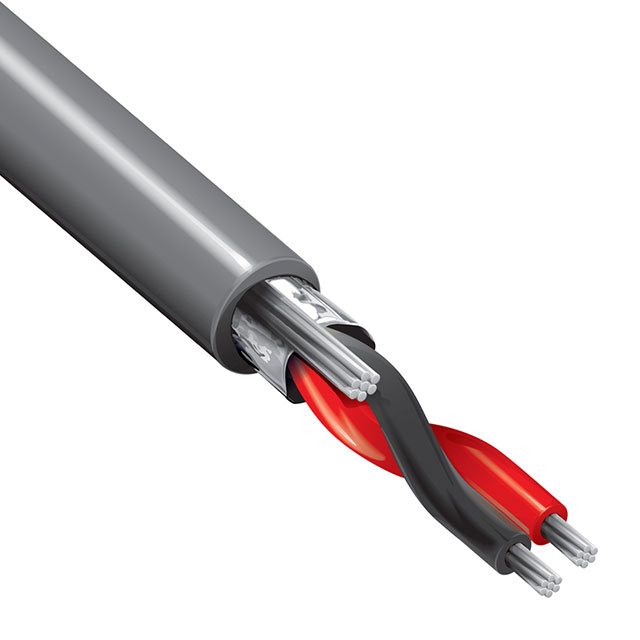

9501 Series

Catalog

CABLE 2COND 24AWG CHROME

Part	Shield Coverage	Shield Material	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Jacket (Insulation) Material	Ratings	Cable Type	Conductor Material	Features	Number of Conductors	Conductor Insulation	Shield Type	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length [x]	Length [x]

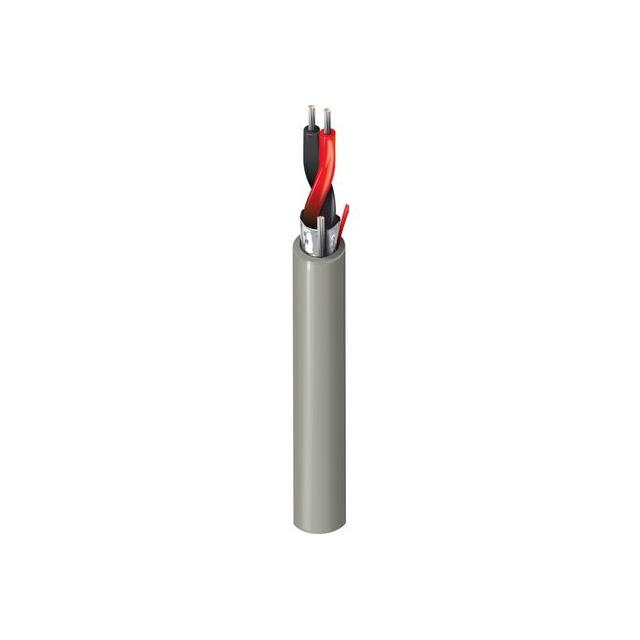

Belden Inc. 9501 06010000	100 %	Aluminum	Computer	0.813 mm	0.032 in	300 VDC	3048 m	10000 ft	80 °C	-30 ░C	24 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2464	Multi-Conductor	Copper Tinned	Drain Wire	2	Poly-Vinyl Chloride (PVC)	Foil	0.156 in	3.96 mm	7	32 AWG	Chrome
Belden Inc. 9501 0605000	100 %	Aluminum	Computer	0.813 mm	0.032 in	300 VDC			80 °C	-30 ░C	24 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2464	Multi-Conductor	Copper Tinned	Drain Wire	2	Poly-Vinyl Chloride (PVC)	Foil	0.156 in	3.96 mm	7	32 AWG	Chrome

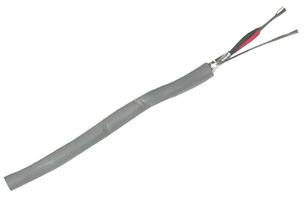

Belden Inc. 9501 060100	100 %	Aluminum	Computer	0.813 mm	0.032 in				80 °C	-30 ░C	24 AWG	Poly-Vinyl Chloride (PVC)		Multi-Conductor	Copper Tinned	Drain Wire	2	Poly-Vinyl Chloride (PVC)	Foil	0.156 in	3.96 mm	7	32 AWG	Chrome	100 ft	30.5 m
Belden Inc. 9501 060500	100 %	Aluminum	Computer	0.813 mm	0.032 in		152.4 m	500 ft	80 °C	-30 ░C	24 AWG	Poly-Vinyl Chloride (PVC)		Multi-Conductor	Copper Tinned	Drain Wire	2	Poly-Vinyl Chloride (PVC)	Foil	0.156 in	3.96 mm	7	32 AWG	Chrome

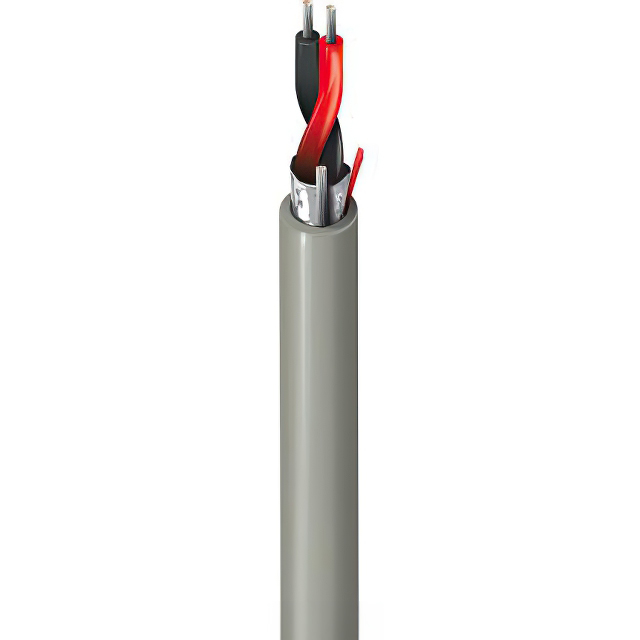

Belden Inc. 9501 0601000	100 %	Aluminum	Computer	0.813 mm	0.032 in	300 VDC	304.8 m	1000 ft	80 °C	-30 ░C	24 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2464	Multi-Conductor	Copper Tinned	Drain Wire	2	Poly-Vinyl Chloride (PVC)	Foil	0.156 in	3.96 mm	7	32 AWG	Chrome
