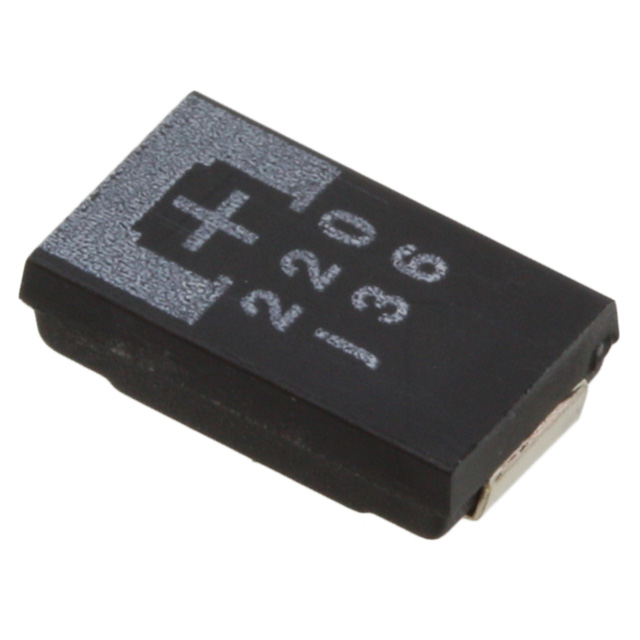

6TPE Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP TANT POLY 150UF 6.3V 2917

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Package / Case	Manufacturer Size Code	Features	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Mounting Type	Tolerance	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components 6TPE150M	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	2917 (7343 Metric)	D2E	General Purpose	150 µF	-55 C	105 ░C	6.3 VDC	Surface Mount	20 %	2000 Hrs	25 mOhm	0.079 in	2 mm
Panasonic Electronic Components 6TPE680M	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	2917 (7343 Metric)	D4	General Purpose	680 µF	-55 C	105 ░C	6.3 VDC	Surface Mount	20 %	2000 Hrs	25 mOhm			4 mm	0.157 in
Panasonic Electronic Components 6TPE120MAZB	0.11 "	3.5 mm	0.138 in	2.8 mm	Molded	1411	B2	General Purpose	120 µF	-55 C	105 ░C	6.3 VDC	Surface Mount	20 %	1000 Hrs	35 mOhm	0.079 in	2 mm			3528 Metric
Panasonic Electronic Components 6TPE220MAZB	0.11 "	3.5 mm	0.138 in	2.8 mm	Molded	1411	B2	General Purpose	220 µF	-55 C	105 ░C	6.3 VDC	Surface Mount	20 %	1000 Hrs	35 mOhm	0.079 in	2 mm			3528 Metric
Panasonic Electronic Components 6TPE150MAZB	0.11 "	3.5 mm	0.138 in	2.8 mm	Molded	1411	B2	General Purpose	150 µF	-55 C	105 ░C	6.3 VDC	Surface Mount	20 %	1000 Hrs	35 mOhm	0.079 in	2 mm			3528 Metric
Panasonic Electronic Components 6TPE330MAA	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	2917 (7343 Metric)	D4	General Purpose	330 µF	-55 C	105 ░C	6.3 VDC	Surface Mount	20 %	1000 Hrs	10 mOhm			4 mm	0.157 in
Panasonic Electronic Components 6TPE150MAPB	0.11 "	3.5 mm	0.138 in	2.8 mm	Molded	1411	B2	General Purpose	150 µF	-55 C	105 ░C	6.3 VDC	Surface Mount	20 %	1000 Hrs	25 mOhm	0.079 in	2 mm			3528 Metric
Panasonic Electronic Components 6TPE150MI	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	2917 (7343 Metric)	D2E	General Purpose	150 µF	-55 C	105 ░C	6.3 VDC	Surface Mount	20 %	2000 Hrs	18 mOhm	0.079 in	2 mm
Panasonic Electronic Components 6TPE680MI	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	2917 (7343 Metric)	D4	General Purpose	680 µF	-55 C	105 ░C	6.3 VDC	Surface Mount	20 %	2000 Hrs	18 mOhm			4 mm	0.157 in
Panasonic Electronic Components 6TPE330MAL	0.169 "	7.3 mm	0.287 "	4.3 mm	Molded	2917 (7343 Metric)	D3L	General Purpose	330 µF	-55 C	105 ░C	6.3 VDC	Surface Mount	20 %	1000 Hrs	25 mOhm						0.118 "	3 mm
