2301836 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

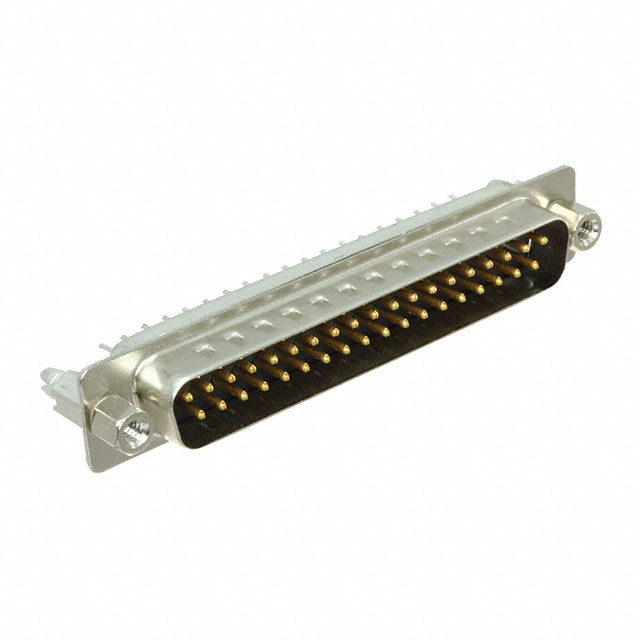

D SUBMINIATURE CONNECTOR, 37 CONTACT(S), MALE, SOLDER TERMINAL, PLUG
| Part | Connector Style | Termination | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Contact Finish | Color | Voltage Rating | Contact Type | Contact Material | Shell Material, Finish | Shell Size, Connector Layout | Mounting Type | Flange Feature | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Features | Dielectric Material | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | D-Sub | Solder | 15 µin | 0.38 µm | UL94 V-0 | Gold | Black | 250 VDC | Signal | Brass | Steel Tin-Nickel Plated | 4 (DC C) | Through Hole | Female Screwlock (4-40) Mating Side | 2 | 105 ░C | -55 °C | 1.5 A | Board Lock Grounding Indents | Polybutylene Terephthalate (PBT) Glass Filled | Male Pins Plug | 37 |
