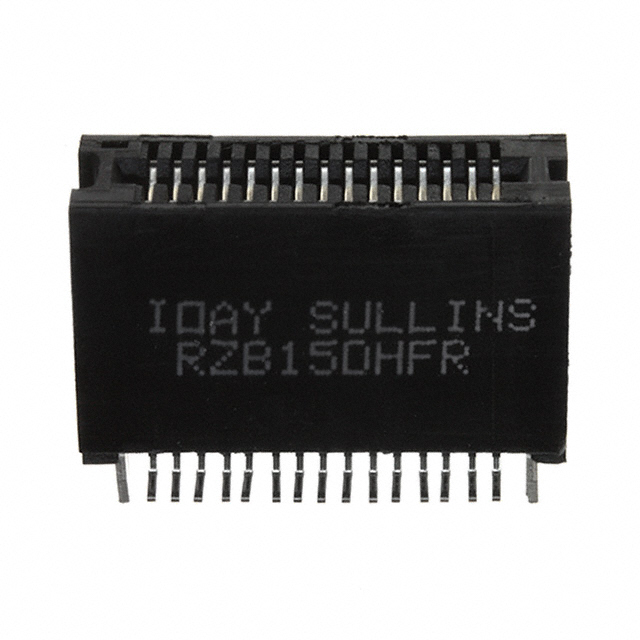

RZB15 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 30POS 0.050
| Part | Material - Insulation | Pitch | Pitch | Contact Type | Color | Card Thickness | Card Thickness | Contact Finish | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Number of Positions/Bay/Row | Mounting Type | Gender | Termination | Card Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Features | Read Out |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.05 in | 1.27 mm | Hairpin Bellows | Black | 1.57 mm | 0.062 in | Gold | 30 | -65 ░C | 125 °C | 2 | 15 | Board Edge Straddle Mount | Female | Solder | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Phosphor Bronze | Card Extender | Dual |
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.05 in | 1.27 mm | Hairpin Bellows | Black | 1.57 mm | 0.062 in | Gold | 30 | -65 ░C | 125 °C | 2 | 15 | Surface Mount | Female | Solder | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Phosphor Bronze | Board Lock | Dual |
