QS5 Series

Manufacturer: PULS, LP

Catalog

AC/DC DIN RAIL SUPPLY 24V 120W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Input Type	Efficiency	DC Voltage - Input (Min) [Min]	Applications	Voltage - Isolation	Current - Output (Max)	Approval Agency	Voltage - Output 1	Power (Watts)	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Features	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]
PULS, LP QS5.241-A1	117 mm	40 mm	4.88 in	4.61 "	1.57 "	124 mm	1	AC	92.7 %	88 V	Hazardous Locations ITE (Commercial)	500 V	5 A	ABS ATEX CSA DNV GL EAC IEC IECEx SEMI UL	24 V	120 W	264 VAC	85 VAC	Adjustable Output Load Sharing PFC	508 60950-1 61010-2-201 Class I Div 2 F47	70 °C	-10 °C	360 V

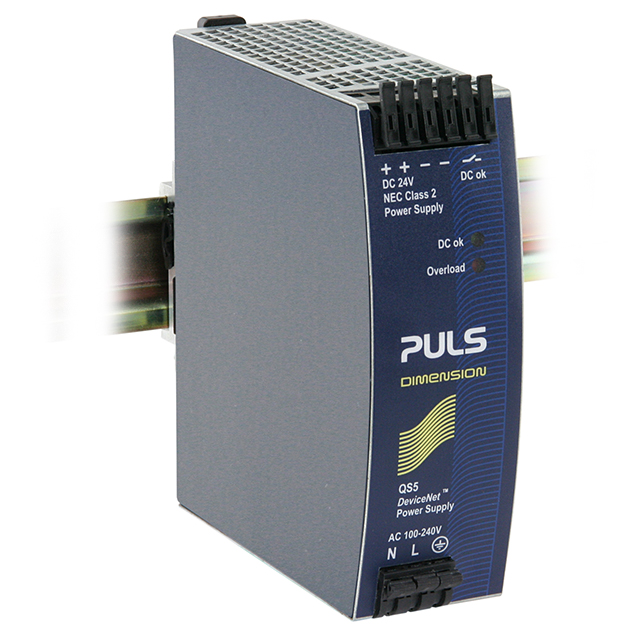

PULS, LP QS5.DNET	117 mm	40 mm	4.88 in	4.61 "	1.57 "	124 mm	1	AC	92 %		Hazardous Locations ITE (Commercial)	500 V		ABS CSA DNV GL EAC IEC NEC SEMI UL	24 V	91 W	264 VAC	85 VAC	Adjustable Output Load Sharing PFC	508 60950-1 61010-2-201 Class 2 Class I Div 2 F47	70 °C	-10 °C		3.8 A

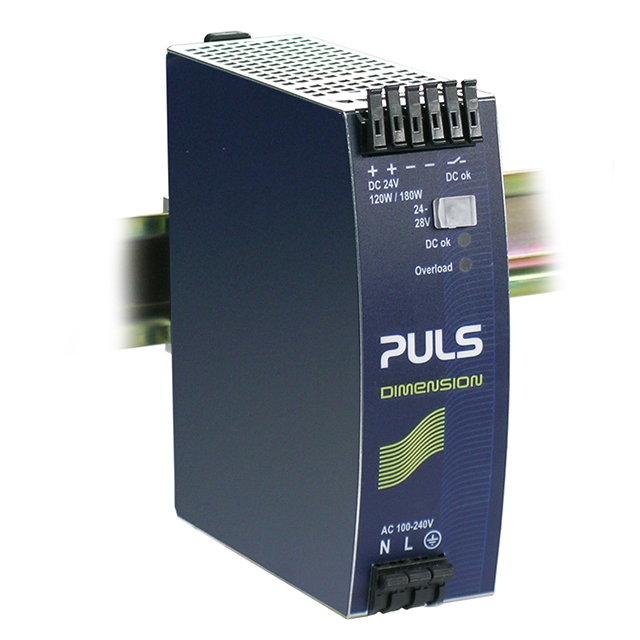

PULS, LP QS5.241	117 mm	40 mm	4.88 in	4.61 "	1.57 "	124 mm	1	AC	92.7 %		Hazardous Locations ITE (Commercial)	500 V	5 A	ABS CSA DNV GL EAC IEC SEMI UL	24 V	120 W	264 VAC	85 VAC	Adjustable Output Load Sharing PFC	508 60950-1 61010-2-201 Class I Div 2 F47	70 °C	-10 °C
